Parts
9-26
Part 1602966
−
05
E
2015 Nordson Corporation
Powder Hose and Air T
ubing Bulkhead Fittings

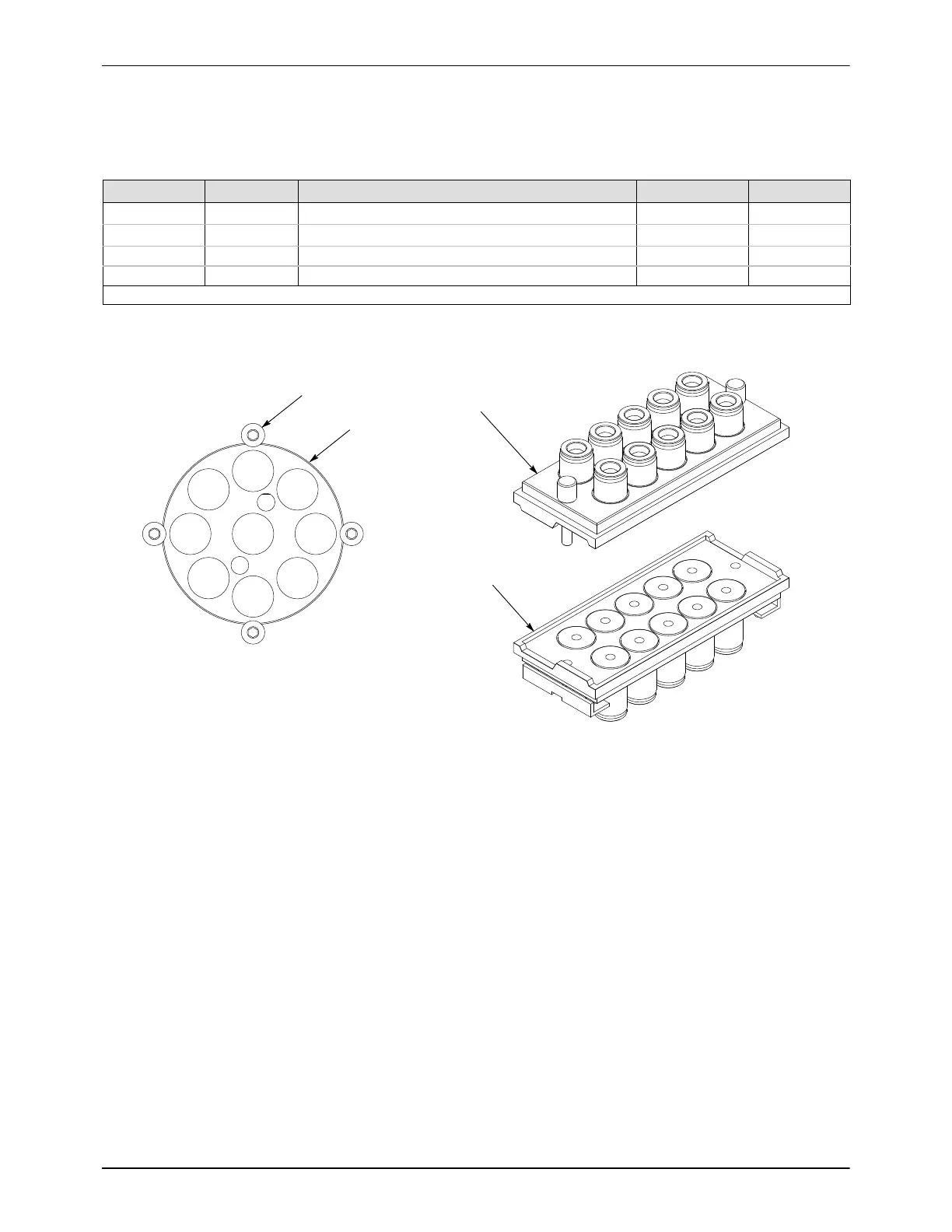

See Figure 9-19.
Item
Part
Description
Quantity
Note
1
249461
Socket, female, 8 mm, 10 tube, pneumatic
1
2
249455
Plug, male, 8mm, 10 tube, pneumatic
1
3
1
100200
Plate, powder hose bulkhead, PFC
AR
4
1
100047
Screw
, button head, socket, M6 x 12, zinc
AR
AR:
As Required
2
1
3
4
Figure 9-19
Powder Hose and Pump Air Bulkhead Fittings
117
119
