Description
2-3
Part 1602966−05
E 2015 Nordson Corporation
Optional Component List
Optional components include:
S Ultrasonic sieve screens
S HDLV virgin powder bulk feed system
1
7
5
6
11
2
10
8
9
12
3
4
13
14
15

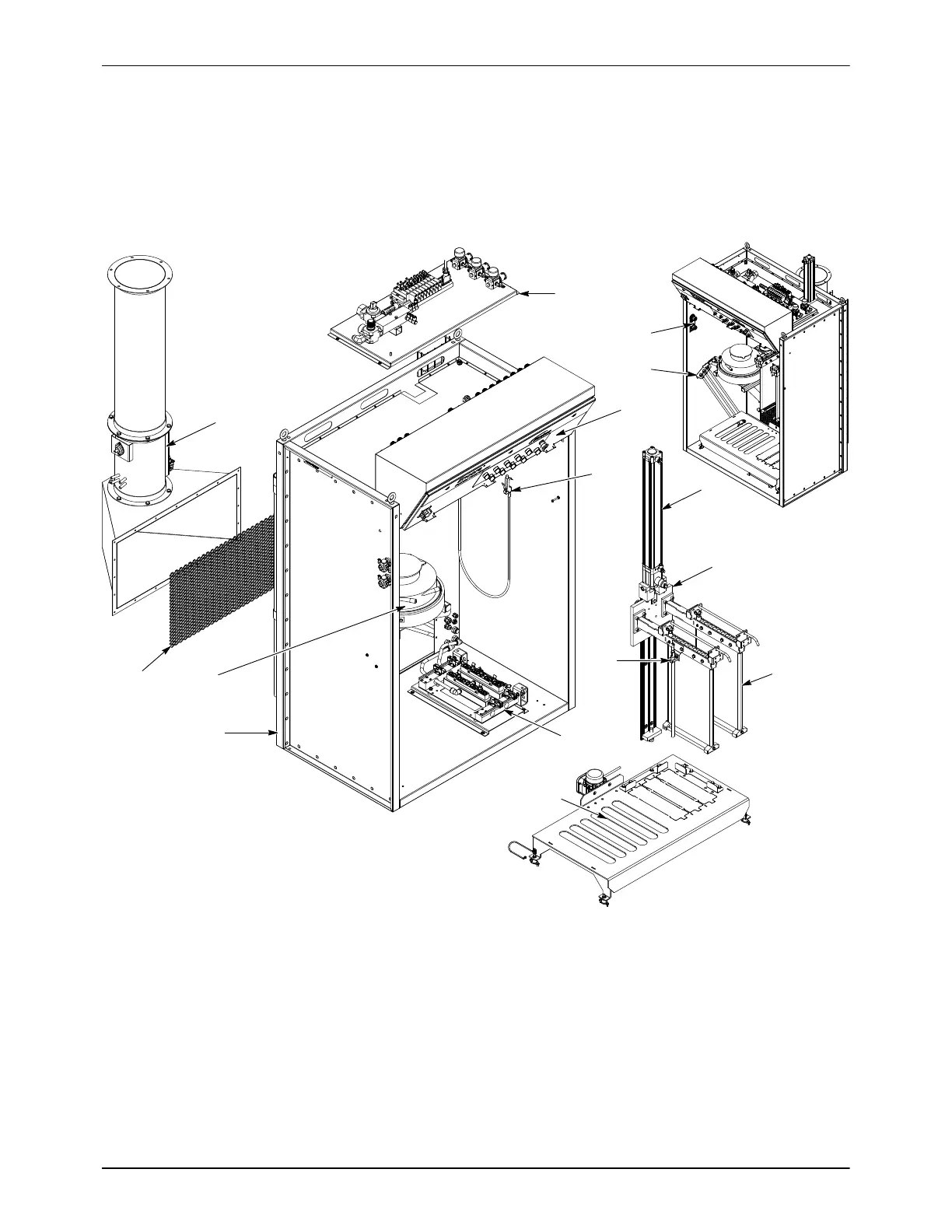

Figure 2-1 Major Components (Typical)
1. Enclosure
2. Sieve
3. Duct barrier
4. Damper assembly
5. Pneumatic panel
6. Control panel
7. Lift cylinder
8. Lift assembly
9. Lance assembly
10. Level sensor
11. Purge manifold
12. Vibratory table
13. Blow-off gun
14. Fluidizing air regulators
15. Purge ports − transfer hoses
Note: Refer to Section 4, Operation, for a description of the feed center controls.
