Nordson Encore - Repair; Quad Ring Replacement

Repair
8-1
Part 1602966−05
E 2015 Nordson Corporation
Section 8
Repair
WARNING: Allow only qualified personnel to perform the following tasks.
Follow the safety instructions in this document and all other related
documentation.
Purge Manifold Assembly Repairs
Quad Ring Replacement
When replacing the purge manifold quad rings, make sure the lower portion
of the ring is pressed into the pocket formed by the manifold block and the
seal retainer plate. Use your fingernail or a tool to work the ring into the
pocket. Be careful not to damage the rings when installing them.
1
2
3
1
2
3

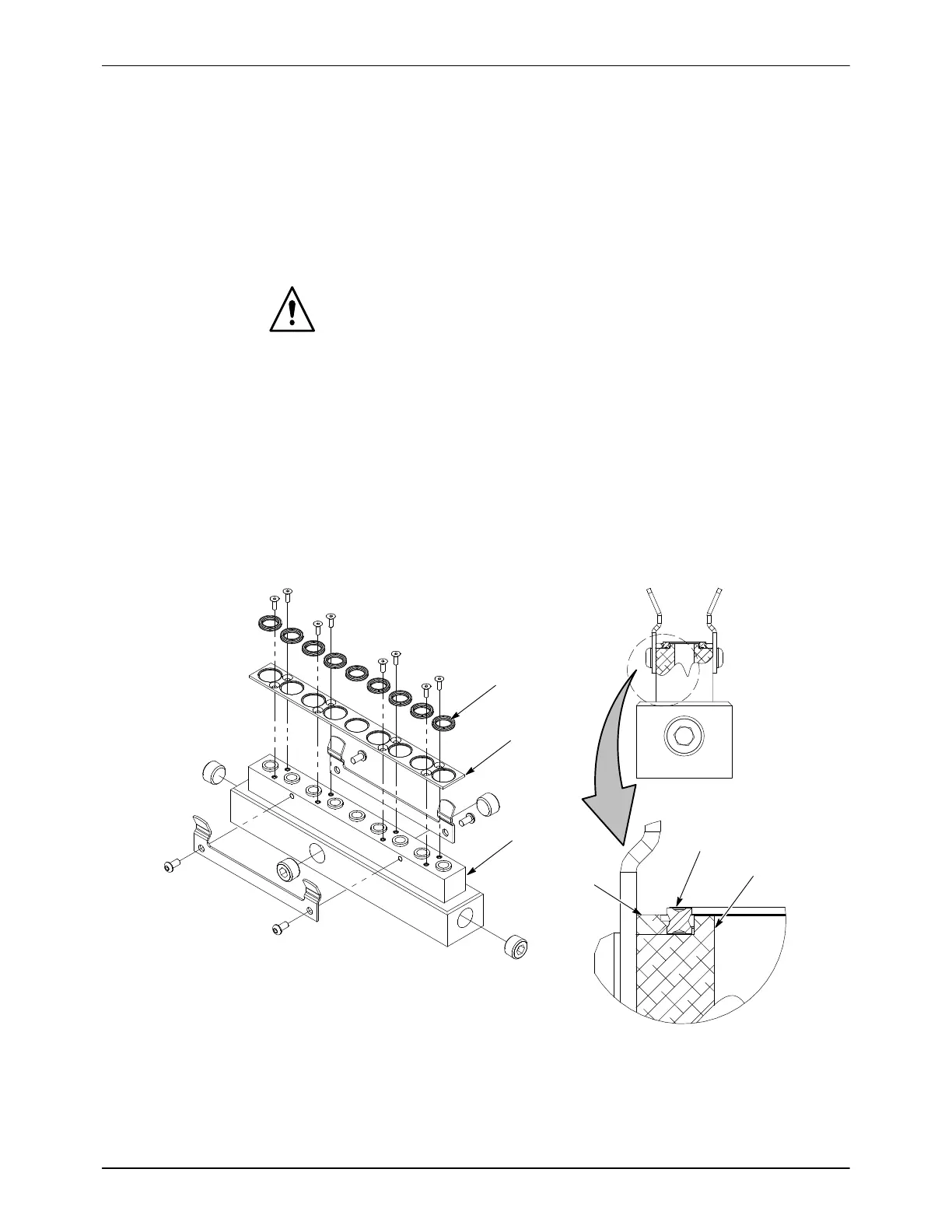

Figure 8-3 Purge Manifold Quad Ring Replacement
1. Quad ring 2. Seal retainer plate 3. Manifold block
