Nordson Encore Customer Product Manual

Description
2-4
Part 1602966−05
E 2015 Nordson Corporation
Feed Center Control Panel
2
6
7 8 9 10
11
3
4
1
5

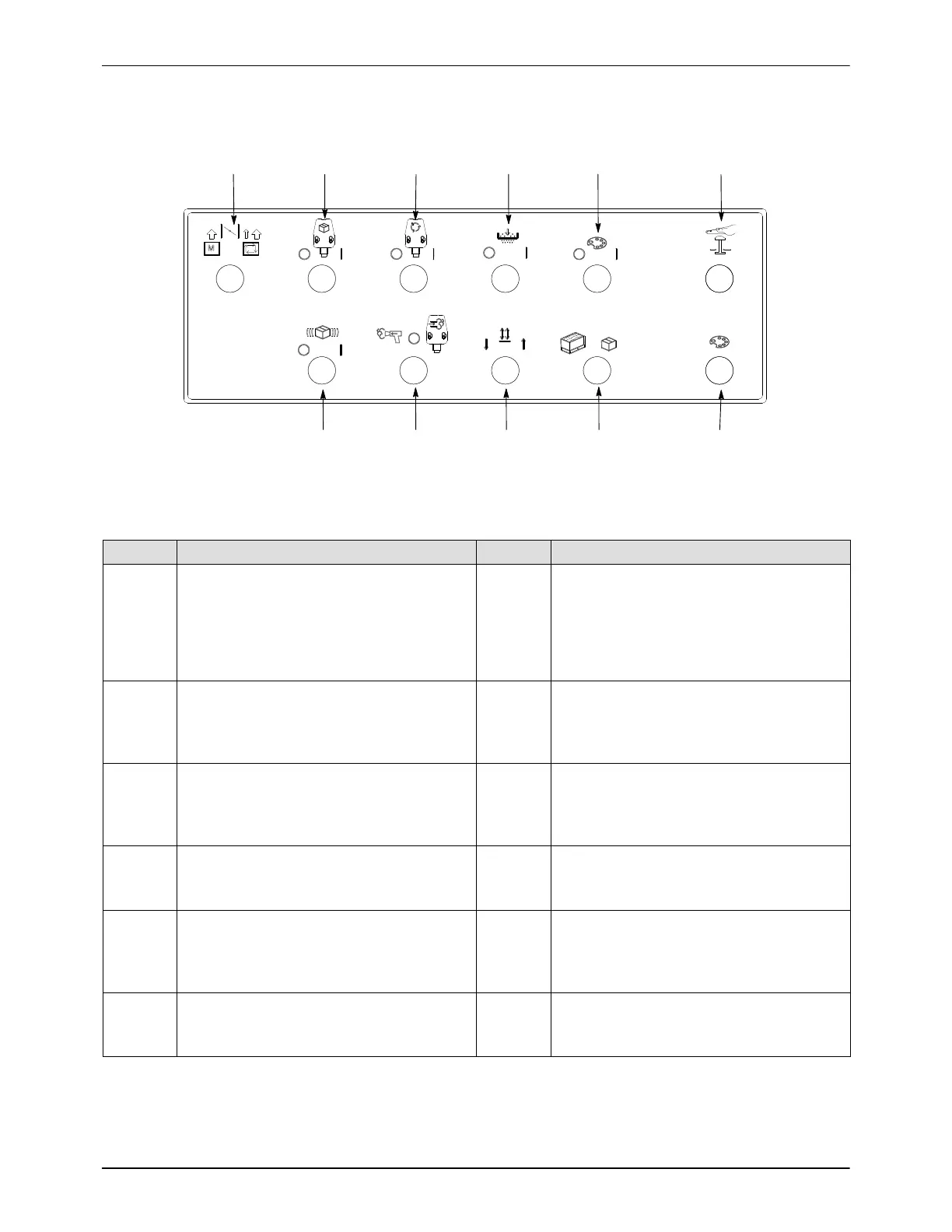

Figure 2-2 Control Panel Functions
Table 2-1 Feed Center Controls
Item Description Item Description
1 Damper Selection
Left: Manual Mode (open for high flow)
Right: Auto Mode (damper is set to low
flow until a color change is started.
Then the damper is automatically
opened for high flow.)
7 Vibratory Table Motor Control
Left: Off
Right: On
2 Bulk Feed Pump Control
Left: Off
Right: On
8 Purge Selection
Left: Internal Gun Purge
Center: Off
Right: Pump Purge
3 Reclaim Pump Control
Left: Off
Right: On
9 Lance Position Control
Left: Down
Center: Neutral (stop)
Right: Up
4 Sieve Control
Left: Off
Right: On
10 Powder Source Selection
Left: Hopper
Right: Box
5 Color Change Enable
Left: Off
Right: On
11 Color Change Indicator (Green)
Off: Disable
Blinking: In cycle
On: Complete
6 Emergency Stop
Pressed In: Stop
Rotate and Pull Out: Start
