Installation
3-5
Part 1602966−05
E 2015 Nordson Corporation
3-Phase Power
From System
Panel
E-Stop to
System Panel
Control Signals To and From
System Panel
Air Supply
Flow and Atomizing Air Tubing
From Controller to Pumps
Powder Hoses
to Guns

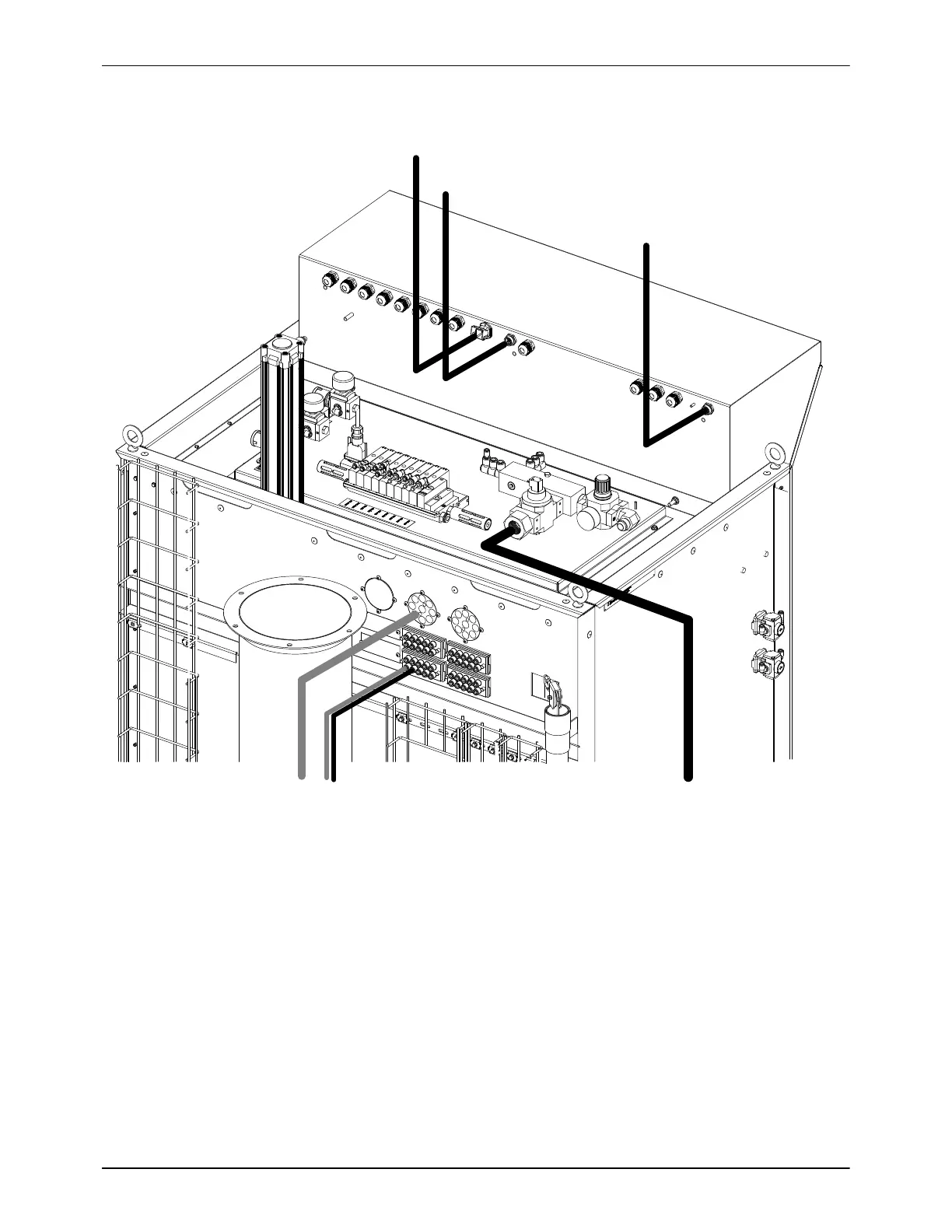

Figure 3-14 Electrical and Pneumatic Connections to Feed Center
Powder Pump Installation and Connections
Pump Installation
See Figures 3-15 and 3-16. Typically, the pumps are installed at the factory.
If not, install the powder pumps into the lance ports, with all the pump air
fittings pointing in the same direction. Install the retaining rods into the
brackets to lock the pumps in place. The pump connections are application
specific; refer to your system drawings for the correct connections.
