Installation
3-7
Part 160296605
E 2015 Nordson Corporation
Lance Fluidizing Air Connection
See Figure 3-16. If not done, connect 6-mm blue air tubing (9) from the
fluidizing air regulator on the side wall of the feed center through the
multi-tube connector and connect the tubing to the fitting on the lance, as
shown.
6
8
9
3
1
2
5
7
4
10

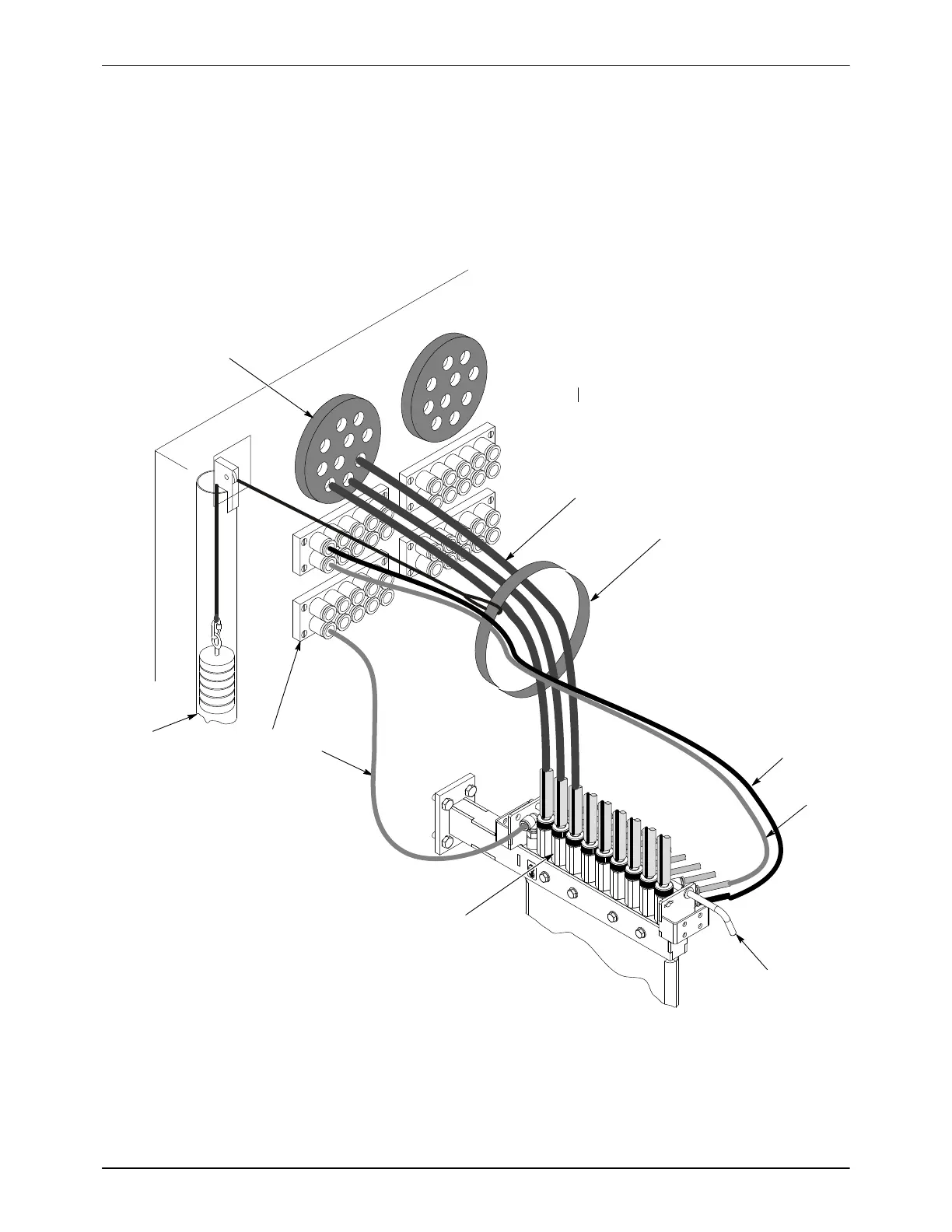

Figure 3-16 Pump, Powder Feed Hose, and Air Tubing Connections to Lance Assembly
1. Pumps
2. Retaining rod
3. Flow-rate air tubing (black)
4. Atomizing ar tubing (blue)
5. Powder feed hose
6. Counterweight assembly
7. Powder hose grommet
8. Air multi-tube connector
9. Fluidizing air
10. Velcro strap
