Vibrasonic System Parts
See Figure 10-4.
Item Part Description Quantity Note
— 1103009 System, Vibrasonic, with interface card 1
1 - - - - - -
S Box, control, Vibrasonic
1
2 - - - - - -
S Cable, 4-meter, with support bracket
1
3 - - - - - -
S Cable, transducer
1
4 - - - - - -
S Transducer, Vibrasonic
1
5 1014565
S Screen, Vibrasonic, 80 mesh (178 micron)
1 A
5 1090890
S Screen, Vibrasonic, 100 mesh (140 micron)
A
6 1014563
SS Gasket
1
7 - - - - - -
S Screw, cap, socket head, M8
1
8 1104478 Clip, ground, sieve screen 1
9 1103290 Plug, sieve 1
NOTE A: Other mesh sizes are available. Contact your Nordson representative for more information.
5
4
3
7
1
2
6
8
9

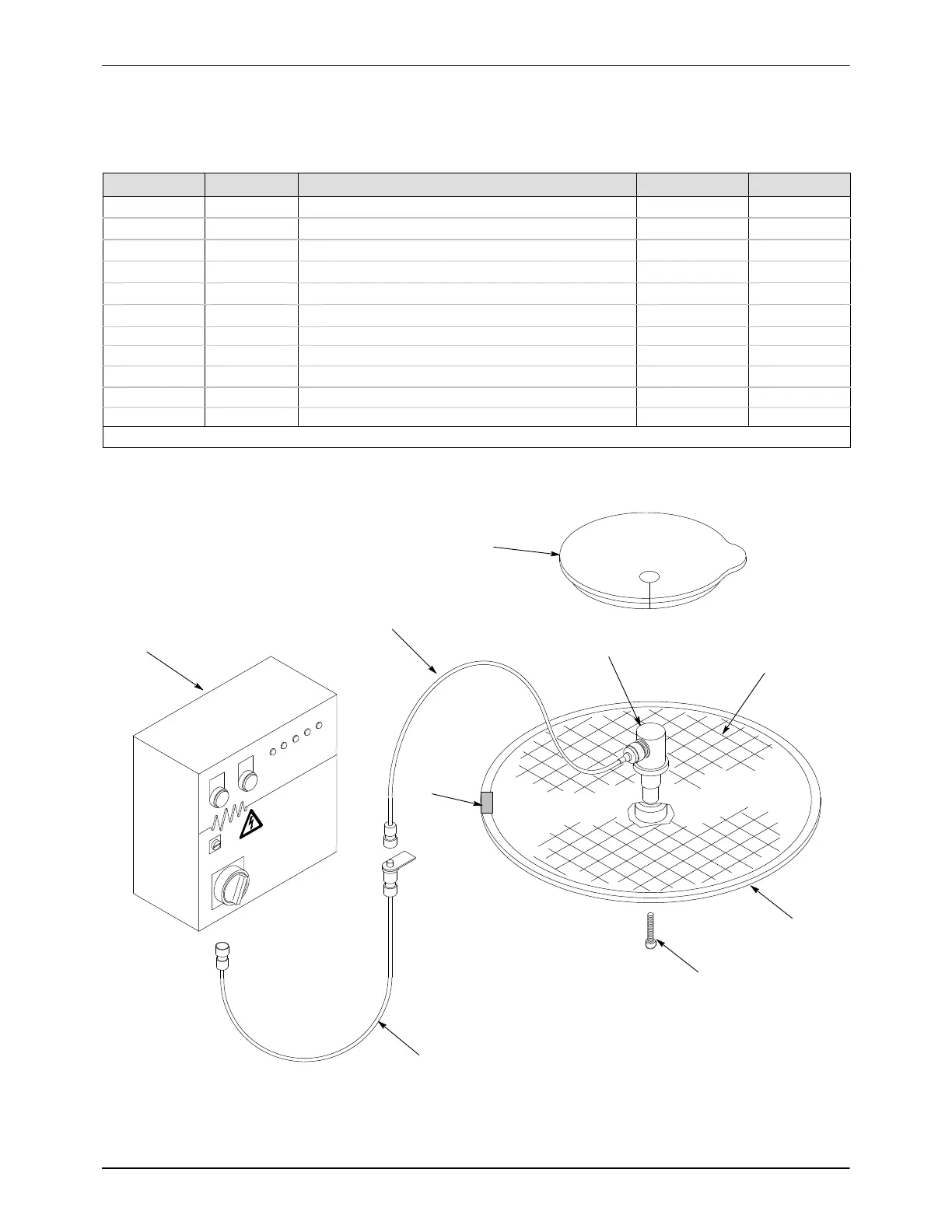

Figure 10-4 Vibrasonic System Parts
