Optional HD Tube Assembly
The optional Prodigy/ Encore HD siphon tube provides powder to a Prodigy
or Encore HD manual gun. The siphon tube bracket (3) is secured to the
lance arm with the existing lance fasteners. The quick-disconnect fitting on
the top of the siphon tube (1) accommodates 8-mm tubing.
NOTE: This option can only be used with fluidized hoppers.
1
3
2

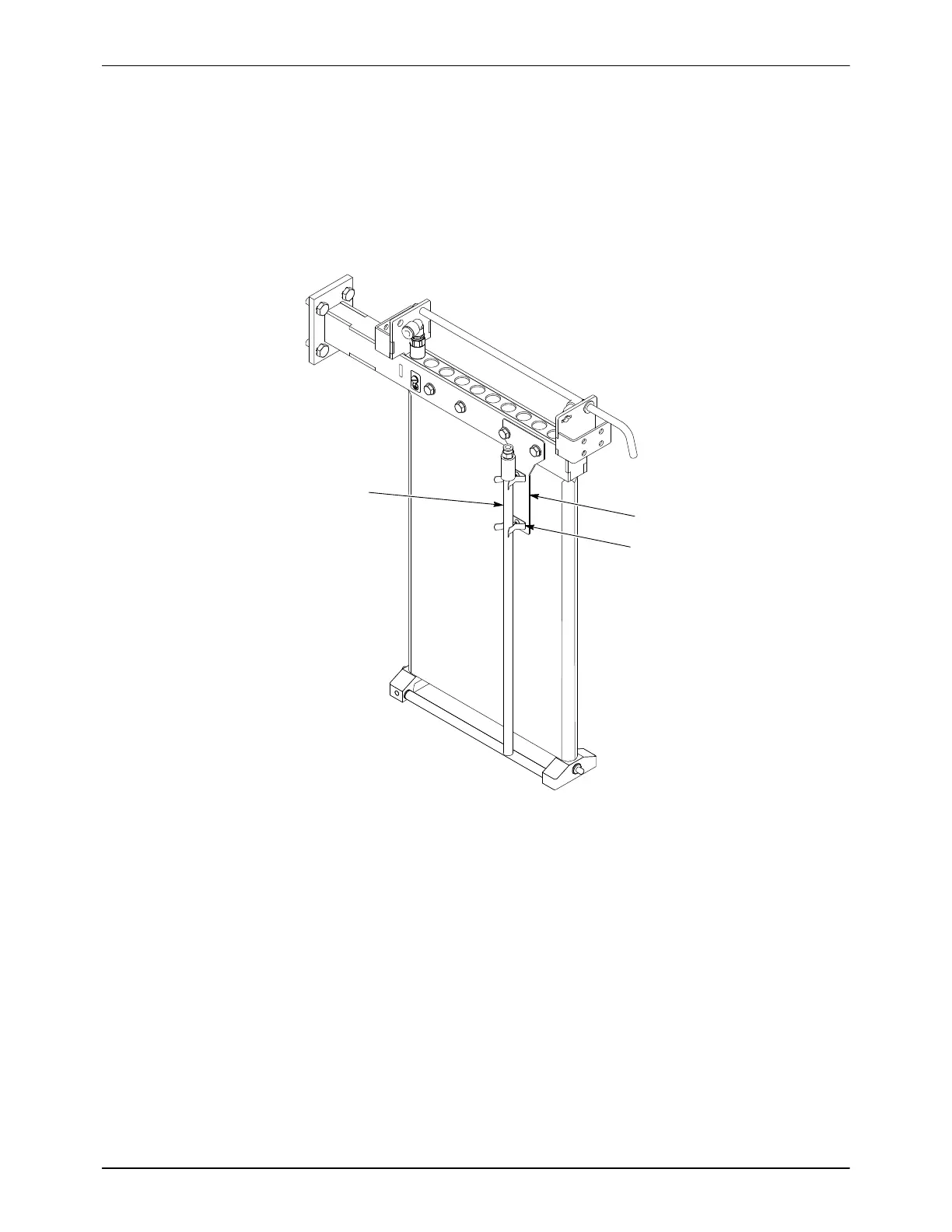

Figure 2-10 Siphon Tube Assembly (Optional)
1. Siphon tube 2. Spring clips 3. Bracket
