Repair
8-2
Part 1602966−05
E 2015 Nordson Corporation
Latch Pawl Replacement
See Figure 8-1. To remove a latch pawl from a latch:
1. Raise the lance assembly all the way up.
2. Press the E-Stop button on the feed center control panel to shut off the
power and air. This relieves the air pressure and mechanically locks the
lift cylinder in position.
3. Remove the hopper/box table from the enclosure:
a. Remove the nuts (2) from the isolation mounts (1).
b. If using a vibrator motor, loosen the motor cable cord grip and pull
the cable slack through the grip.
c. Lift the table up off the mounts and move it enough to gain access to
the purge manifold assembly.
4
3
Screw inside recess
2
1

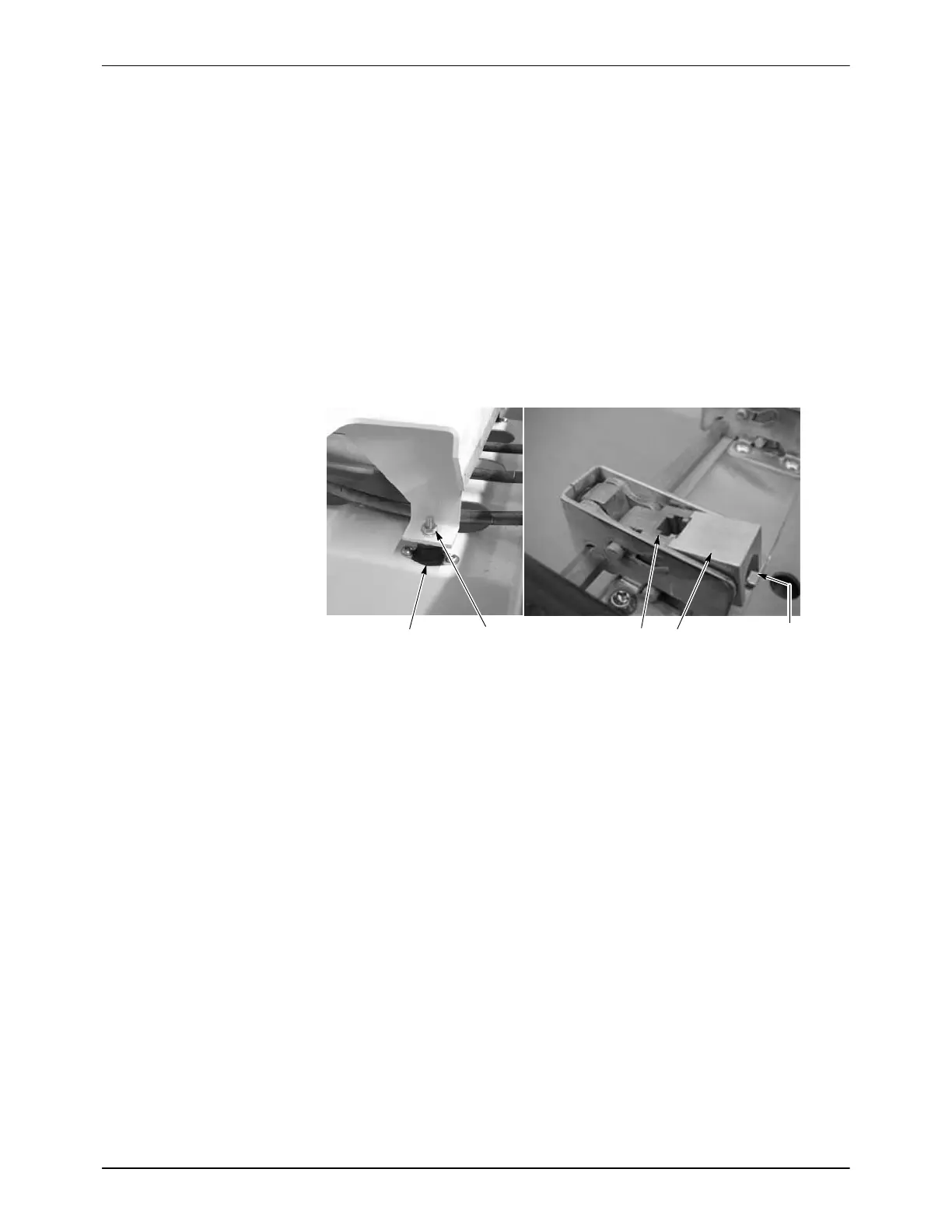

Figure 8-1 Pawl Replacement
1. Isolation mount
2. Nut
3. Pawl mount
4. Pawl
4. Remove the Philips-head screw securing the pawl (4) to the pawl
mount (3).
5. Position the new pawl on the latch with the top surface of the pawl flush
with the top surface of the latch lever.
6. Secure the pawl to the latch with the screw. Tighten the screw securely.
7. Re-install the hopper/box table on the isolation mounts, and then, if
used, pull the vibrator motor cable back into the control cabinet. Leave
enough slack in the cable to avoid any strain on it, then tighten the cord
grip.
To Next Page
