Setup
4-4
Part 1602966−05
E 2015 Nordson Corporation
Level Sensor Programming
The level sensor probe tells the feed center PLC what the powder level is in
the powder source. Follow these procedures to program the level sensor
probe to recognize the level of powder in the feed source.
There are two different kinds of sensor probes, identified by the number of
programming buttons on the probe.
Turn on the afterfilter exhaust fan and thoroughly fluidize the powder in the
hopper or box before you program the level sensor probe.
One Button Level Sensor Probe Programming
Programming
Button
Green
Yellow
Red

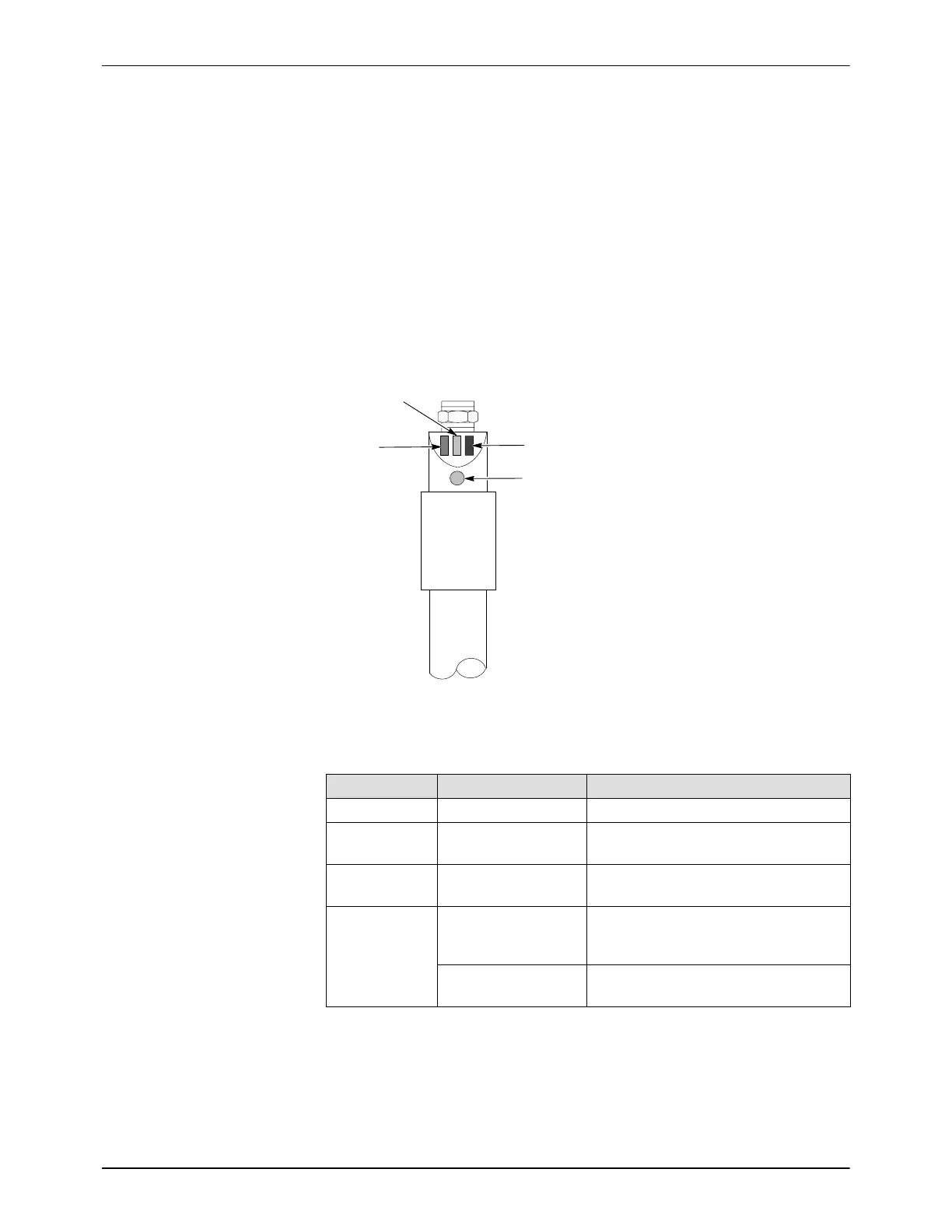

Figure 4-27 Programming the One Button Level Sensor Probe
LED Functions
LED Color Status Meaning
Green Lit continuously Ready for operation (power is on)
Yellow Lit continuously Output has switched (powder is
detected; full condition)
Yellow and
Red
Flashing quickly Short circuit of the switching output
Red
Lit temporarily Normal function check; level
sensor probe is approaching the
full state
Lit continuously Level sensor probe is dirty or out of
adjustment.
To Next Page
