Repair
8-19
Part 1602966−05
E 2015 Nordson Corporation
Step 1 Step 2 − 3
Step 4
Step 4

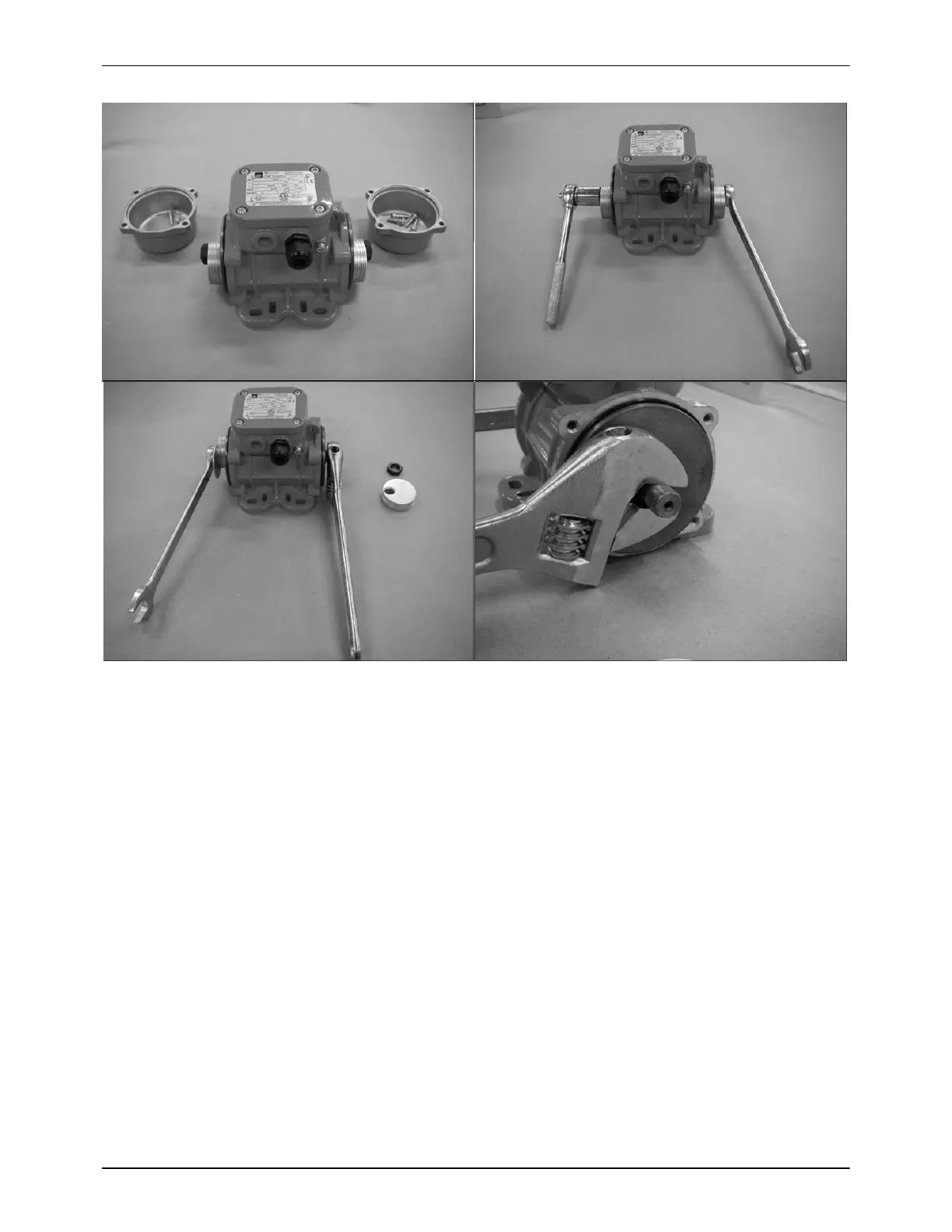

Figure 8-15 Vibrator Weight Adjustment, 50Hz, Steps 1−4
See Figure 8 -16 for steps 5 - 8 when replacing or retrofitting a 50Hz
vibratory table motor for the Encore Powder Feed Center.
5. Install the weight blades that were removed. Turn (1) weight blade on
each shaft end to the opposite position as shown.
6. Make sure that the weight blades are in the same configuration at both
ends of the motor. ONE weight blade must be rotated at each end.
Tighten both shaft nuts securely to 74-78 ft-lbs.
7. Install the end caps with the flat area on the cap aligned with the flat
area on the mounting flange.
8. Tighten the screws to 4 ft-lbs.
To Next Page
