Description
2-6
Part 1602966−05
E 2015 Nordson Corporation
Lift Assembly (contd)
When the cylinder moves the lance up, the lance down circuit is vented,
allowing the lance up circuit air to push the piston up. When the cylinder
moves the lance down, the lance up circuit is vented, allowing the lance
down circuit air to push the piston down.
The flow control valves installed in the cylinder air ports control the travel
speed of the piston rod. Three proximity sensors mounted on the cylinder
sense when the cylinder piston is in the hopper, box empty, or purge
positions.
1
2
1
2
2
1
2
1
6mm
6mm
6mm
LANCE DOWN
LANCE UP
LIFT CYLINDER
CYLINDER LOCKED WHEN VENTED
LANCE DOWN WHEN VENTED
LANCE UP WHEN VENTED
NINE-STATION CONTROL MANIFOLD
FLOW CONTROL
VALVE
REGULATORS
FLOW CONTROL
VALVE
1
8
2
3
6
4
1
7
5
2
345
678
91

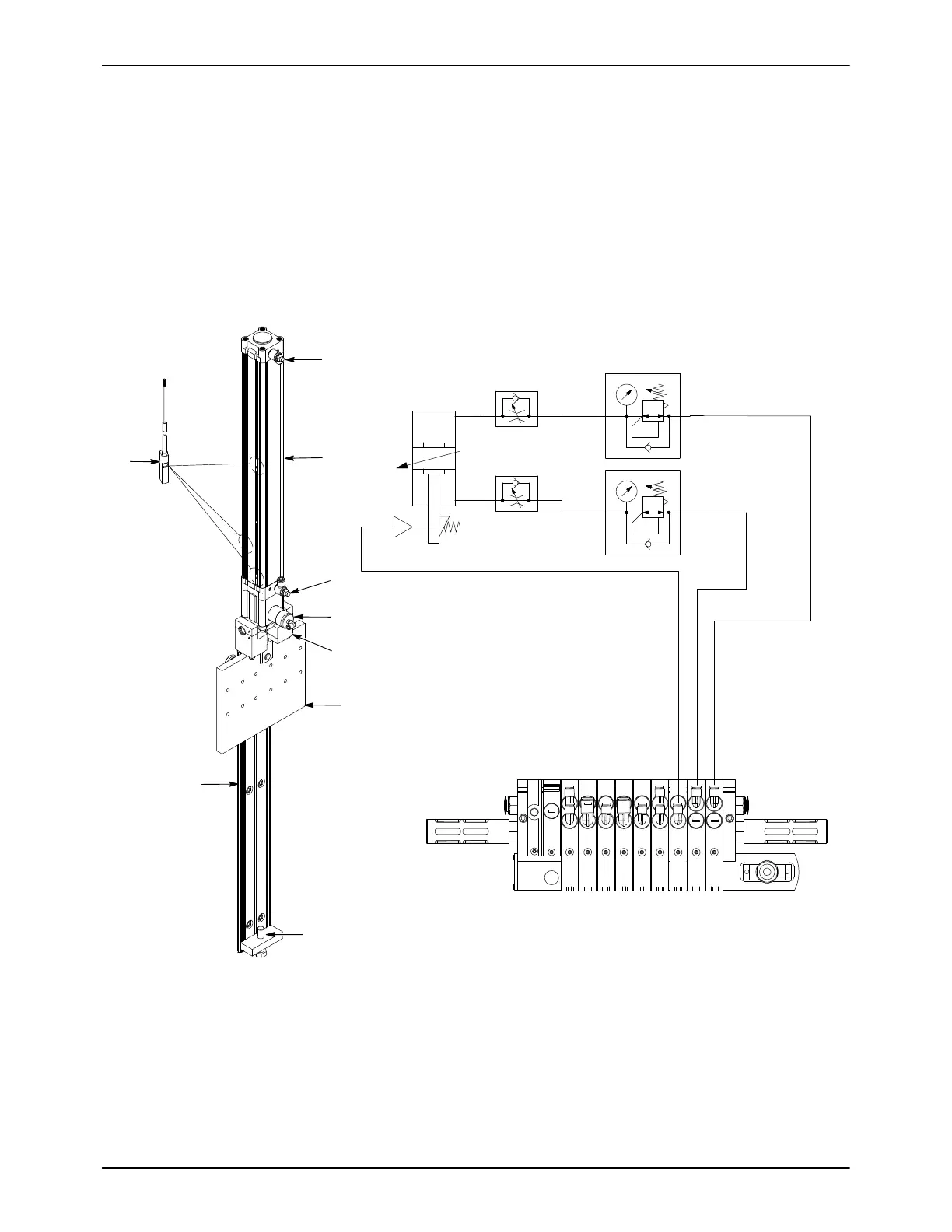

Figure 2-4 Lance Lift Assembly
1. Flow control valves
2. Proximity sensors
3. Lift cylinder
4. Locking mechanism
5. Support block
6. Lift plate with wheels
7. Carriage stop
8. Linear V-guide
