Repair
8-6
Part 1602966−05
E 2015 Nordson Corporation
Clamping Cylinder Replacement (contd)
Extended
Retracted
1
2
3
4
6
7
8
9
1
3
2
3
Both pins slightly
loose in fully
retracted position
5
5

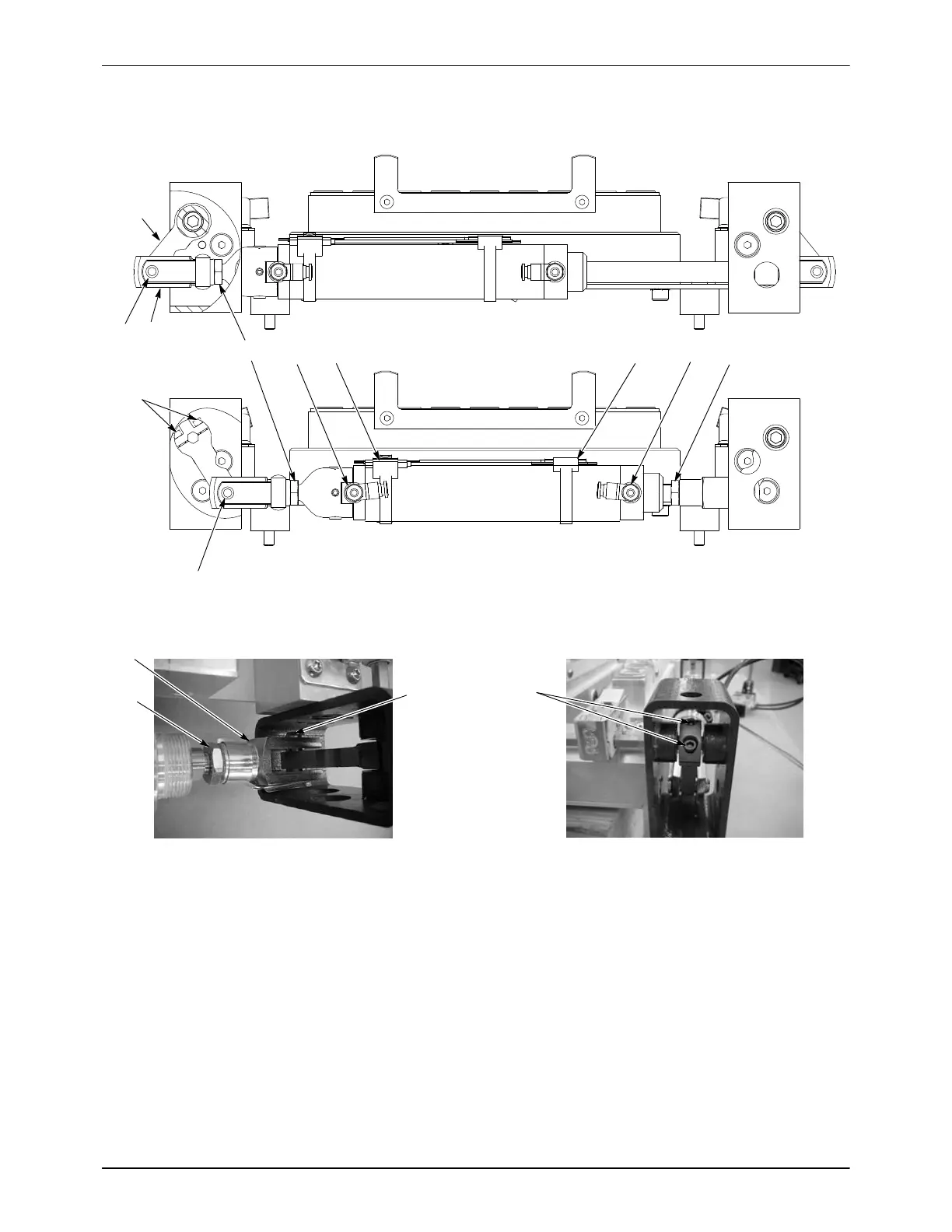

Figure 8-5 Clamping Cylinder Replacement
1. Clevises
2. Clevis pins
3. Jam nuts
4. Levers
5. Lever clamp screws
6. Retract proximity switch (LS404)
7. Extend flow control valve
8. Extend proximity switch
(LS403)
9. Retract flow control
14. Connect the air tubing to the appropriate cylinder flow control valves.
Refer to the pneumatic schematic foldout in this manual.
15. Turn on the feed center air supply.
16. Lower the lance onto the purge manifold and set the purge air pressure
to zero. Refer to Air Pressure Settings in Section 3, Setup for the
location of the purge air pressure regulator.
To Next Page
