6-14 Service Manual
XZAC4219-05
Positioning the assy on the horizontal magnetic/MICR structure
• MACHINE STATUS
Printer switched off and without casing.
• CONDITIONS TO BE CHECKED
Co-planarity between the closing flap of the magnetic unit and the paper conveyor of the slot.
• PROCEDURE
– Position the slots (1) in the half cut-outs (2) present on the sides of the machine.
– Draw up the lock-screws slightly (3).
– Push up the structure of the magnetic unit until it is in contact both to the right and left (against the paper
conveyor).
– Torque the lock-screws to 8 Kgcm.

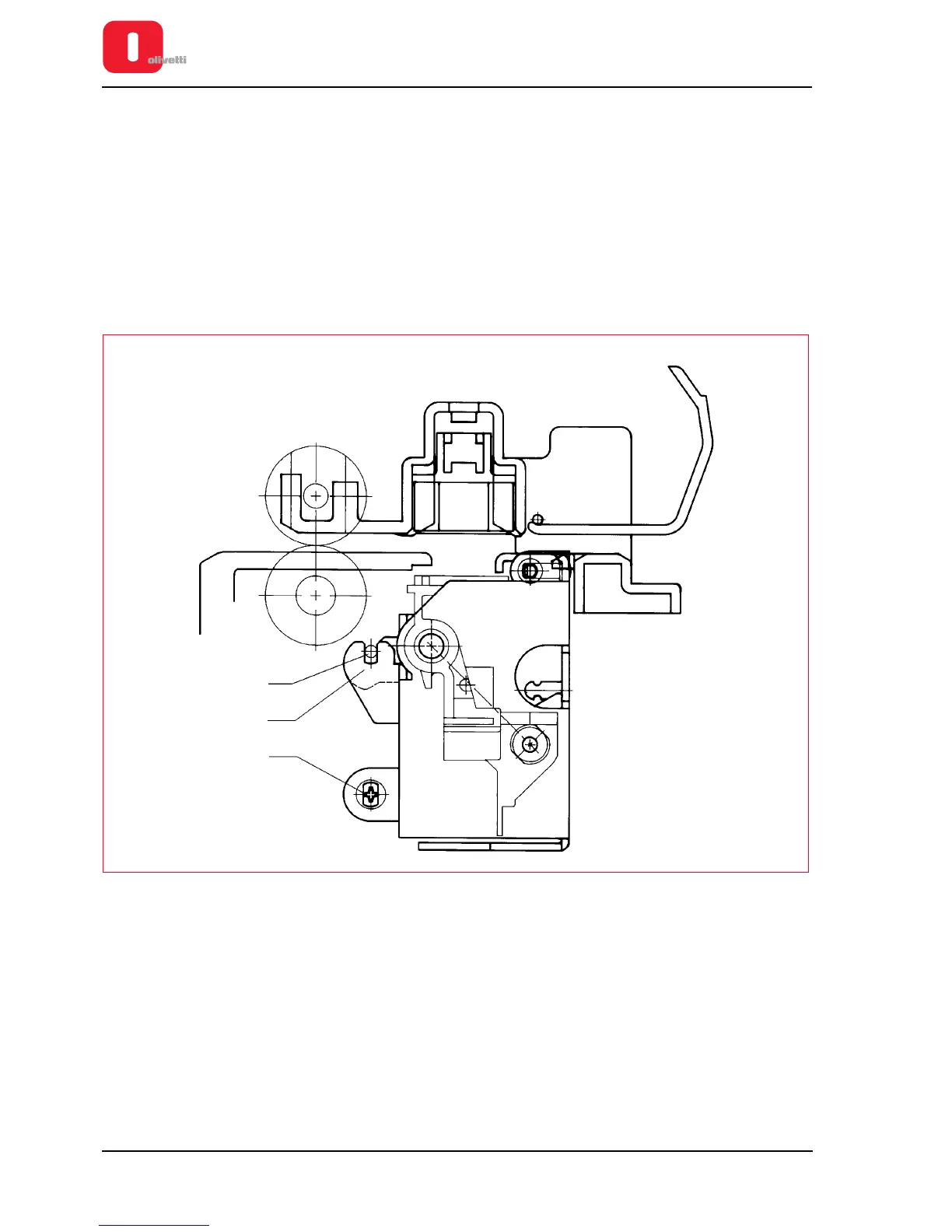

Figure 6 - 13 Positioning the assy on the horizontal magnetic/MICR structure
