1-4 Service Manual
XZAC4219-05

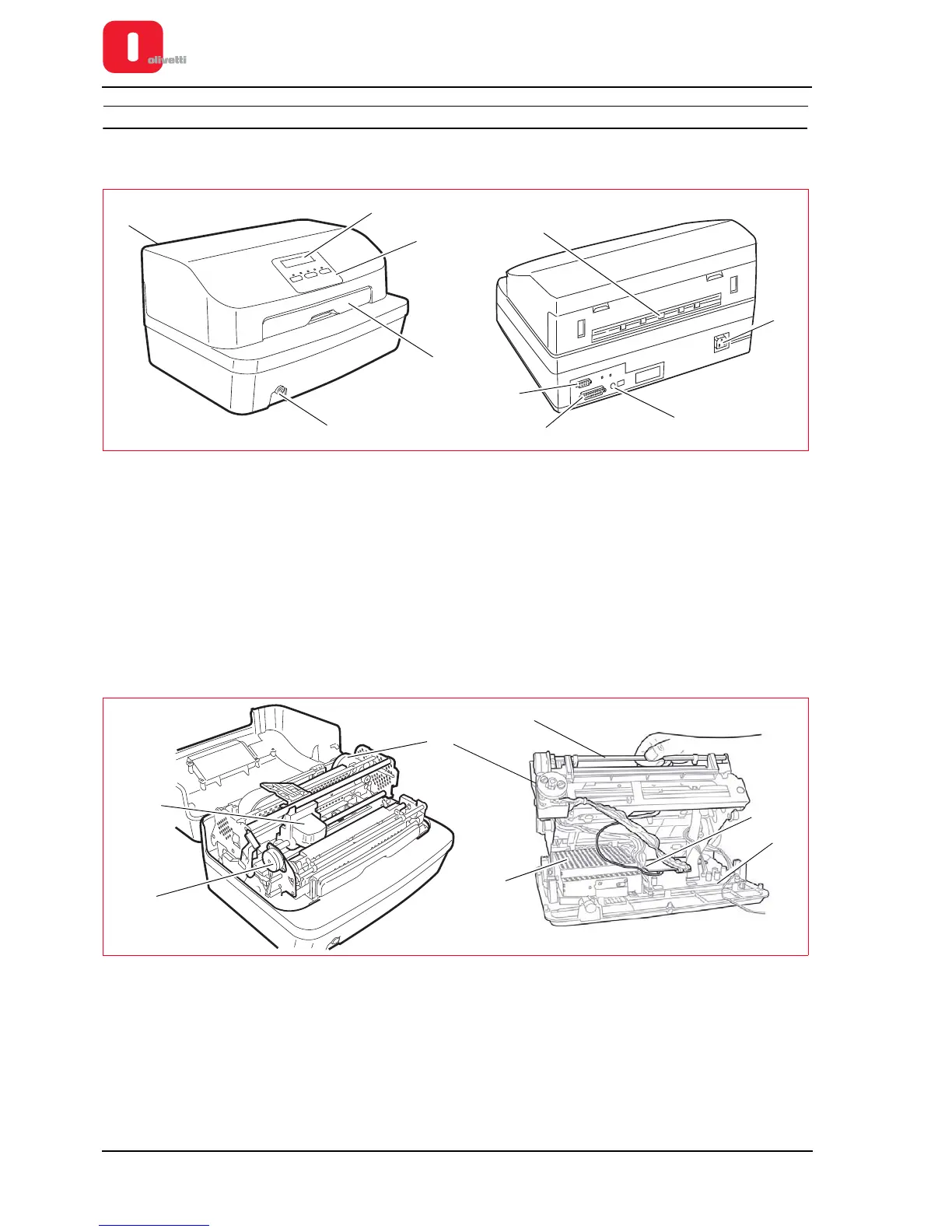

LOCATION OF MAIN COMPONENTS
The following figure illustrates the main external components of the printer.
Figure 1 - 2 Location of main external components
The following figure illustrates the main internal components of the printer.
Figure 1 - 3 Position of main internal components
1 Cover 6 USB interface connector
2 Display 7 Parallel interface connector
3 Console 8 Standard serial interface connector
4 Rear slot 9 Front slot
5 Mains connector cable 10 ON/OFF switch
1 Printhead 5 Motherboard
2 Carriage transport motor 6 Power supply unit
3 Upper part of mechanical assembly 7 Services motor
4 Magnetic options board
1
2
3
4
5
6
7
8
9
10
1
2
3
4
5
6
7
View without casing
