XZAC4219-05 Service Manual
1-17
ALIPR2 POWER SUPPLY
On the power unit controller board a fuse is provided to protect the printer from mains peaks and high charges.

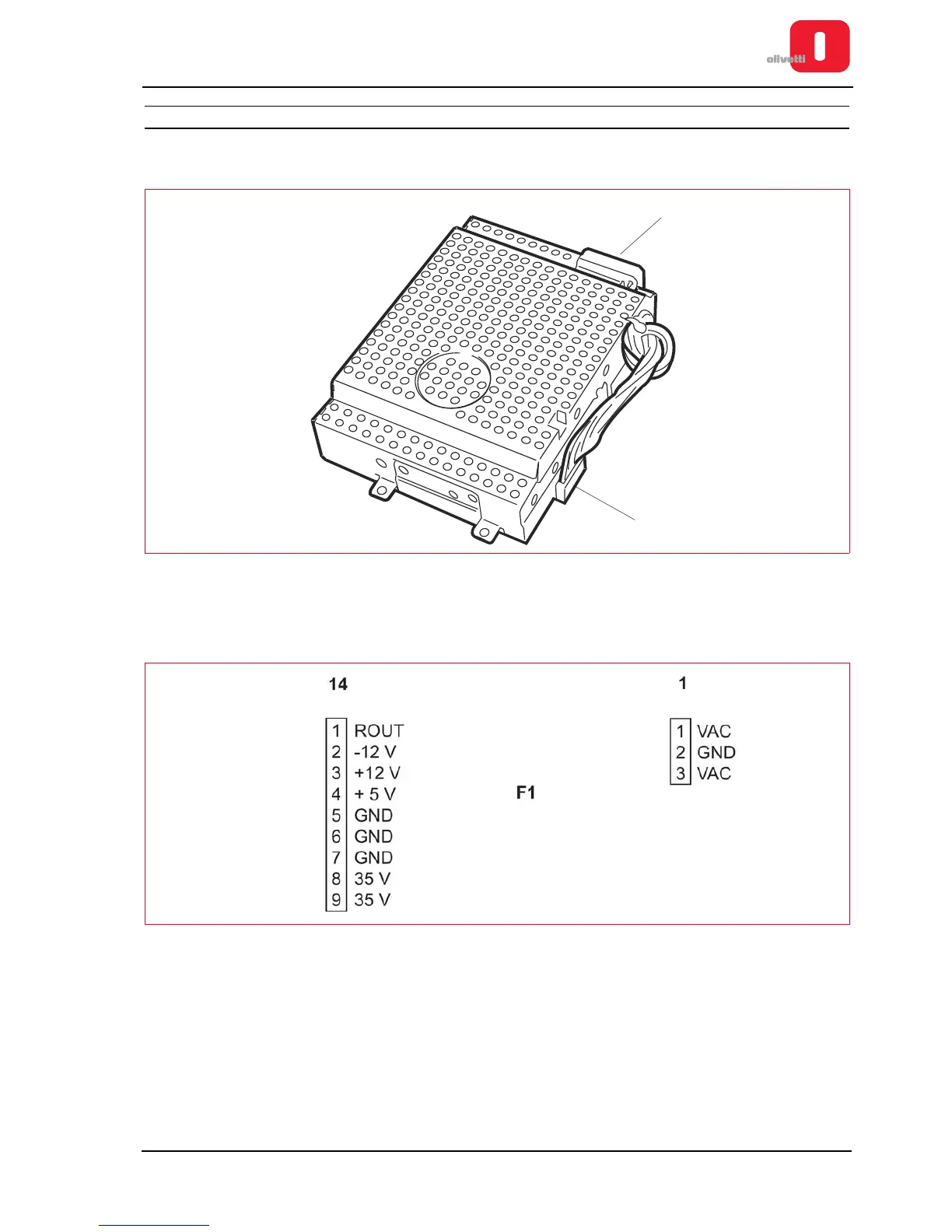

Figure 1 - 11 Power supply unit
Connector pin-out and fuse ratings
The signals on the power unit connectors are given in the following.
Figure 1 - 12 Power unit connectors
