Olivetti PR2 plus - Horizontal Magnetic;Micr Printhead Assy Disassembly;Reassembly

7-30 Service Manual
XZAC4219-05
Horizontal magnetic/MICR printhead assy disassembly/reassembly
1. Remove the horizontal magnetic/MICR assy. See the section “Horizontal magnetic/MICR disassembly/
reassembly” on page 7 - 28.
2. Loosen the screw (1) and free the signals cable.
3. Loosen the screws (2) and extract the MICR printhead (3).

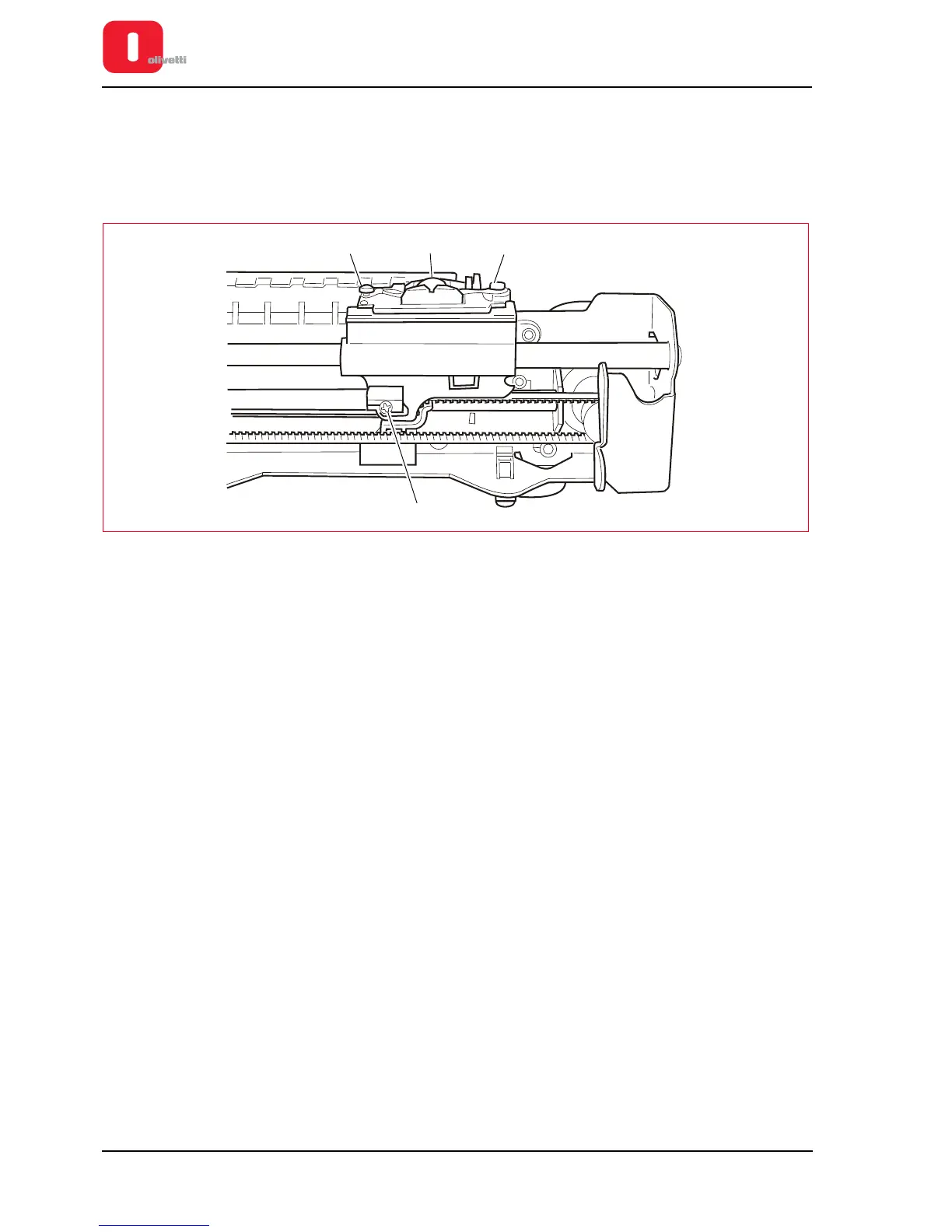

Figure 7 - 41 Horizontal magnetic/MICR printhead assy
1
2
2 3
