Paper feed motor disassembly/reassembly
1. Disassembling the casing. See the section “Casing disassembly/reassembly” on page 7 - 4.
2. Remove the mechanical assy as explained above. See the section “Mechanical assy disassembly/reassembly”
on page 7 - 6.
3. Loosen the two lock nuts (1) of the motor and remove the document drive belt (2) from the pulleys.
4. Loosen the nuts (1) and extract the motor.

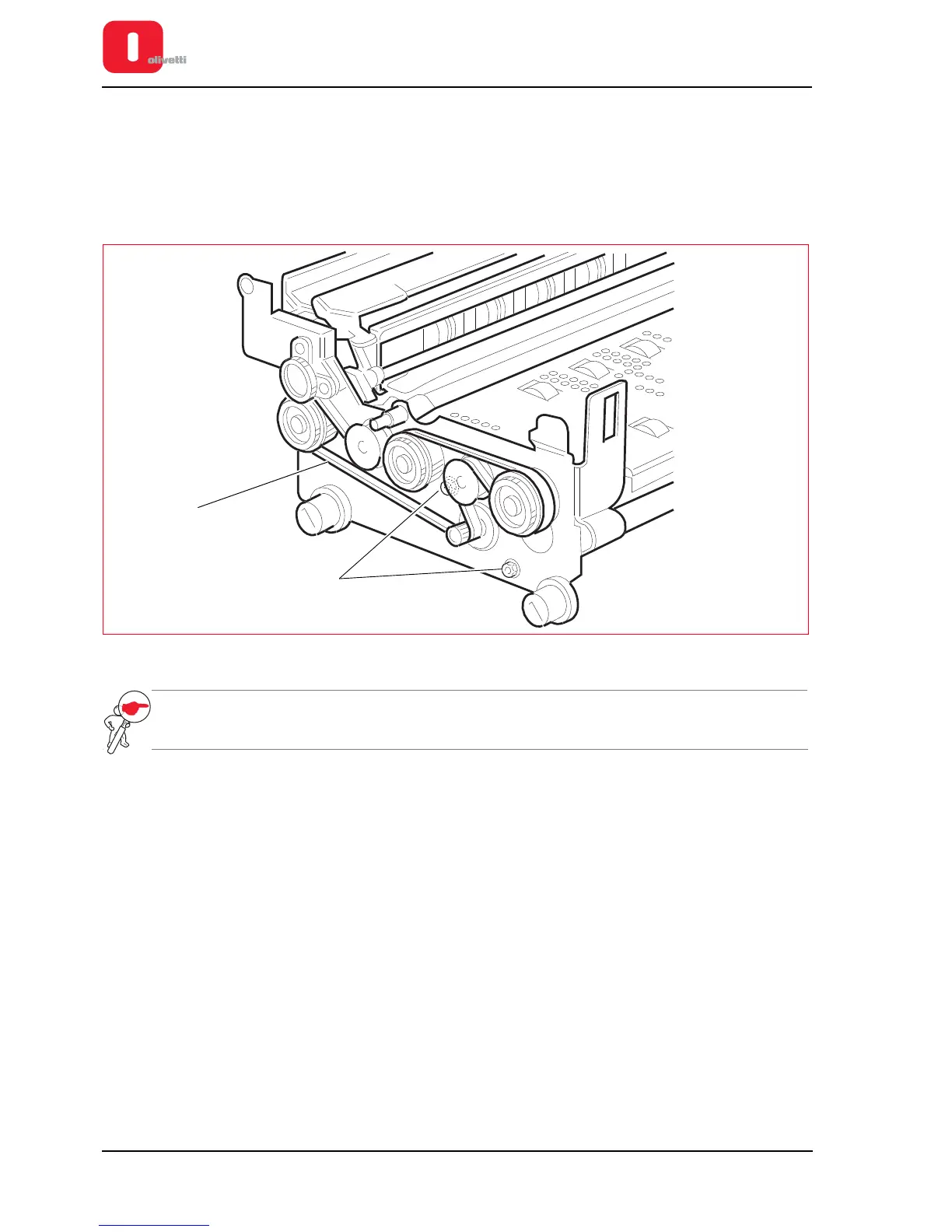

Figure 7 - 14 Disassembling the paper feed motor
NOTE: during reassembly, adjust the document drive belt. See the section “Adjusting the document drive
belt” on page 6 - 3.
