BASIC MACHINE DISASSEMBLY/REASSEMBLY PROCEDURES
Console disassembly/reassembly
1. Open the top cover of the machine.
2. Back off the two lock-screws (1) and remove the cover of the flat cable.
3. Disconnect the flat cable (2) from the console.
4. Back off the four lock-screws (3) and remove the console from the cover.
5. Back off the four lock-screws (4) to separate the console (5) from the support.

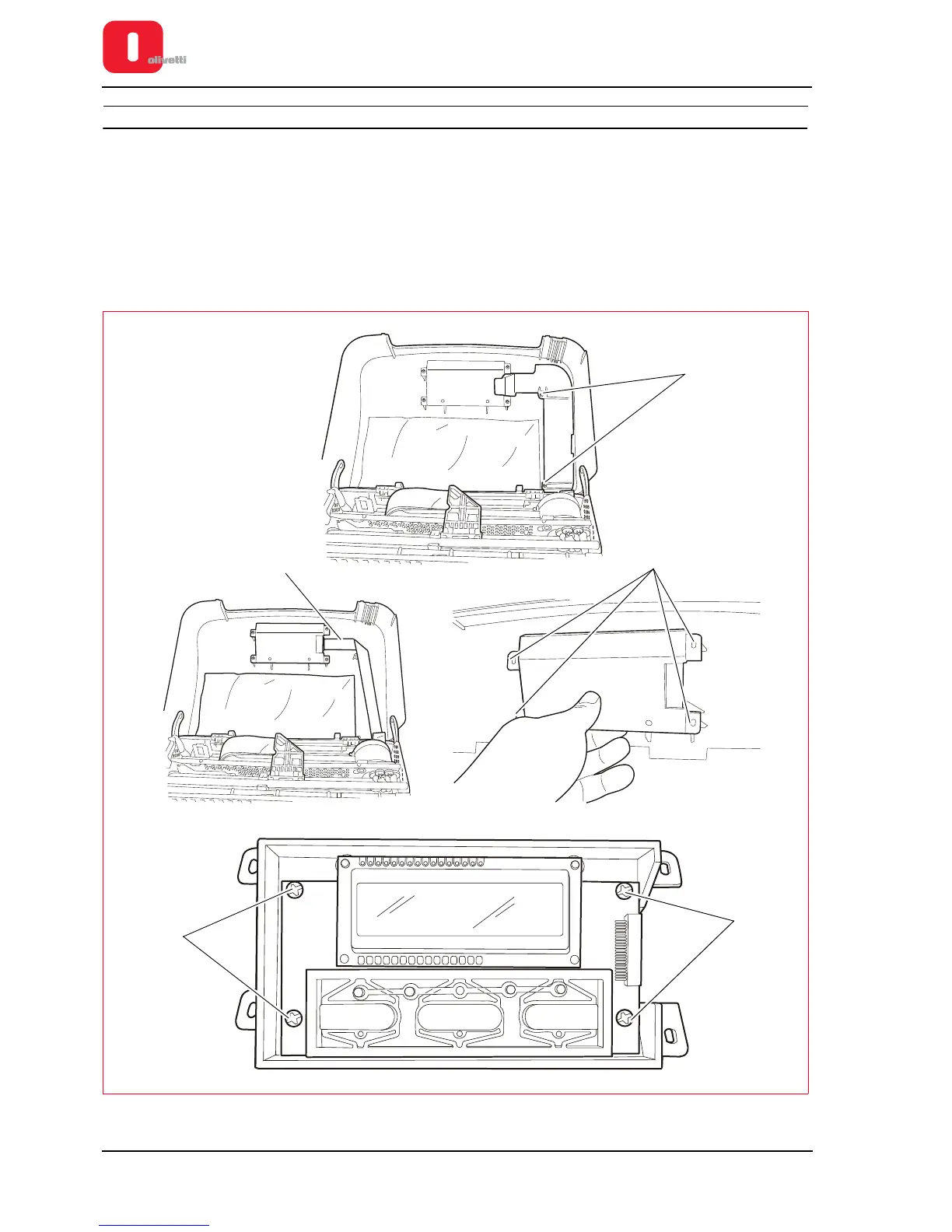

Figure 7 - 1 Disassembling the console
