XZAC4219-05 Service Manual
7-3
Top cover disassembly/reassembly
1. Open the top cover of the machine.
2. Disconnect the flat cable of the console, as explained in the previous paragraph.
3. Release the pins of the cover (1) from the guides.
4. Using a tool (for example, a screwdriver) exert pressure on the hinges (2) and extract the cover.

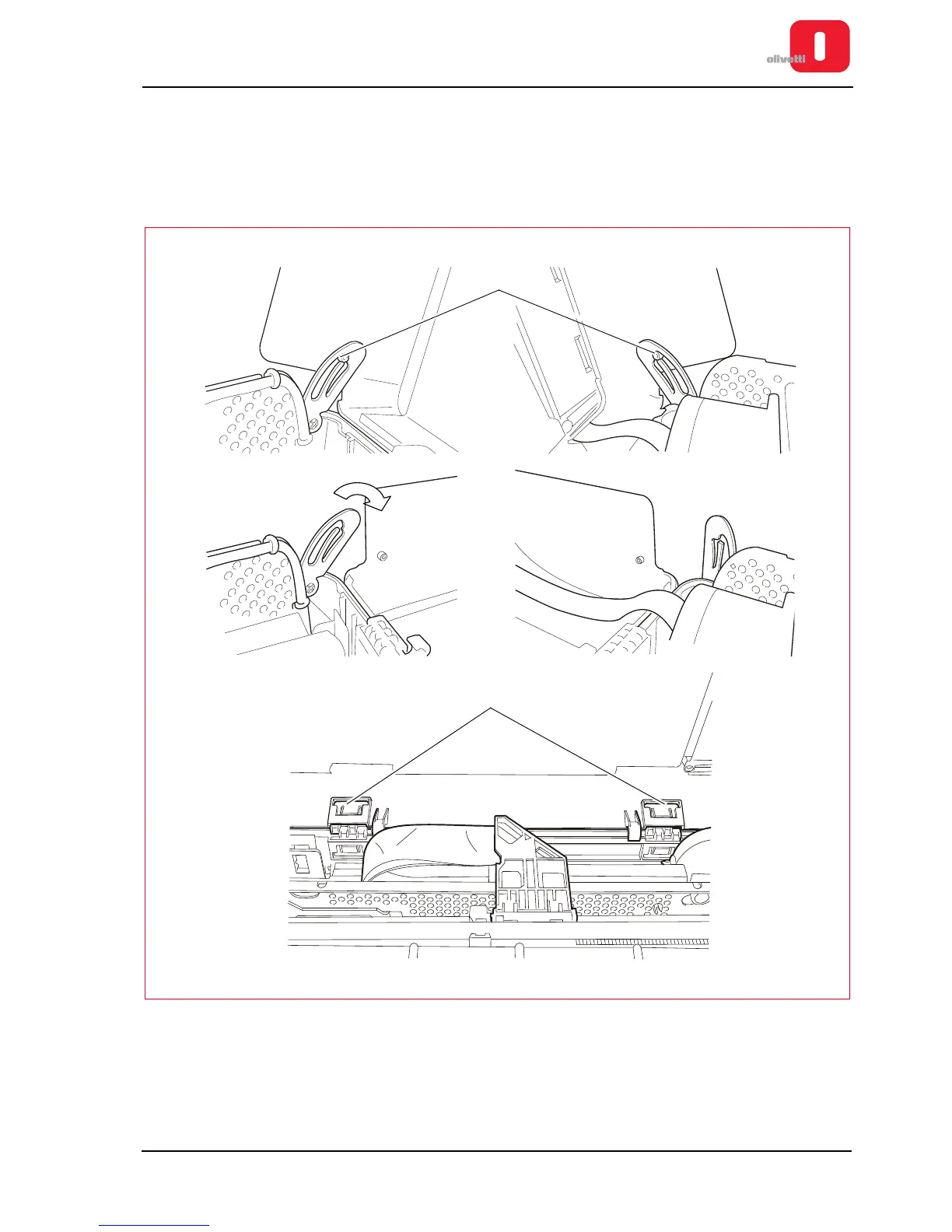

Figure 7 - 2 Disassembling the top cover
