XZAC4219-05 Service Manual
6-15
Replacement and adjustment of belt for carriage movement
• MACHINE STATUS
Printer switched off and without casing.
• CONDITIONS TO BE CHECKED
Idler pulley support slide pushed externally to the printer by tension spring.
• PROCEDURE
– Loosen the screw (1).
– Check the sliding freedom of the slide.
– If necessary, replace the belt.
– Tighten the screw.

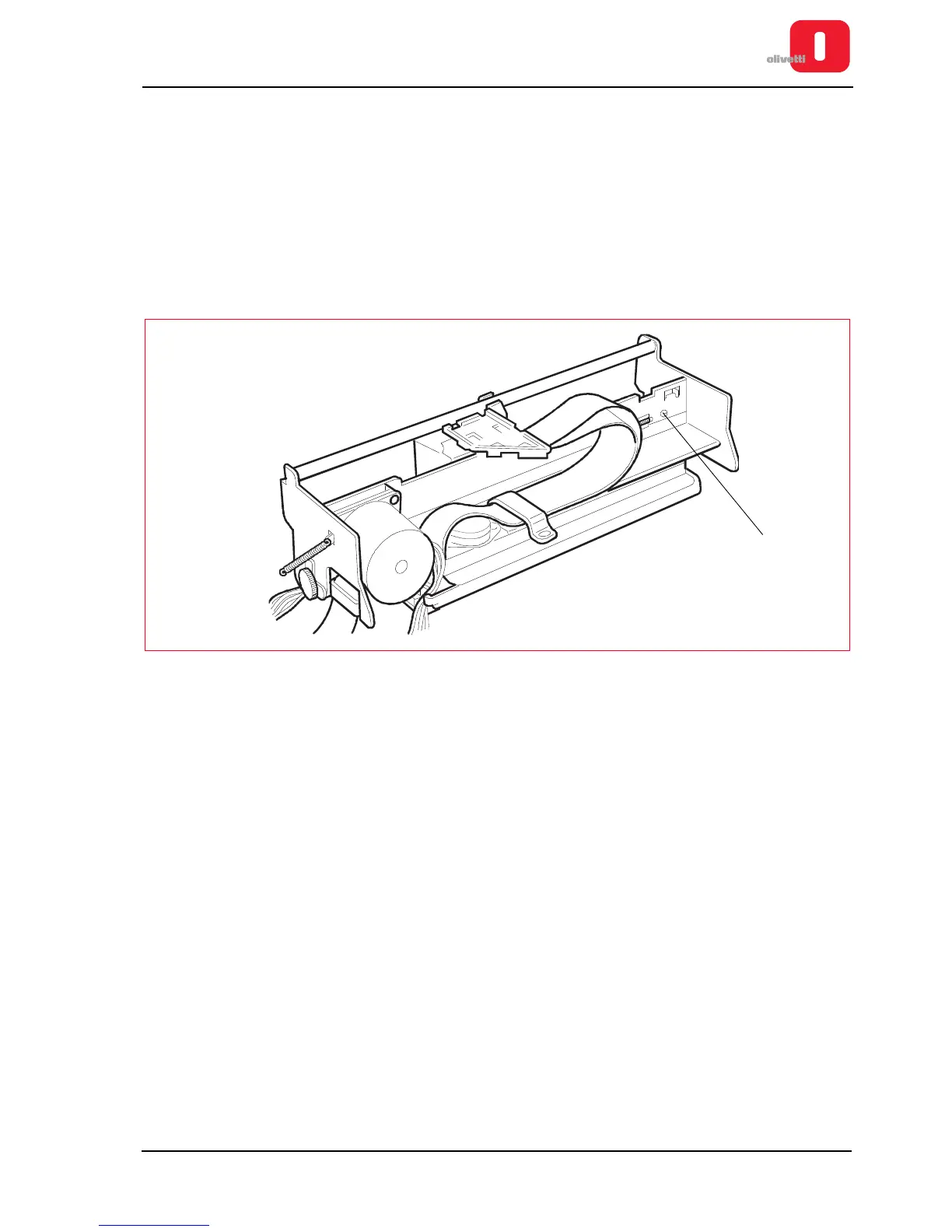

Figure 6 - 14 Replacement and adjustment of belt for carriage movement
