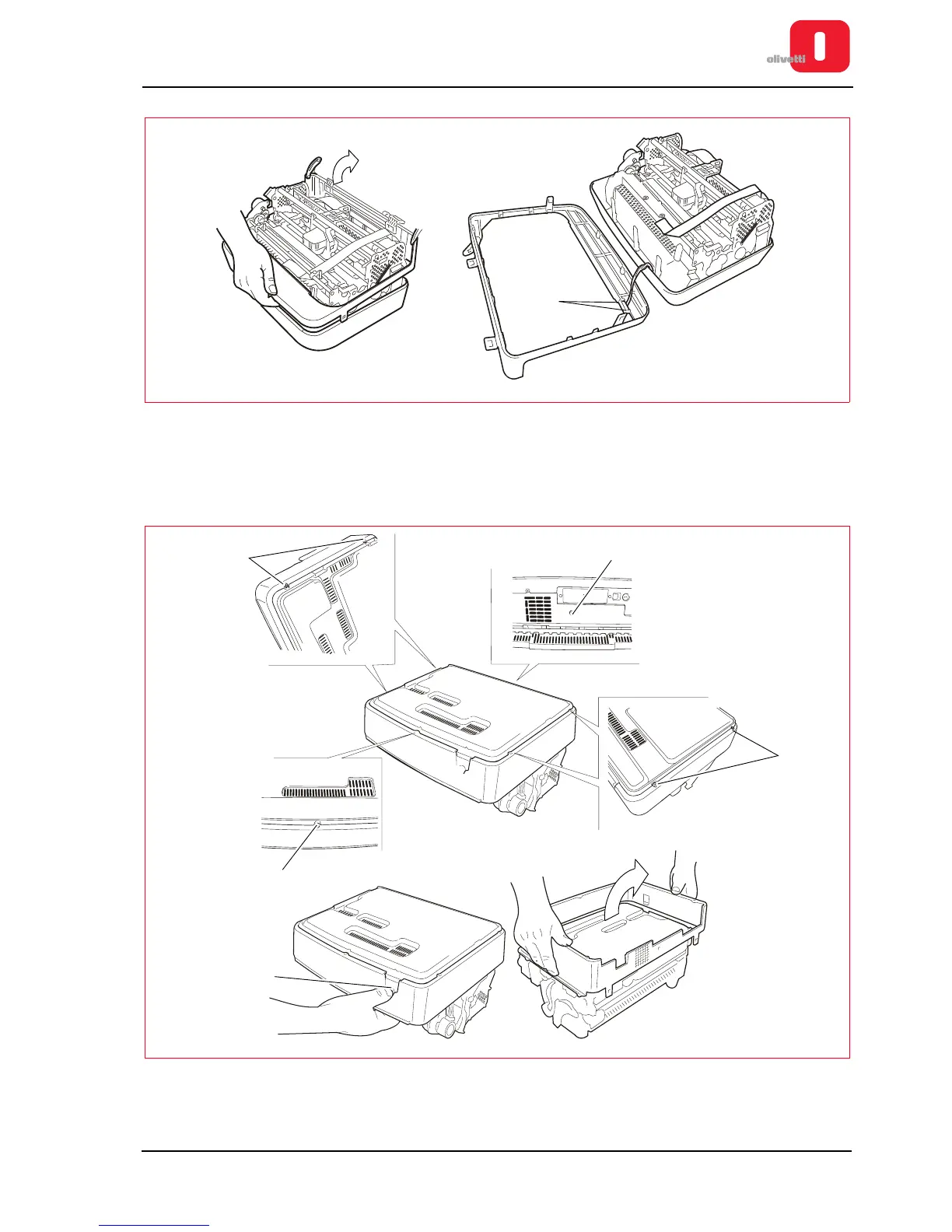

Figure 7 - 4 Removing the casing plate
7. Working from the lower side of the machine, back off the five lock-screws (6) of the baseplate.
8. Move the power supply switch (7) to the ON position.
9. Remove the base plate as shown in the figure.
Figure 7 - 5 Removing the casing bottom
5
6
6
6
6
7
