XZAC4219-05 Service Manual
7-27
5. Back off the four lock-screws (2) of the power supply unit, also removing the ground cables.

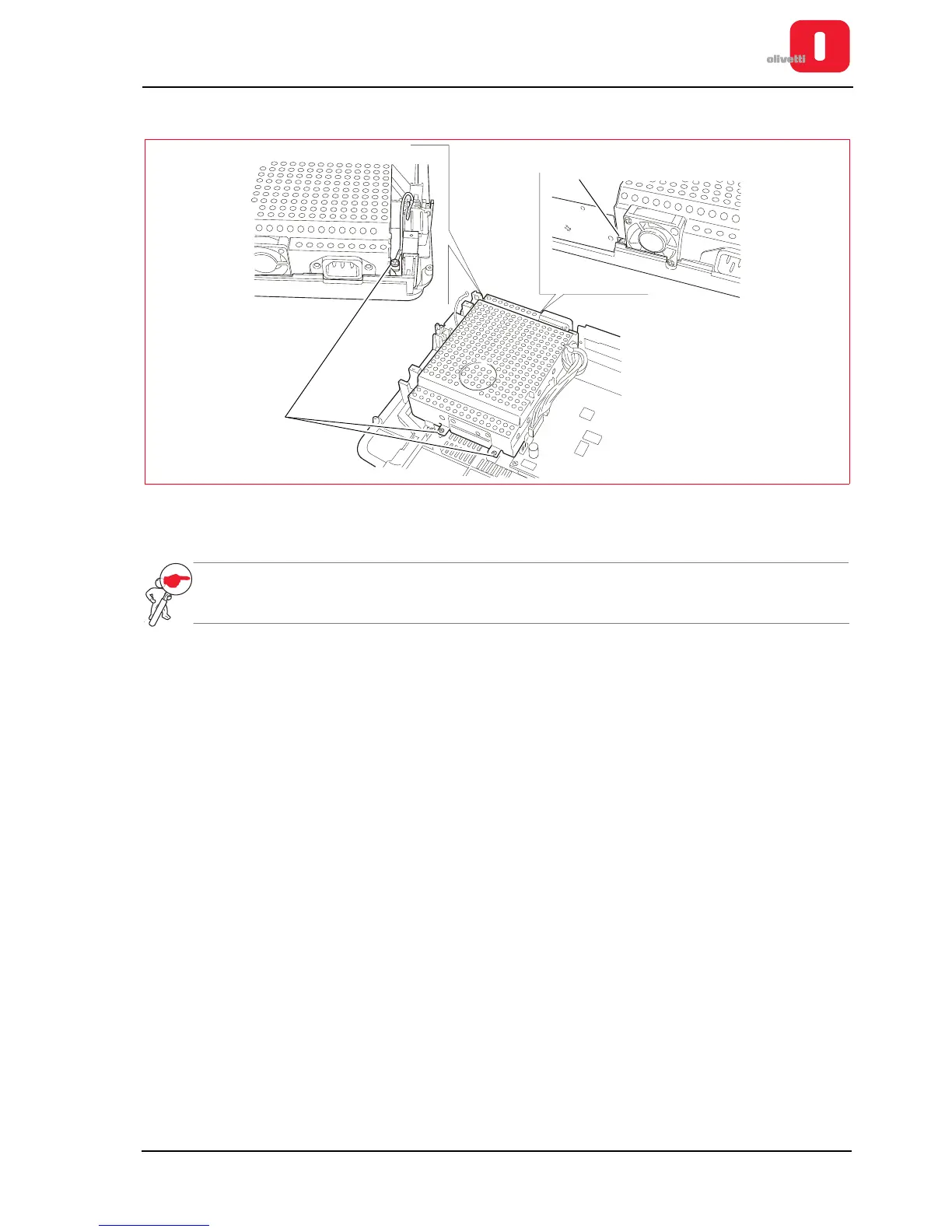

Figure 7 - 36 Fastening screws for power unit
6. Extract the power supply unit.
NOTE: during reassembly, pay particular attention to correct repositioning of the ground cables. If the unit
is replaced, check that the power voltage is correct.
