7-32 Service Manual
XZAC4219-05

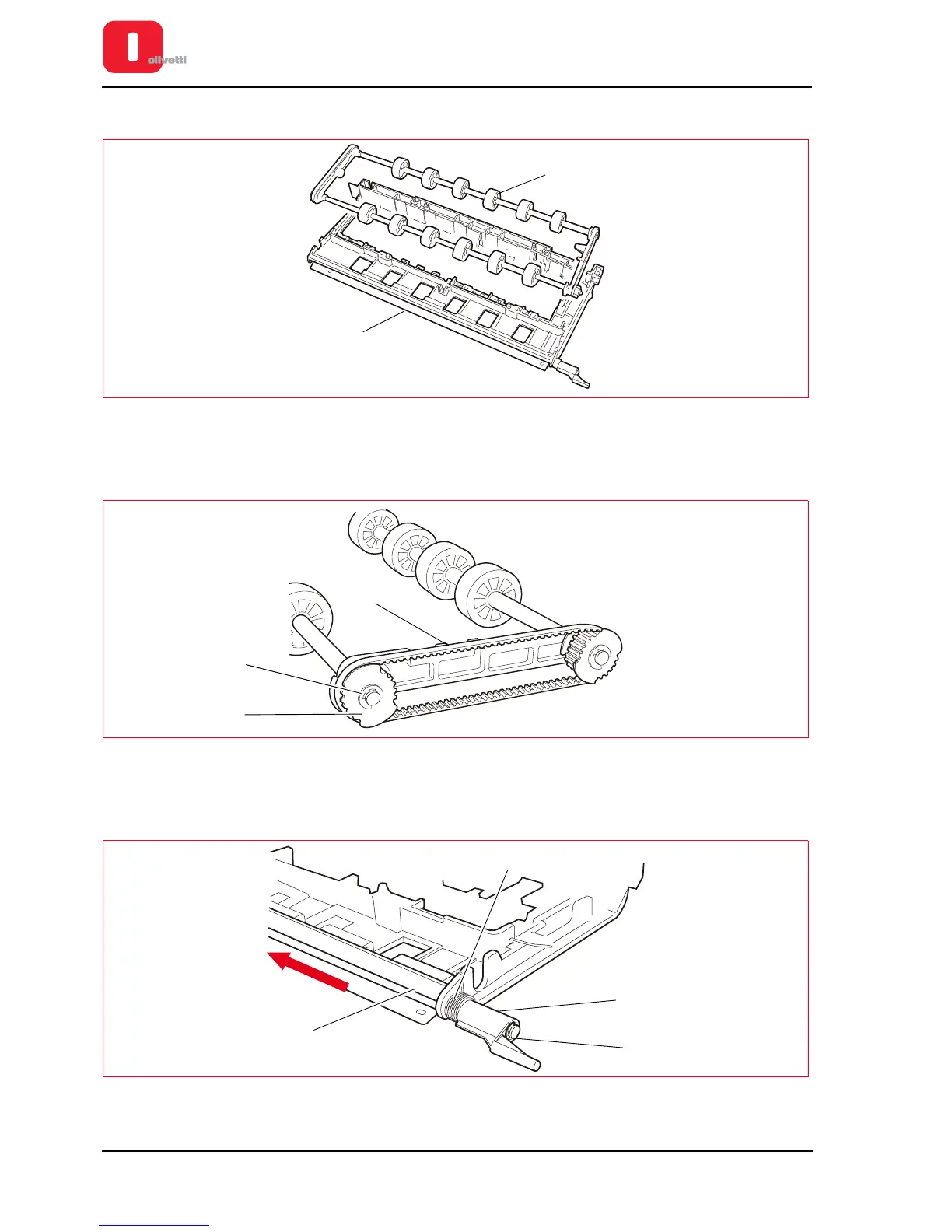

6. Remove the rollers (6) from the support (7).
Figure 7 - 44 Removing the rollers
7. Remove the snap ring (8) and related gear (9).
8. Remove the drive belt (10).
Figure 7 - 45 Removing the transmission belt
9. Remove the snap ring (11), the cam (12) and the spring (13).
10. Slide out and remove the shaft (14).
Figure 7 - 46 Removing the scanner shaft
6
7
8
9
10
12
13
11
14
