Configurator Settings
7-3-4 Operation Time Tab Page

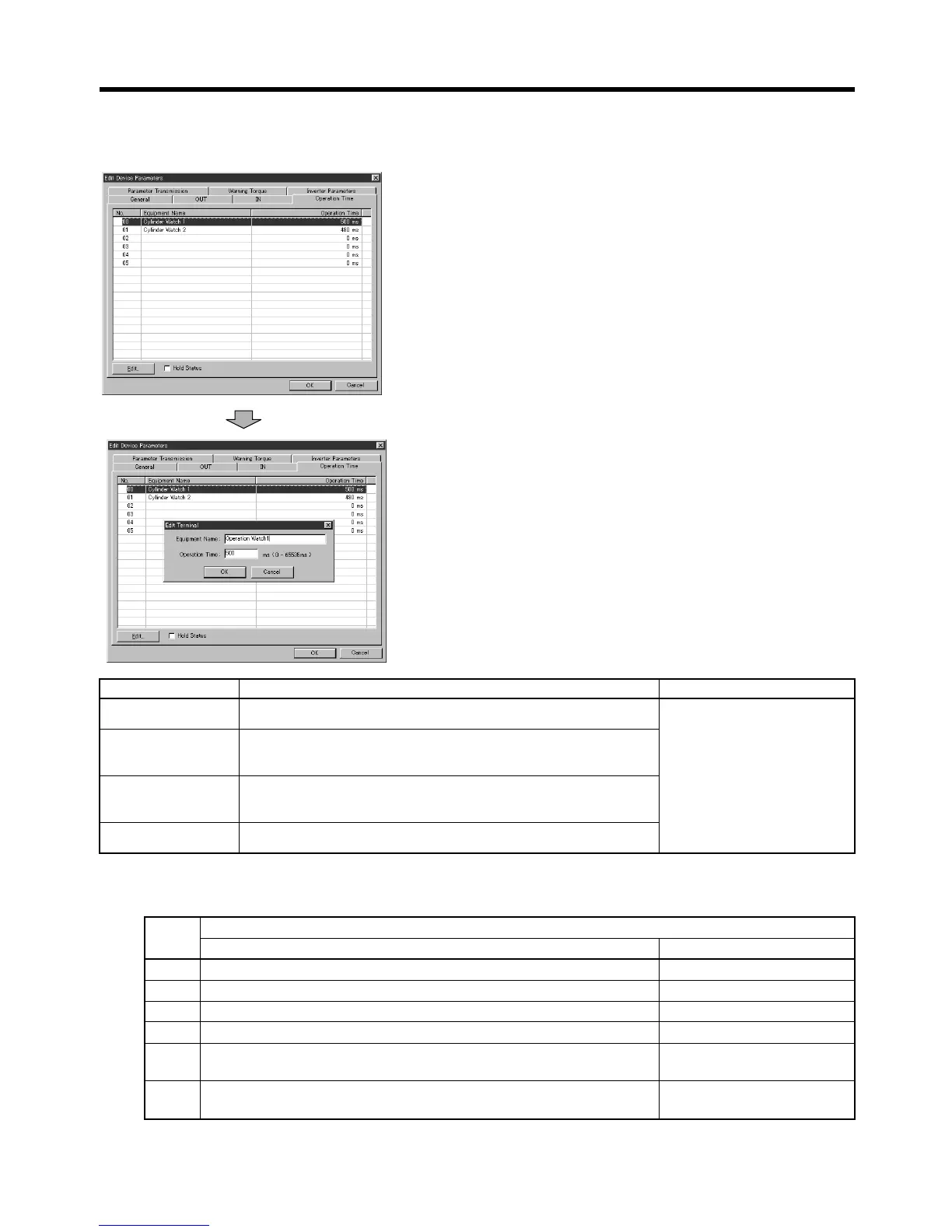

The Operation Time Tab Page is used to make the settings for the operation time monitor function.
Note The following table shows the meanings of the values set in the No. field.
Item Details Reference
No. Refer to the following table. (For details, refer to 7-2-5 Operating Time Moni-
tor Function.)
7-2-5 Operating Time Monitor
Function
Equipment Name Set a user-defined name for each device.
Note: When the setting is made in the setting window, the setting will be dis-
played in the Equipment Name field.
Operation Time Set the monitor value.
Note: When the setting is made in the setting window, the setting will be dis-
played in the Operation Time field.
Hold Status Set whether to maintain the ON Unit status when the monitor value is
exceeded.
No.
00 Multi-function contact output: ON Input 4: ON
01 Multi-function output 1: ON Input 5: ON
02 Input 2: ON Input 3: ON
03 Input 4: ON Input 5: ON
04 Input 0: ON or Input 1: ON
or when a forward/reverse run command is sent
Input 4: ON
05 Input 0: ON or Input 1: ON
or when a forward/reverse run command is sent
Input 5: ON
Double-click the selected field or click the Edit Button.
