4 Setting the Controller
4 - 8
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
An exclusive touch screen monitor, Touch Panel Monitor is available for FH Sensor Controllers to con-
firm images or to display menus for condition settings.
• The Touch Panel Monitor (FH-MT12) is used exclusively with the FH series Sensor Control-
lers. It cannot be used with FZ5 series Sensor Controller.
• The Touch Panel Monitor (FH-MT12) is supported only by Ver. 5.32 or later versions of the
FH series Sensor Controller.
To wire the Touch Panel Monitor (FH-MT12) and an FH series Sensor Controller, a monitor cable for
video input and a touch panel cable for touch panel communication are required.
Normally, use a USB cable connection for the Touch Panel Monitor (FH-MT12).
Use an RS-232C cable connection in the following cases.
• The Touch Panel Monitor (FH-MT12) and the FH series Sensor Controller are more than 5 m apart.
• All the USB ports of the FH series Sensor Controller are used for other I/O connections, and thus
there is no available USB port for the Touch Panel Monitor (FH-MT12) connection.

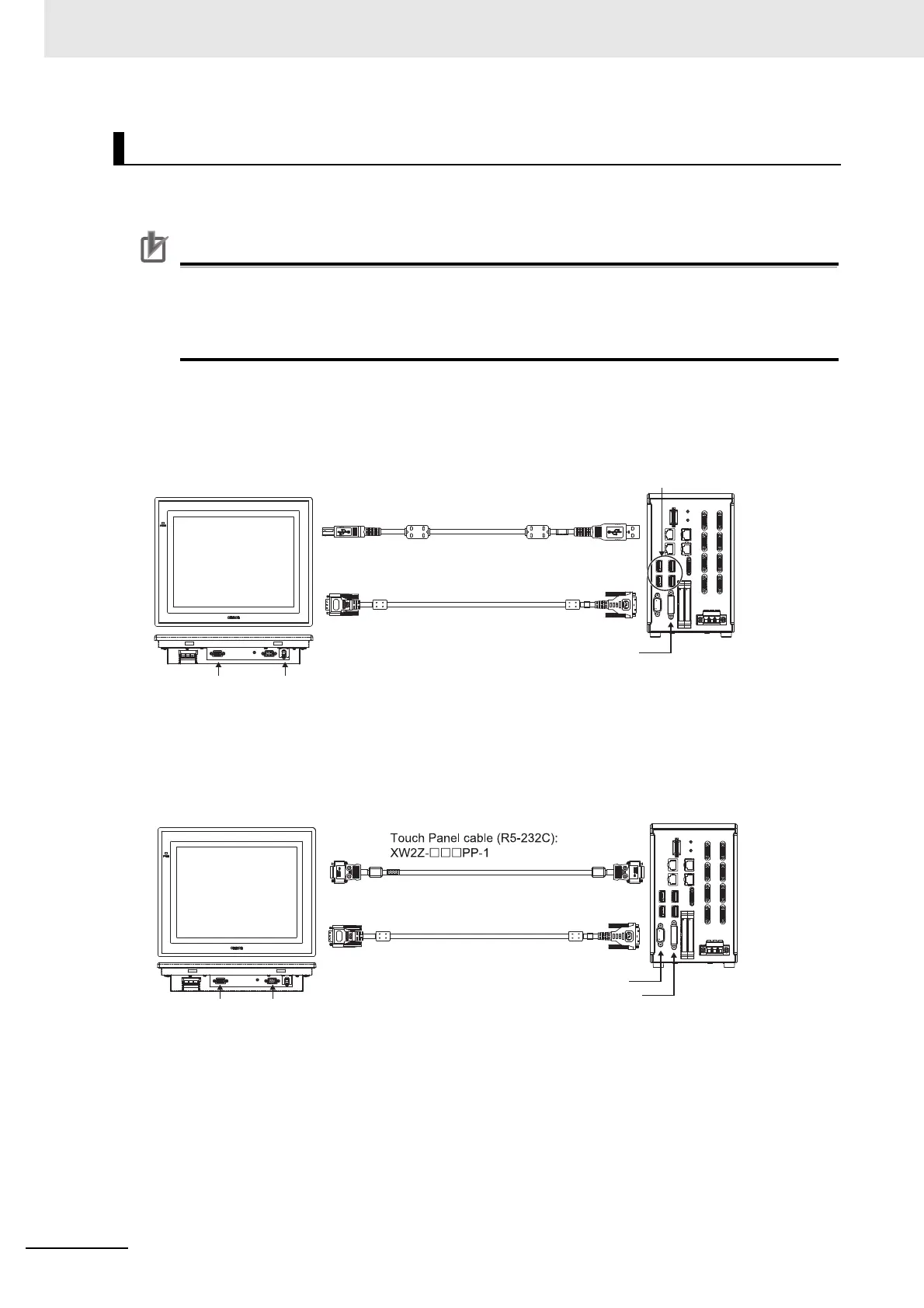

Settings for Touch Panel Monitor
USB connection
(Maximum cable length: 5 m)
FH-MT12
Type B
Analog RGB USB
Touch Panel cable(USB): FH-VUAB
Monitor cable: FH-VMDAD-Sub
Type A
DVI-A
DVI-I
FH series Sensor Controller
Connect to the optional FH series
Sensor Controller' s USB port
RS-232C connection
(Maximum cable length: 10m)
FH-MT12
Analog RGB RS-232C
RS-232C
Monitor cable: FH-VMDAD-Sub DVI-A
DVI-I
FH series Sensor Controller
