4 Setting the Controller
4 - 20
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
 FH-1000/3000/5000 series Sensor Controller
You can assign any of up to eight Cameras to each line.
Use the following procedure to assign Cameras to each line.
1 In the Main Window, select [System settings] − [Startup] − [Startup settings] from the [Tool]
menu.
2 Select [Multi-line random-trigger mode] for the operation mode on the [Operation Mode] tab
page.

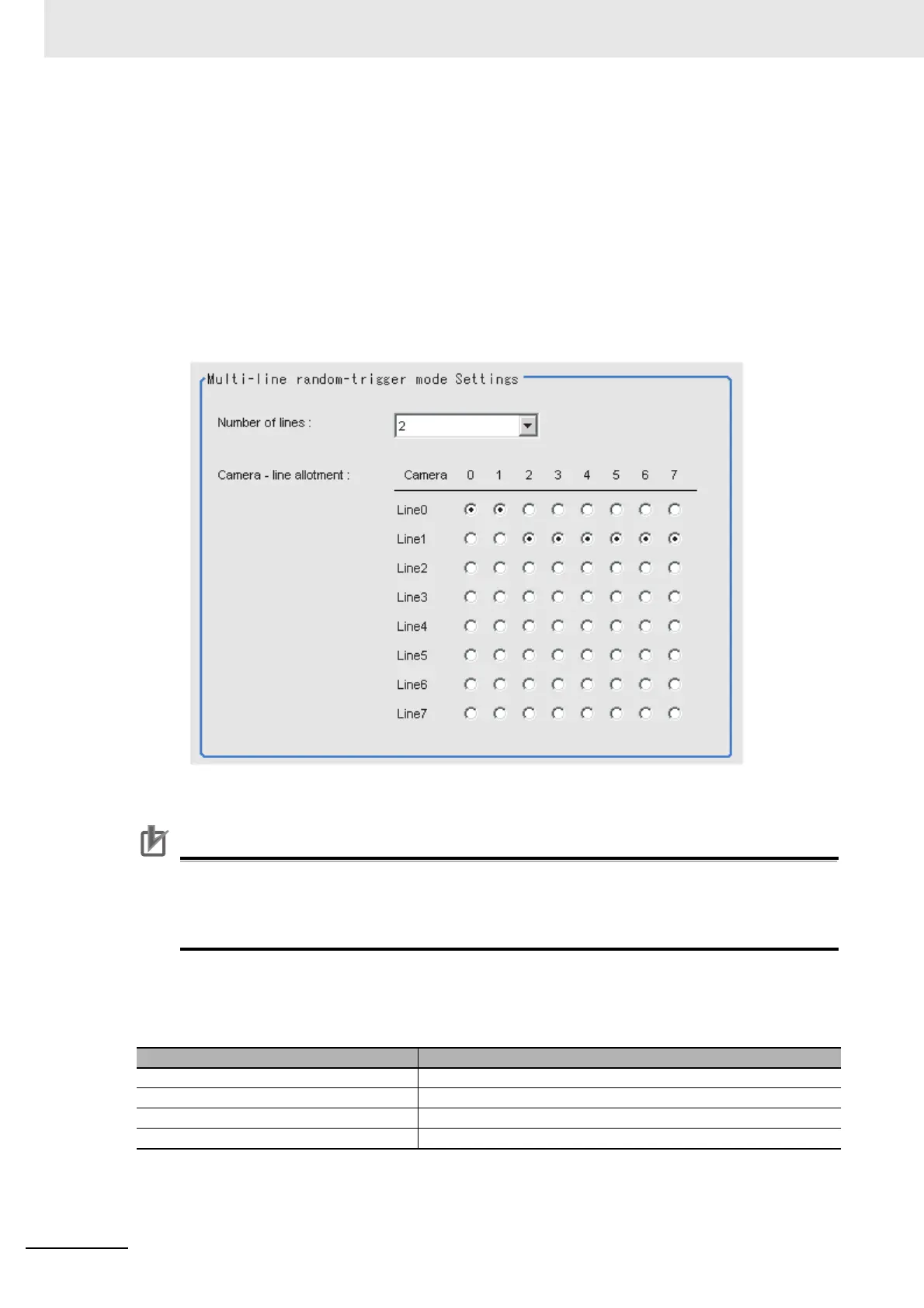

3 Set the [Number of lines] and [Camera - line allotment] on the [Multi-line random-trigger mode
settings] tab page.
For example, if you use Cameras 0 and 1 on line 0, you can use up to 6 Cameras from Camera 2 to 7
on line 1.
Important
The settings of the [Multi-line Random-trigger Mode Settings] apply only to the FH series Sen-
sor Controller. In FZ5-800/1100/1200 series Sensor Controller, there will always be two lines
and fixed lines assignments to the Cameras regardless of the settings of the [Multi-line Ran-
dom-trigger Mode Settings].
 FZ5 Series
The Camera assignments for each line are listed below.
Camera number Software handling
Camera 0 Camera 0 on line 0
Camera 1 Camera 0 on line 1
Camera 2 Camera 1 on line 0
Camera 3 Camera 1 on line 1
