5 Creating Measurement Scenes
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
5-1 What Is a Scene?
5
The number at the top of the processing unit is called the unit number. When the measurement trigger
is input, processing is executed in the order of the processing unit numbers.

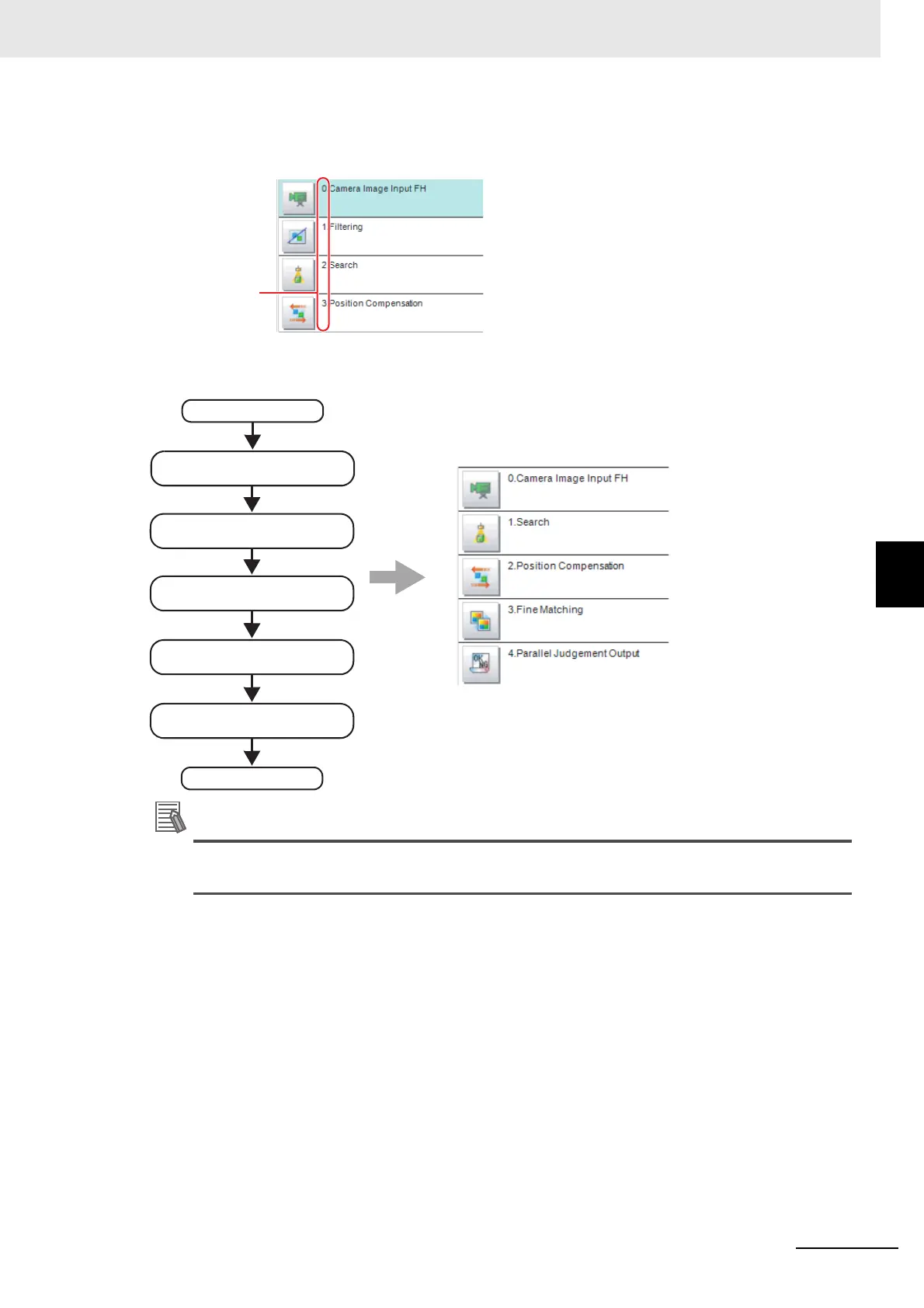

Example: Normal Measurement
Additional Information
By default, a [Camera Image Input] or [Camera Image Input FH] processing item is set for unit
0.
Processing unit
numbers
Capture image from Camera.
Perform position compensation.
Check for defects.
Output measurement results to external device.
START
END
0
2
3
4
Identify the shape.
1
