Omron fh-1 series User Manual

5 - 11
5 Creating Measurement Scenes
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
5-4 Displaying and Checking Processing Branches in a Scene
5

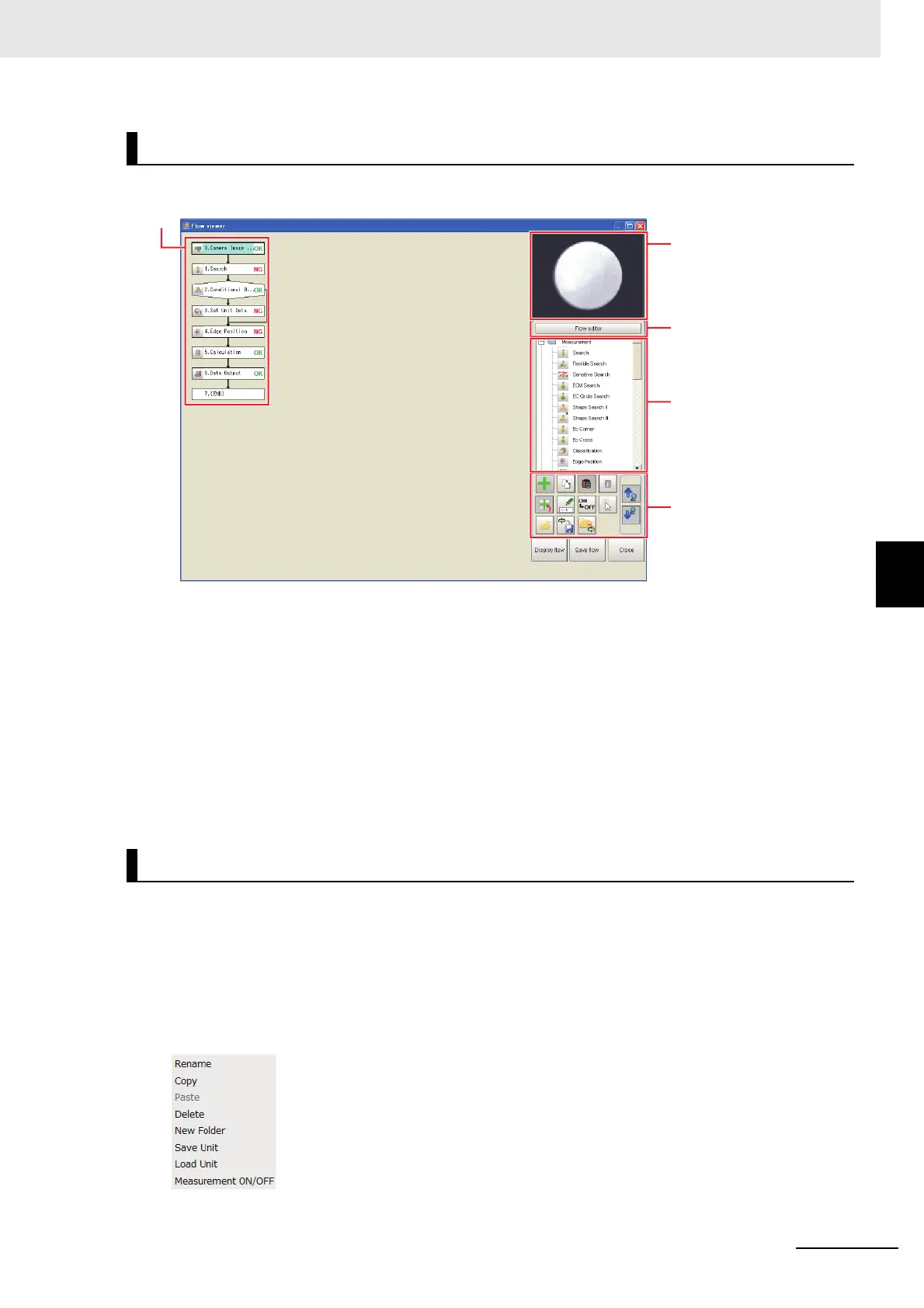

The window configuration for the Flow Viewer is shown below.
 Image Display Area
This area shows Camera images, figures, positions, and other graphic information.
The measurement image is updated each time a unit is selected.
 Flow Editor Button
This button starts the edit flow window.
 Tree of Processing Items
This area allows you to select an item to add to the flow. The items are displayed in tree format that
is organized by type.
 Repositioning a Unit within a Flow
On the Flow Builder, drag the unit to the desired position.
To insert a unit before another unit, drag it onto the desired unit.
 Right-click Menu
The following popup menu is displayed when you right-click on a unit in the flow.
The menu commands perform the same operations as the Edit and Control Buttons.
Window Configuration
Flow Editing Functions
Image Display Area
Flow Editor Button
Processing items tree
Edit and control buttons
Flow Builder View
