5 Creating Measurement Scenes
5 - 18
Vision System FH/FHV/FZ5 Series Users Manual (Z365)

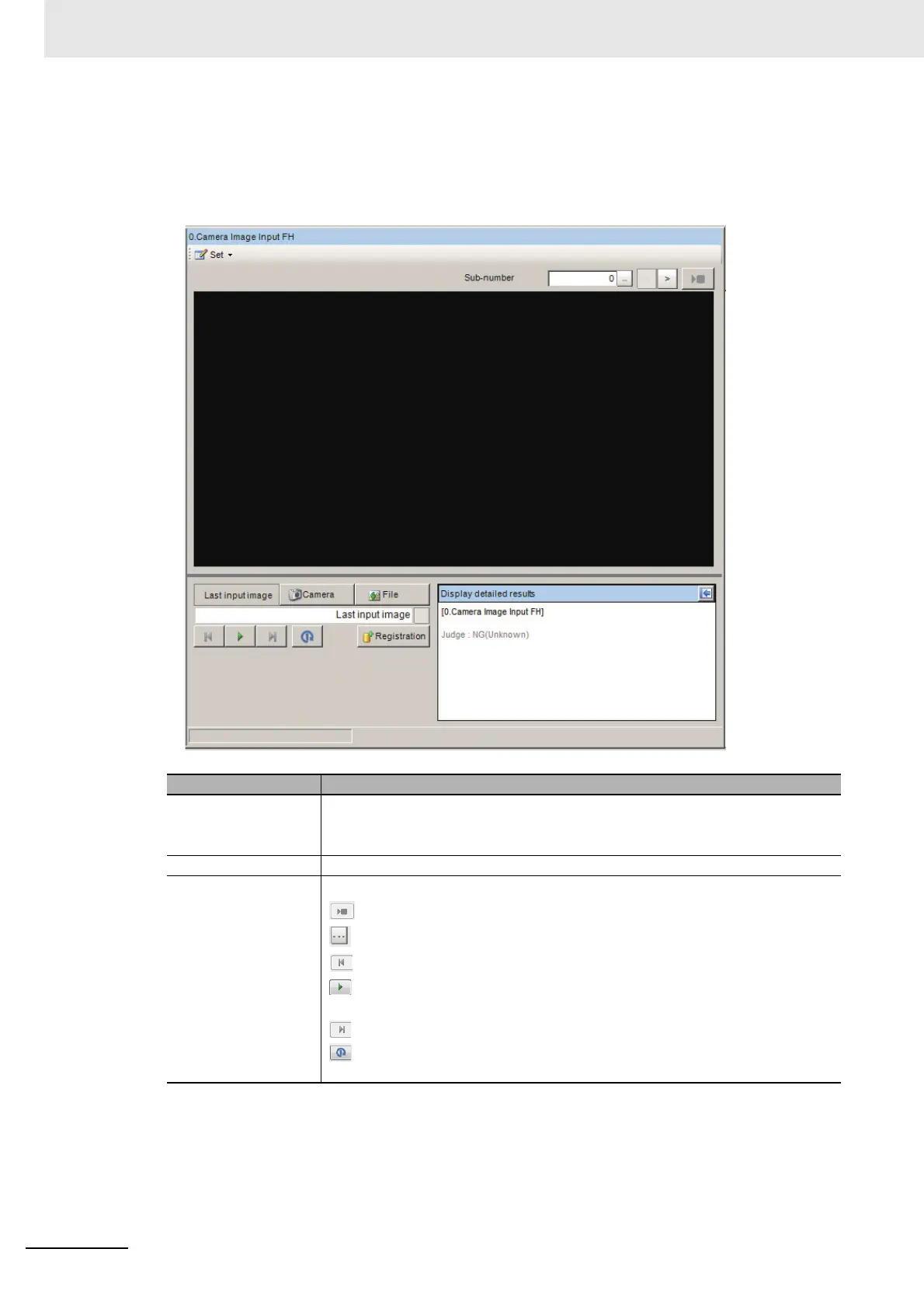

(h) Unit area:
This area provides a setting function and test measurement function for a processing unit selected
on the Unit list (flow).
The image window for a processing unit selected on the Unit list (flow) is displayed.
Item Content
Set button Opens the settings menu of the processing item.
1. Open the unit setting UI: Displays the “Editing” dialog box
*1
.
2. Open the unit setting old UI: Displays the legacy processing item setting screen.
Sub number Specifies a sub image number for the measurement image to display.
Last input image Performs a test measurement on the last input image.
: Not used.
: Not used.
: Not used.
: Performs a test measurement. The results will be displayed on the image,
detailed results display area, and the Unit list (flow).
: Not used.
: Performs a unit measurement. The results will be displayed on the image
and the detailed results display area.
