5 - 25
5 Creating Measurement Scenes
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
5-5 Using Variables to Edit the Flow [TDM Editor]
5

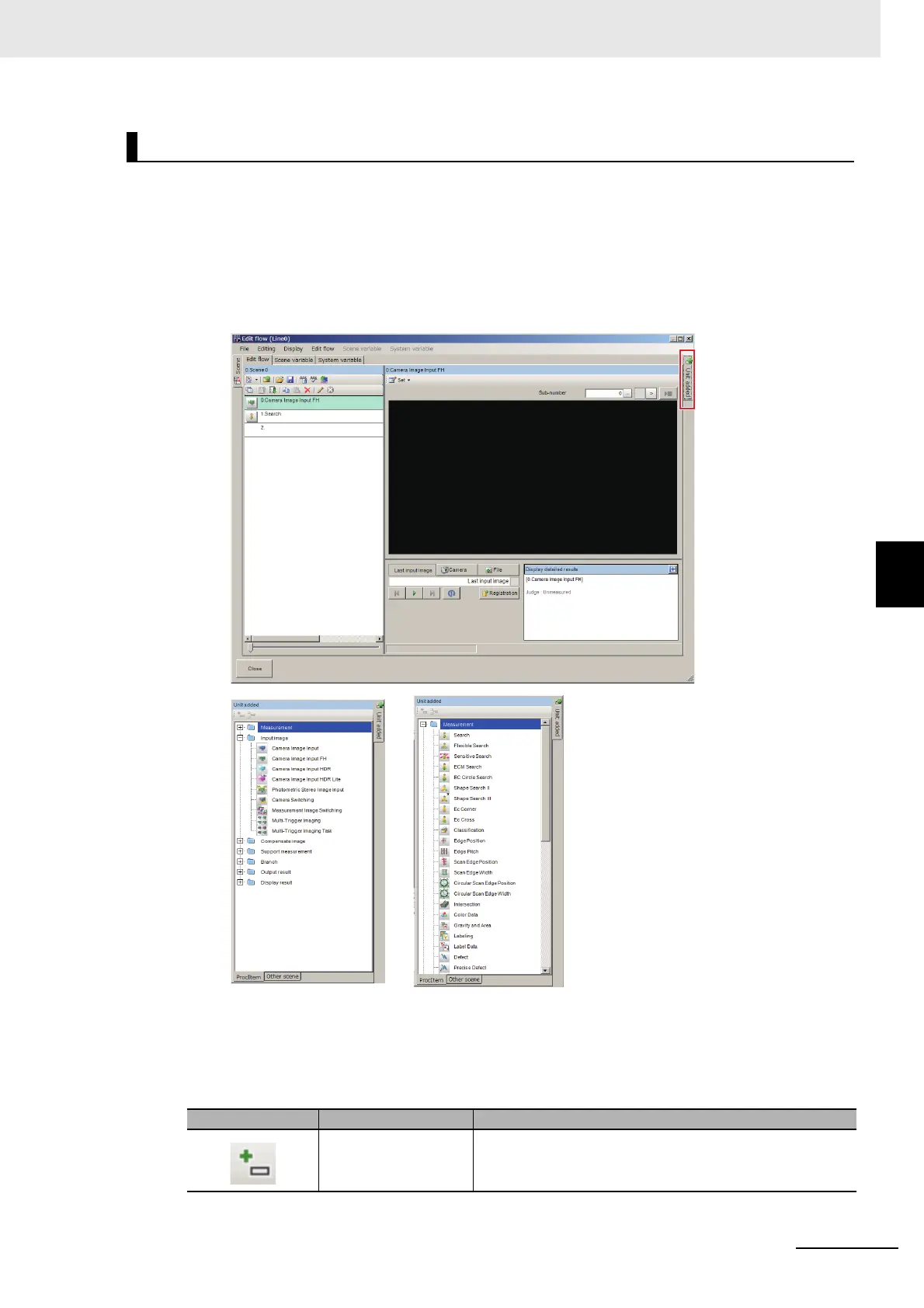

5-5-2 Editing Processing Units in a Scene
1 Display the Edit flow tab screen for the scene to edit.
For more details, refer to 5-5-1 Edit Flow Screen on page 5-14.
2 Click the [Unit added] tab.
On the Unit added tab, the processing items are displayed with a tree style per type. Clicking “+”
at the head of each item displays the lower level items. Clicking “-“ at the head of each item
closes the lower level items being displayed.
3 Select a processing item to add from the list of processing items on the Unit added tab.
4 Click [Append] icon or [Insert] icon at the upper side of the Unit added tab.
The selected processing item is added to the bottom (Append) or the specified position (Insert)
on the Unit list (flow).
Adding Processing Units to a Scene
Icon/Button Function Description
Append Adds a processing item selected on the processing item list
to the bottom of the Unit list (flow).
