5 Creating Measurement Scenes
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-3 Editing Scenes

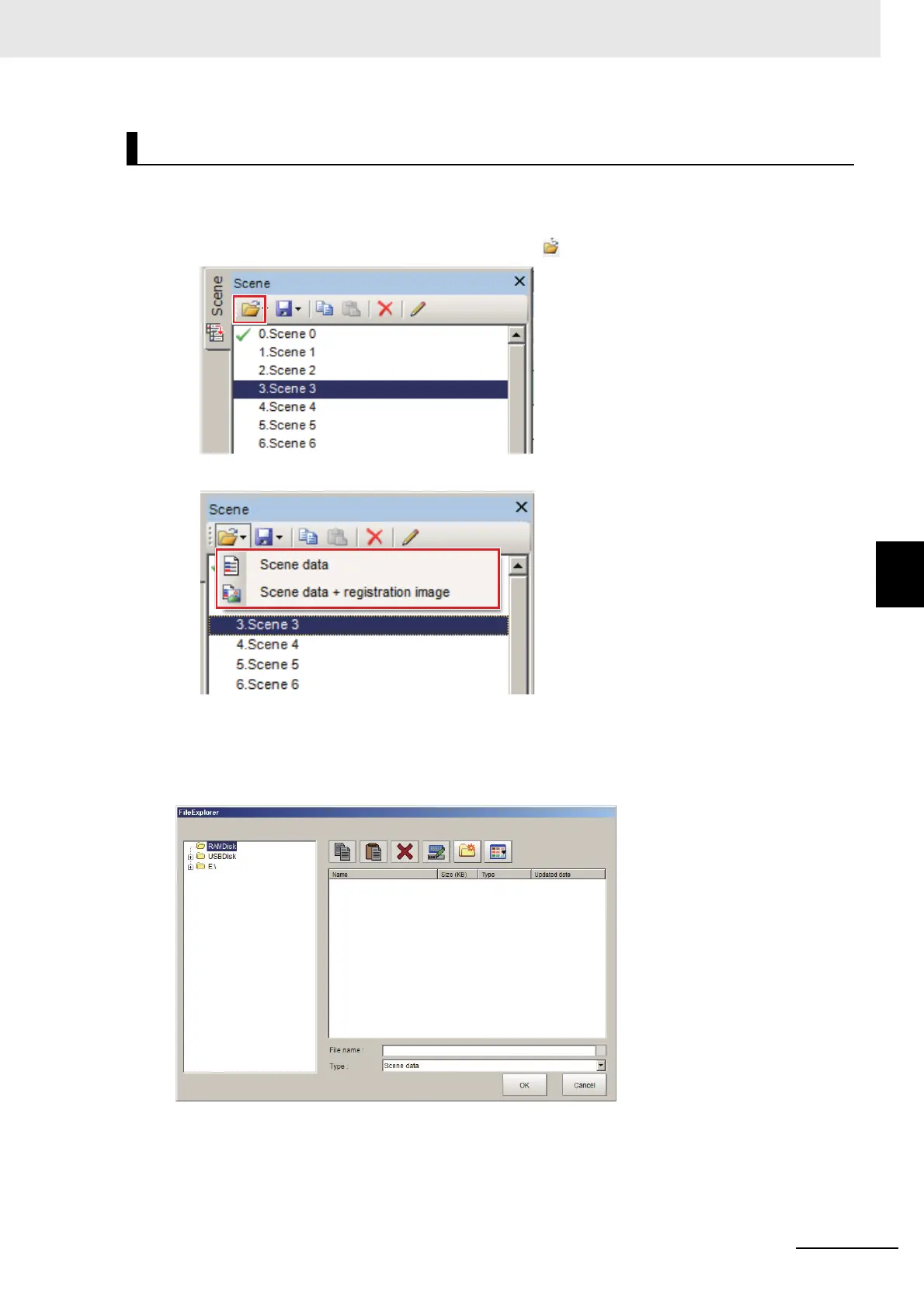

1 Select the Scene tab on the Edit flow screen.
A list of scenes is displayed. The current scene has a check mark.
2 Select a scene on the scene list to load and click [Open].
3 Select whether to load the scene data or the scene data and the registered image together.
 Loading a scene data
1 Click [Scene data].
FileExplorer is displayed.
2 Click a scene data to read.
Loading a scene
