3 Click [Move].
The current cursor on the “Value” column will be moved to the cell on the “Value” column of the

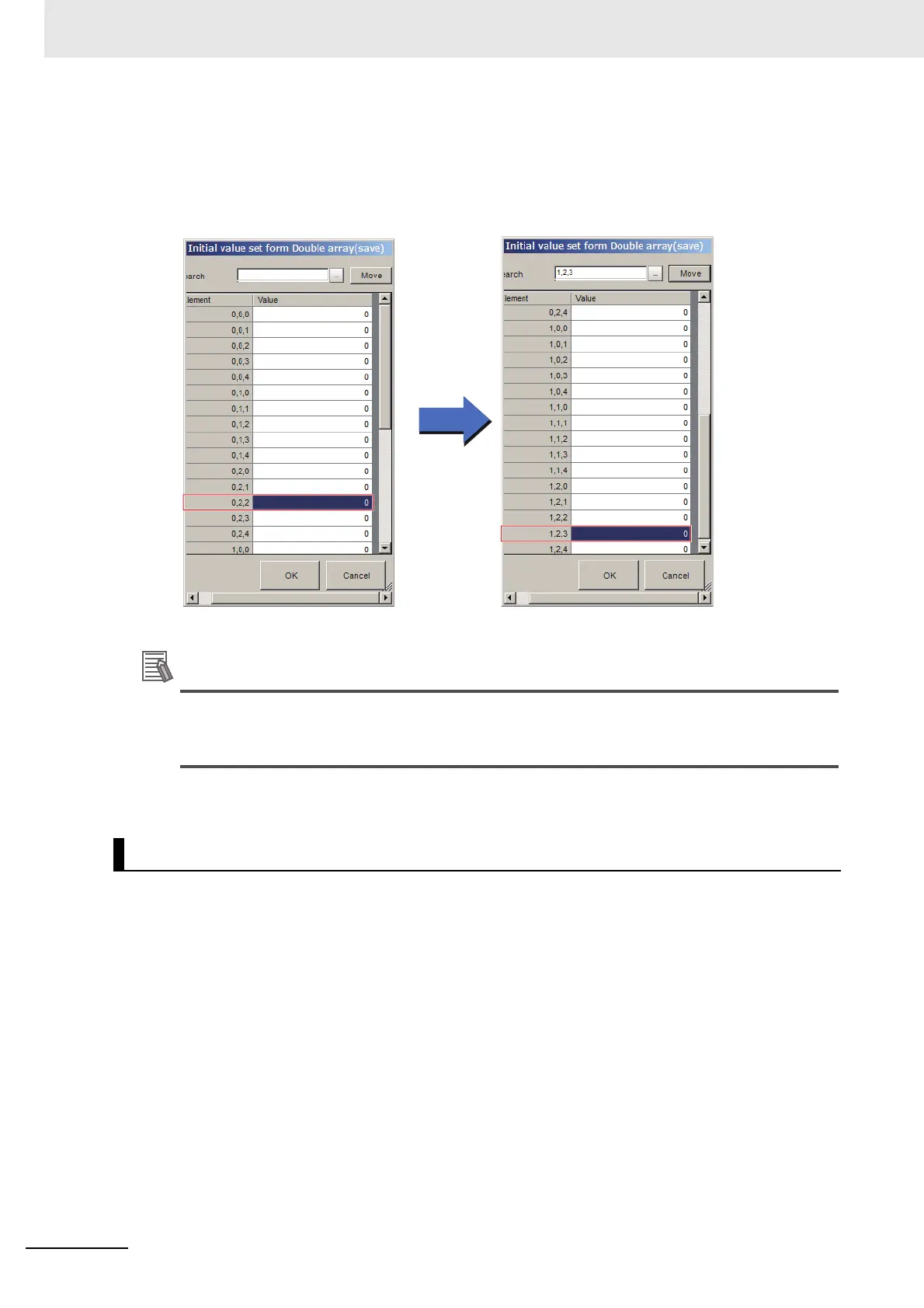

element number searched. The following example is that the number of one-dimensional ele-
ment number is “1”, the number of two-dimensional elements is “2”, and the number of three-
dimensional elements is “3”.
4 Click the cell to enter the initial value.
The following operation also enables initial values to enter into cells in the “Value” column.
• Drag the scroll bar of the “Initial value set form” dialog box for the three- or more dimensional
array type to find a cell to set the initial value. Click the cell to enter the initial value.
5 Click [OK] to end the input.
Non-array Type Variables:
1 On the Edit item tab area in the Edit flow tab screen, click [Scene variable] tab or [System vari-
able] tab.
The Scene variable tab screen or the System variable tab screen is displayed.
2 On the Variable list area, select a variable name to edit.
Editing Values
