5 - 51
5 Creating Measurement Scenes
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
5-5 Using Variables to Edit the Flow [TDM Editor]
5
5-5-4 Using Variables
 Three- or more dimension Array Type Variables:

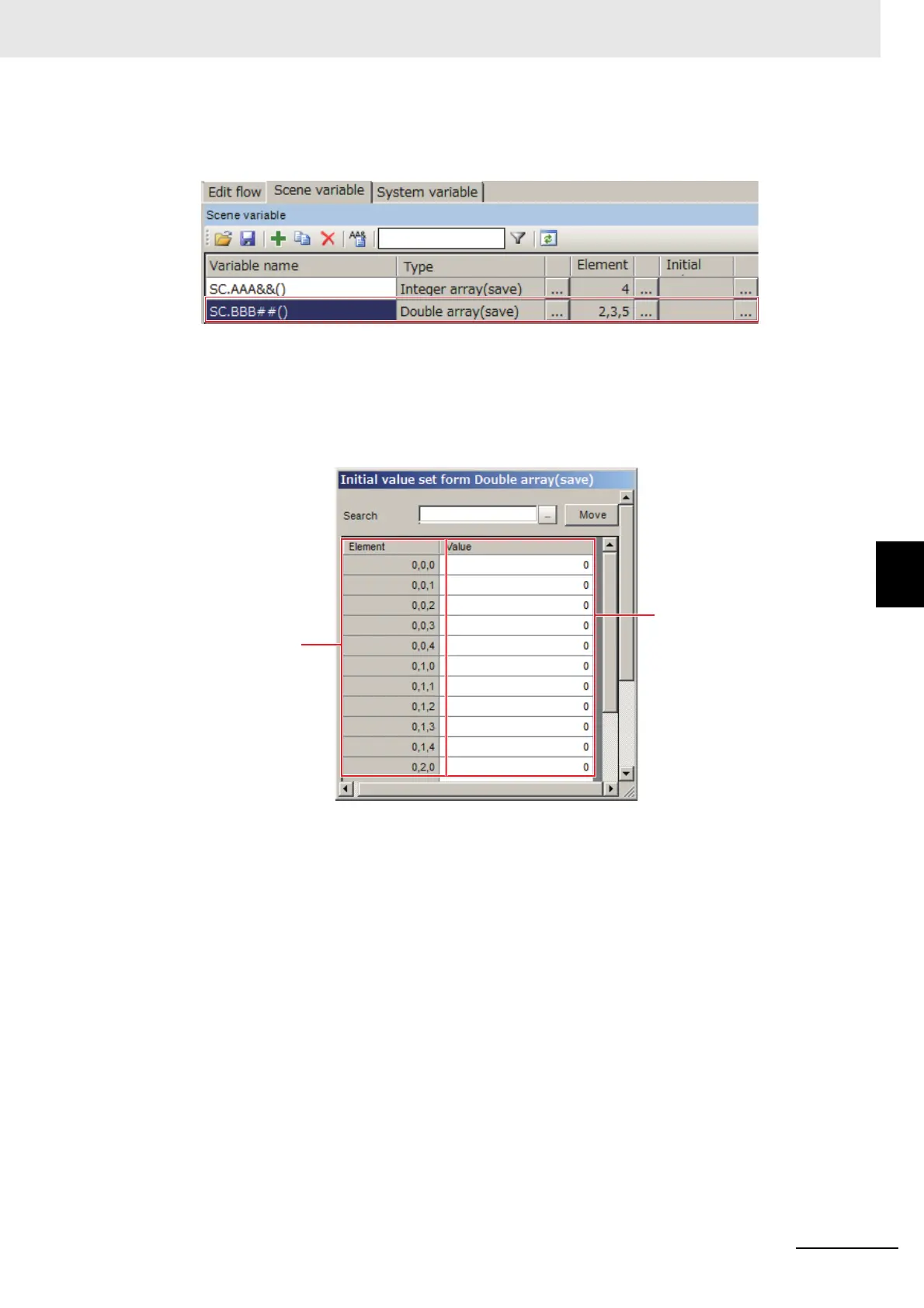

1 Click [...] at the right of the “Initial” column for the selected variable.
The “Initial value set form” dialog box is displayed. The matrix may not fit into the dialog box size
depending on the number of elements. In that case, drag the bottom-right corner of the dialog
box to adjust the dialog box size. In the title bar, the variable type is also displayed.
The following example is that the number of one-dimensional elements is “4”, the number of
two-dimensional elements is “5”, and the number of three-dimensional elements is “6”.
2 Enter an element number to set the initial value in the “Search” input text box by the format dis-
played on the “Element column”.
Each element in the “Element column” is comma-delimited. (One-dimensional element number,
Two-dimensional element number, Three-dimensional element number).
Element column
Value column
