5 Creating Measurement Scenes
5 - 50
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
 One- or Two-dimension Array Type Variables:
1 Click [...] at the right of the “Initial” column for the selected variable.

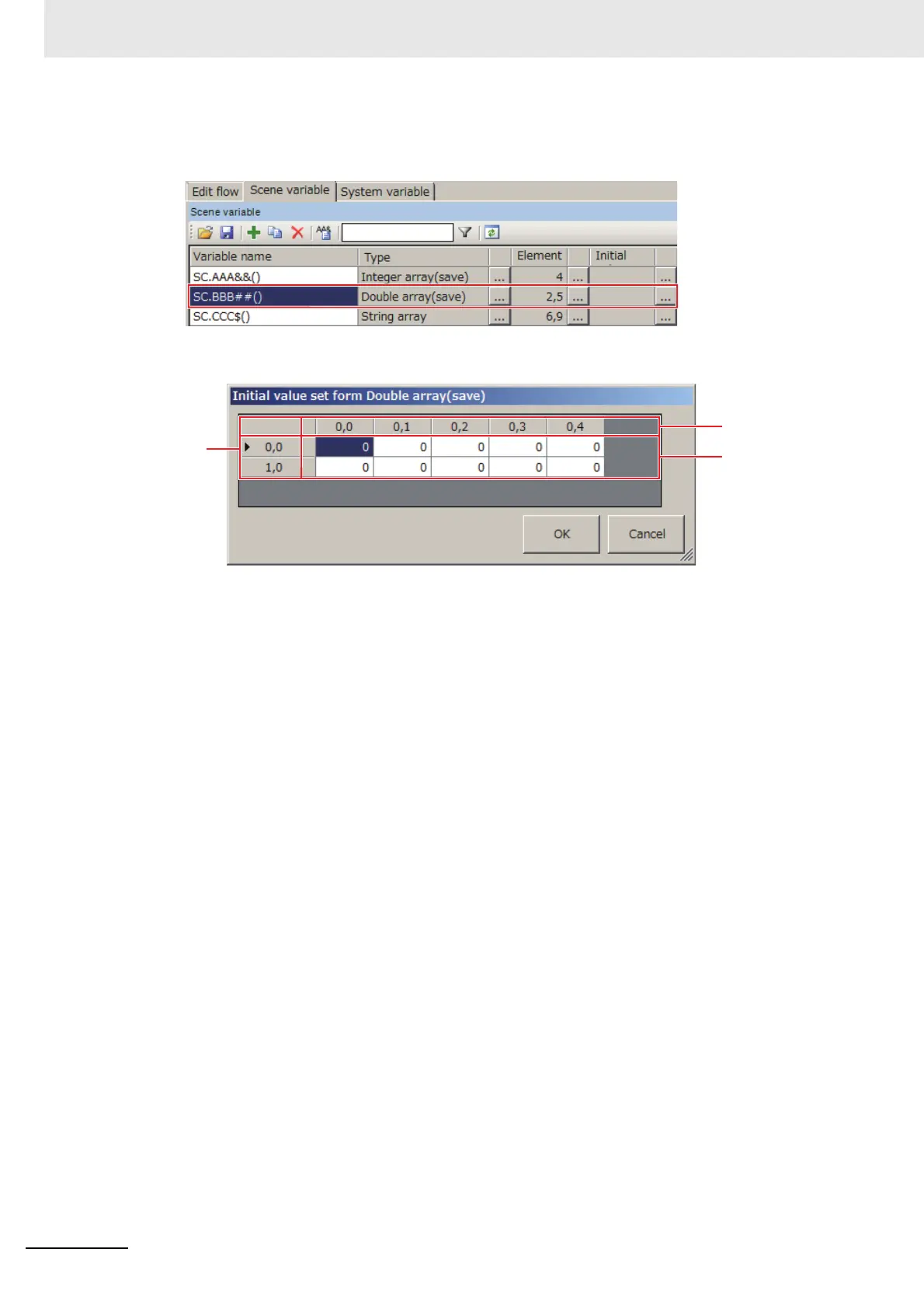

The “Initial value set form” dialog box is displayed. The following example is that the number of
one-dimensional elements is “2” and the number of two-dimensional elements is “5”.
The matrix is displayed according to the number of elements in one-dimensional and two-
dimensional. The matrix may not fit into the dialog box size depending on the number of ele-
ments. In that case, drag the bottom-right corner of the dialog box to adjust the dialog box size.
2 Click a value cell on the matrix to directly enter the initial value for the array element.
When an array element is not displayed in the dialog, drag the scroll bar to find the array ele-
ment.
3 Click [OK] to end the input.
One-dimensional
element index
Two-dimensional
element index
Value cell
