If the [Logging priority] is set to [Logging] (default), all target images are measured are logged. This
may extend the processing time by the time that is required to generate the image files.
The method that is used to calculate the measurement interval that allows logging without affecting the
processing time is described below.
 Measurement Interval Conditions
The measurement interval must satisfy the following condition.
• Processing time: The time that is displayed in the upper left corner.
• Image logging time: The time that is required to generate and save a single image file.
• Example:
If the processing time is 100 ms and the image logging time is 150 ms, set the measurement inter-
val to at least 250 ms.
Important
[Standard] is selected for Operation Mode.
In Standard (Operation) mode, images can be logged while measurement is in progress.
The measurement interval must satisfy the following condition.
Image logging time < Measurement interval
•Example:
If the processing time is 100 ms and the image logging time is 150 ms, set the measure-
ment interval to at least 150 ms.

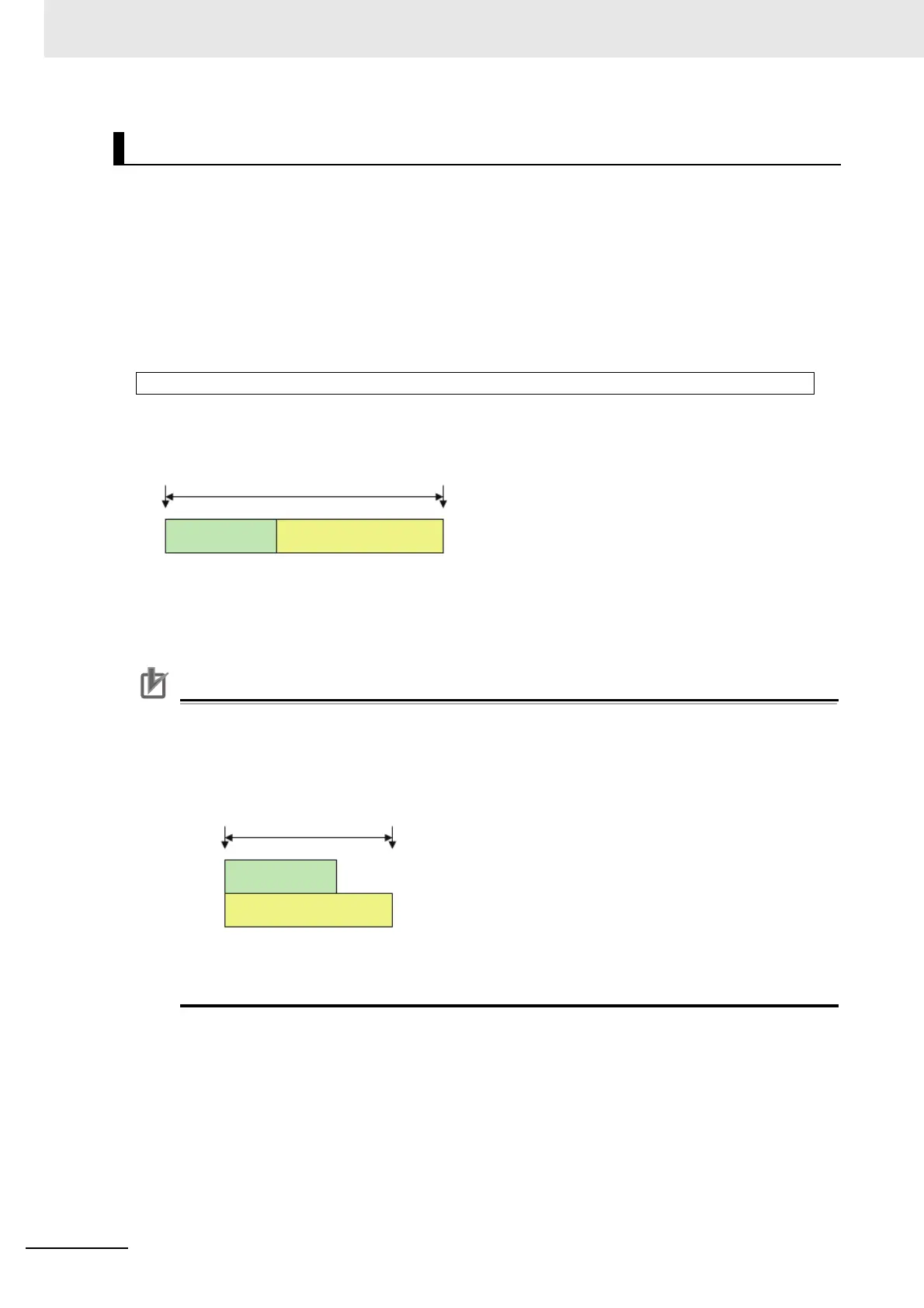

Calculating the Measuring Interval [Logging Priority Mode]
Processing time + Image logging time < Measurement interval
Measurement interval
Processing time Image logging time
Processing time
Image Logging
Measurement interval
