Omron fh-1 series User Manual

7 - 15
7 Increasing/Switching Measurement Scenes
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
7-6 Increasing the Number of Scenes in a Group to more than 128 Scenes [Conversion Scene Group
Data Tool]
7
4 Edit the scene in the converted scene group.
Click the [>>] button to copy the conversion source to the conversion destination. Click the [<<]
button to copy the conversion destination to the conversion source.
When you have done editing, click the [>>] button. The [STEP 3] dialog box is displayed.

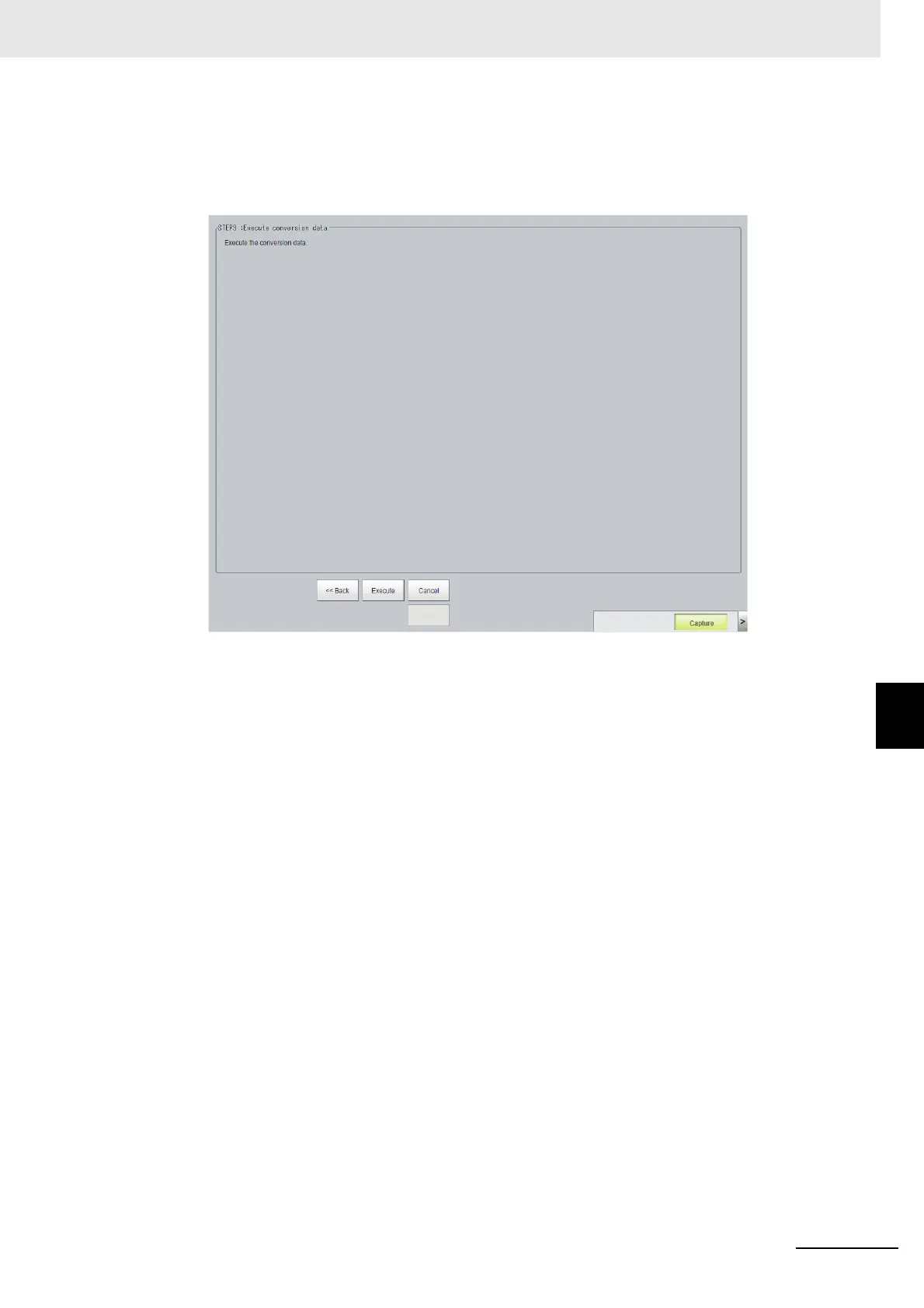

5 Specify the destination for the converted file, and then click the [Execute] button.
A progress bar is displayed and the conversion is executed.

Omron fh-1 series Specifications

General

Brand	Omron
Model	fh-1 series
Category	Machine Vision Systems
Language	English
