8 - 7
8 Setting Windows
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
8-1 Windows
8
8-1-3 Main Window (Layout 0): Adjustment Window (Default)
5. Image Pane
This pane shows the measured image.
It also displays the selected processing unit name or the [Define displayed unit].

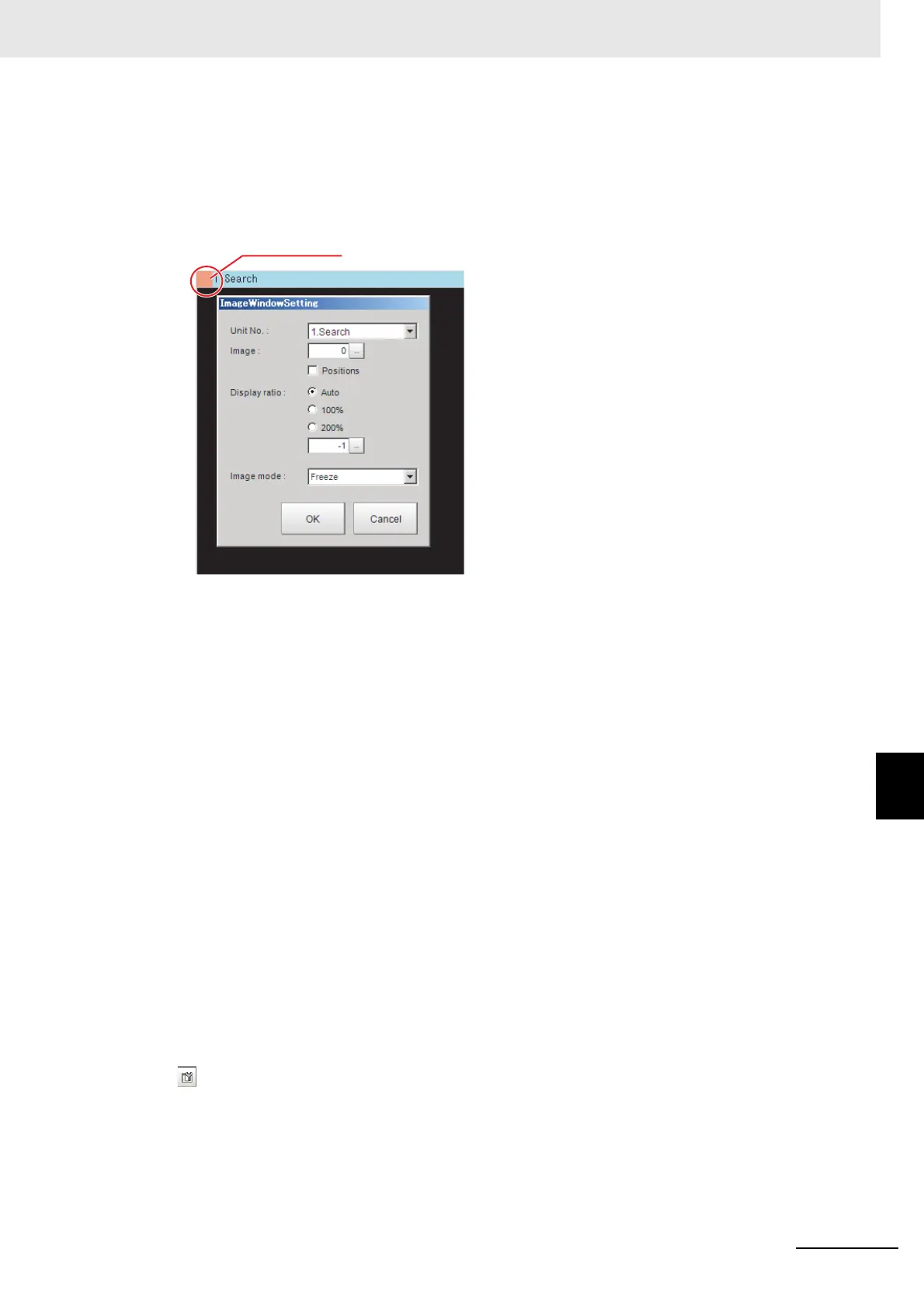

• Click on the left side of the processing unit name to display the Properties Dialog Box for the
Image Pane.
On this dialog box, you can change the image mode and other contents that are displayed in the
Image Display Pane.
Refer to 3-2-7 Changing the Image Mode and Other Display Contents on page 3-24.
• Click the upper corner of the Image Display Pane to display the [Add Image Window] button and
[Alignment] button. This allows you to display more than one pane side by side.
Refer to 8-3-1 Arranging Window Elements (Layout Modification) on page 8-14.
6. Detail Result Pane
This pane displays the results of test measurements.
The floating point number is rounded off to four digits after decimal point.
The floating point numbers that are saved as data will not be rounded off.
7. Flow Display Pane
This pane displays the contents of the measurement process (the processing that is set in the mea-
surement flow).
Click the icon of any processing item to display the Properties Dialog Box to set processing item
parameters and other settings.
You can use the following buttons to move to the next processing unit with an NG judgement result.
[1st NG unit]: Moves to the first processing unit with an NG judgement.
[Next NG unit]: Moves to the next processing unit with an NG judgement.
[ ] "Property setting" button: Displays the property setting window of selected processing unit.
Click on the left side of the processing unit name.
To Next Page
