 Restoring a Layout to its Default Settings

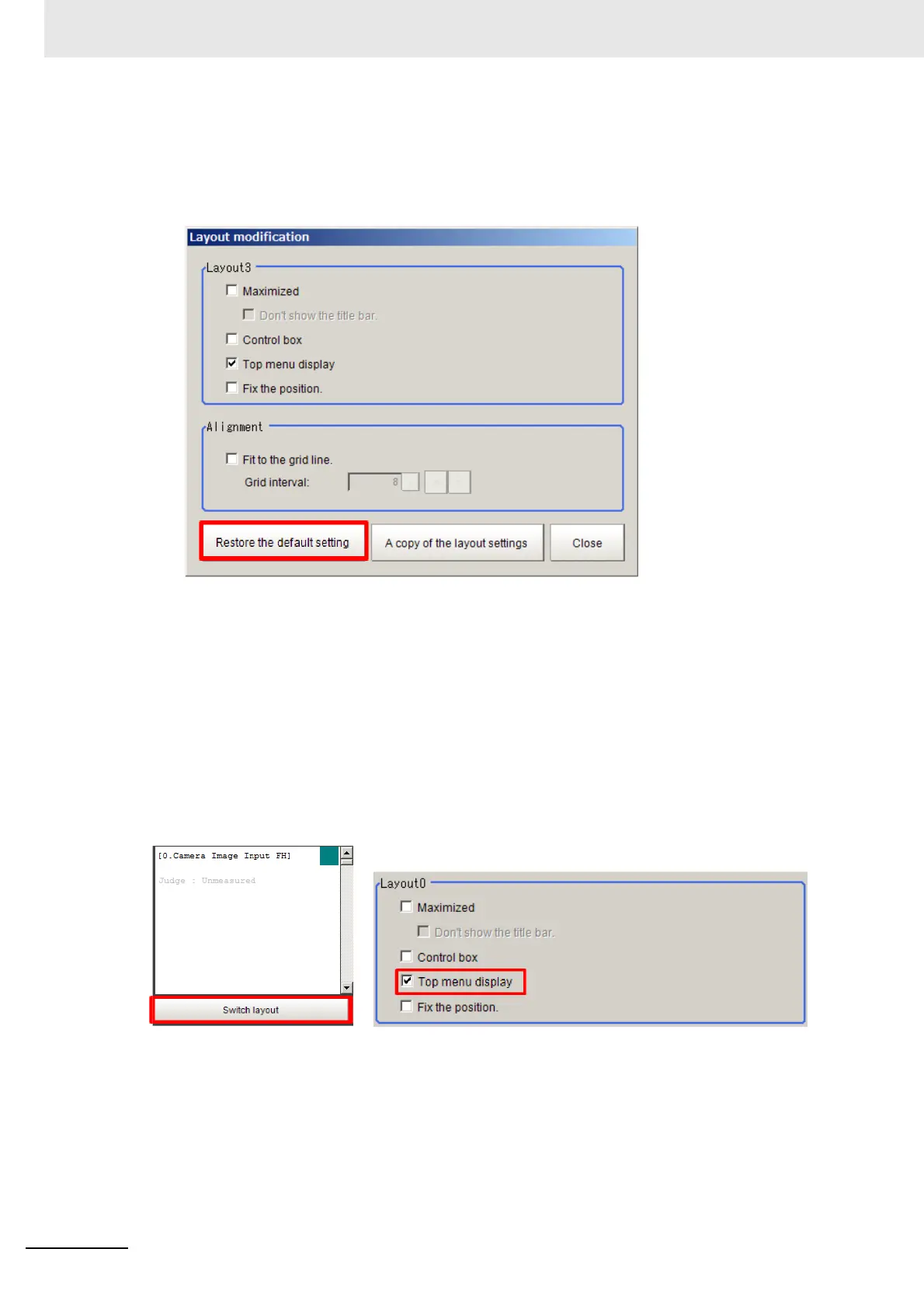

1 Select the layout number to restore to its default settings
2 Click [Layout] in the menu or right-click on the window part and select [Layout modification] from
the dropdown menu or shortcut menu displayed. “Layout modification” dialog box is displayed.
3 Click [Restore the default setting].
 Exiting Layout Modification Mode
1 Click [Layout] in the menu or right-click on the window part and select [Layout ended] from the
drop down menu or shortcut menu displayed. Close Layout Modification Window and return to
the Main Window.
 Changing the Layout Number from a Layout with a Hidden Top Menu
When you click [Layout ended] on a layout where the top menu display is hidden, the [Switch layout]
button will automatically appear under the Detail Result Pane. Click the [Switch layout] button and
switch to a layout number where the “Top menu display” option is selected in the “Layout modifica-
tion” dialog box.
