8 Setting Windows
8 - 34
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
5 The size and position of the image panes can be adjusted by dragging them.
To delete an image pane, click the button at the upper right corner of the image pane.

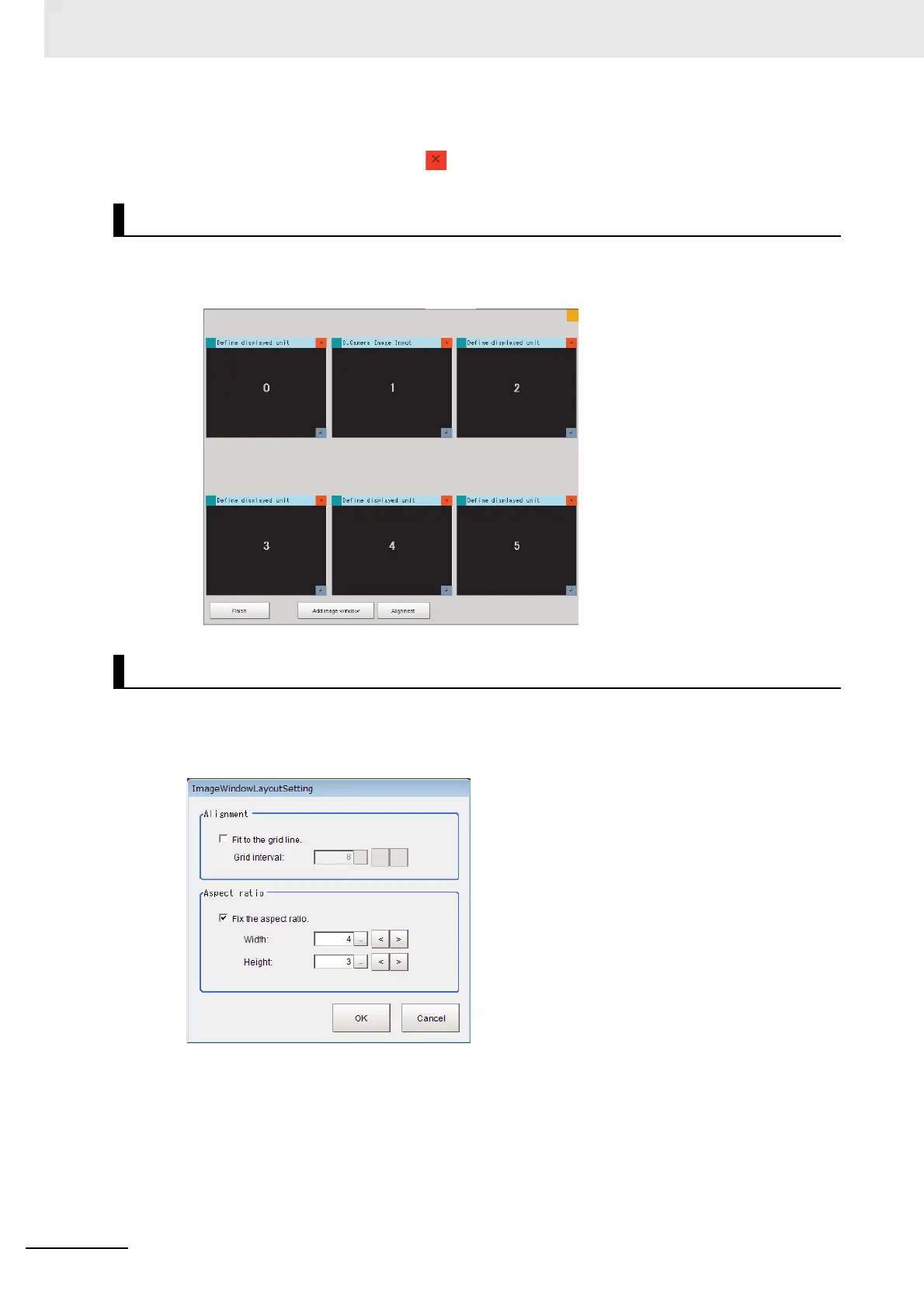

Click [Alignment]. Then, image panes will be displayed in the order of the image pane number.
Example: When aligning image pane 0 to 5
Image panes can be moved and scaled up/down by fitting to the grid. The aspect ratio of the image
pane can be fixed.
1 Click [Setting] to adjust settings shown in the following image.
Displaying Multiple Images Aligned at Even Interval
Showing Grid and Fixing the Aspect Ratio of the Image Pane
