8 - 69
8 Setting Windows
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
8-4 Creating a Custom Dialog Box [Custom Dialog Functions]
8
8-4-2 Custom Dialog Tool

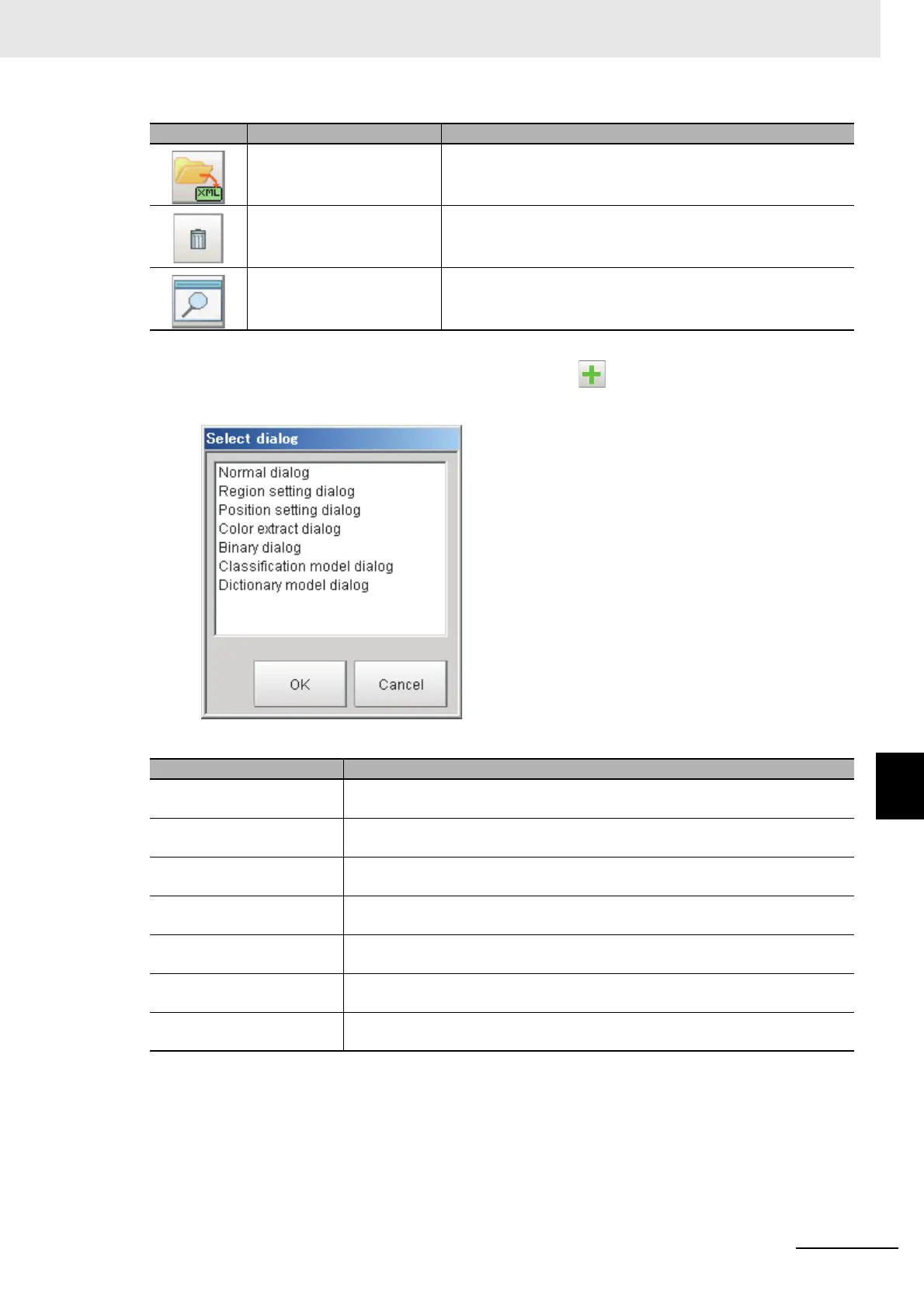

2 In the list of dialog boxes, click the [Add dialog] button ( ).
The [Select dialog] list is displayed.
The types of dialog boxes that you can create are listed below.
3 Select the kind of dialog box to add, and then click the [OK] button.
The selected dialog box is added to the Dialog Box List Display Area.
Select the added dialog box from the dialog box list. The settings for the selected dialog box are
displayed in the Edit Dialog Box Area while an image of the dialog box is displayed in the Pre-
view Area.
4 Edit the settings for the dialog box. Some settings are common for all dialog boxes, and some
are specific to individual dialog boxes.
Load from dialog setting file Loads the dialog box from the specified dialog box settings file
(extension.xml) into the list of dialog boxes.
Initialization Initialize scene settings.
Preview Displays a working preview of the selected dialog box for testing.
Dialog kind Description
Normal dialog This is a custom dialog box that you create with numeric input boxes, buttons,
and other items.
Region setting dialog This dialog box sets the measurement region for a processing item, such as the
region setting for Search and Defect.
Position setting dialog This dialog box sets the reference of a processing item, such as the reference
position for Search and Edge Position.
Color extract dialog This dialog box sets the color of a processing item, such as the color setting in
Edge Position.
Binary dialog This dialog box sets the binary setting of a processing item, such as the binary fil-
ter in Labeling.
Classification model dialog You can register multiple models for this dialog box, such as for the model regis-
tration of the Classification processing item.
Dictionary model dialog You can register multiple models for this dialog box, such as for the model regis-
tration of the Model Dictionary processing item.
Icon button Function Description
