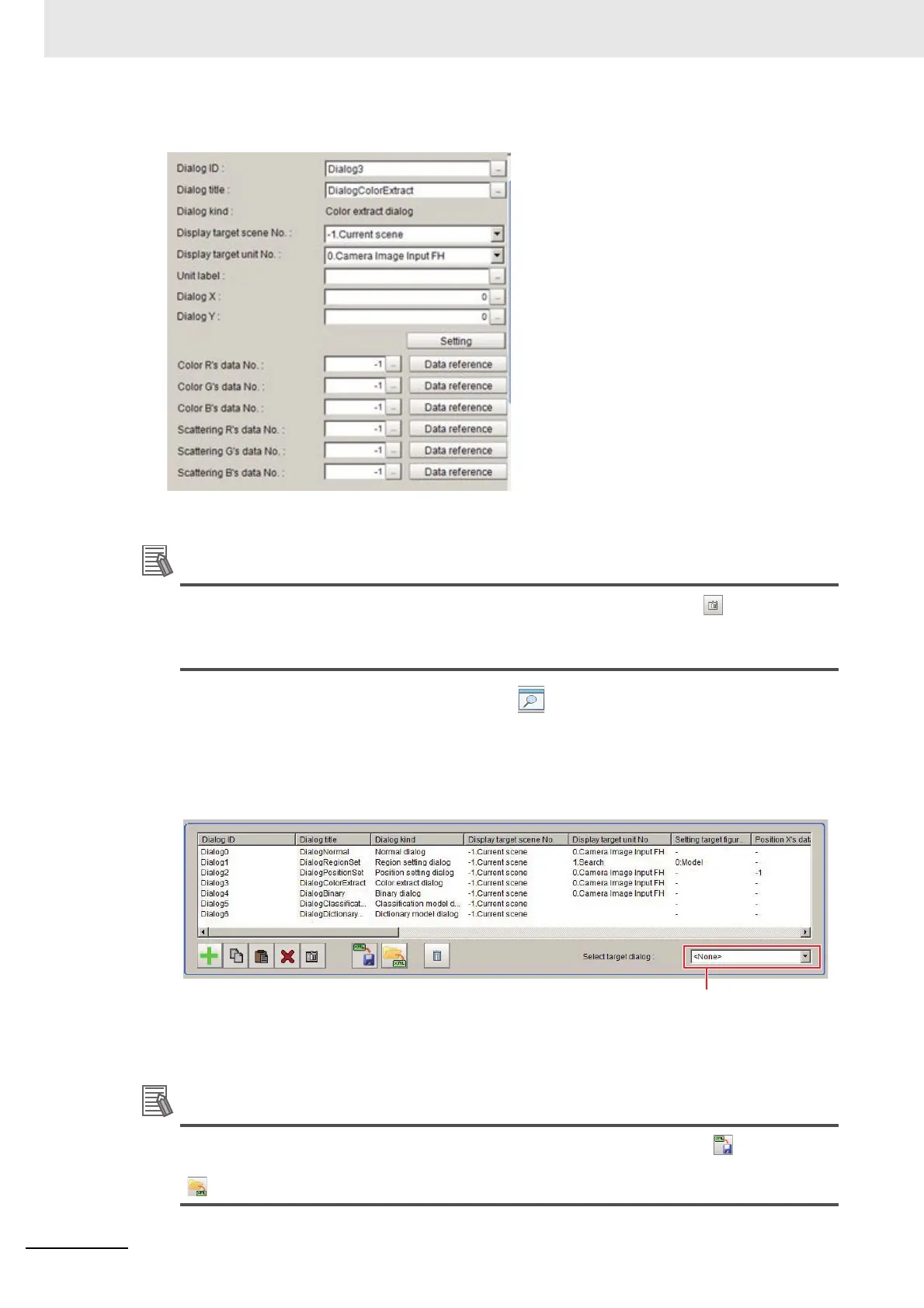

• Example: Dialog Box Properties Display Area for Color Extract Processing Item
Refer to Settings in the Dialog Box Properties Display Area on page 8-71 for details on individual
settings.
Additional Information
If [Dialog kind] is set to [Normal dialog], click the [Edit normal dialog] button ( ) to edit the dia-
log box.
Refer to Editing a Normal Dialog Box on page 8-73.
5 Edit the settings, and click the [Preview] button ( ) as necessary to confirm the edited dialog
box.
6 Use the [Select dialog] list to specify the ID of the dialog box to open.
To open the dialog box that you specified in the [Select dialog], select [Custom dialog] from the
[Tool] menu.
7 When you have finished editing, click the [OK] button to exit the List of Dialog Box Display Area.
8 Click [Data save] on the Main Window to save the settings.
Additional Information
To save the settings individually, click the [Save to dialog settings file] button ( ) to save the
settings to a file. The saved file can be loaded with the [Load from dialog setting file] button
().
Select the target dialog box.
