8 - 73
8 Setting Windows
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
8-4 Creating a Custom Dialog Box [Custom Dialog Functions]
8
8-4-2 Custom Dialog Tool
• Binary Dialog Box Setting Region
If [Dialog kind] is [Normal dialog], you can freely place objects, such as numeric entry boxes and but-
tons, anywhere in the Edit Dialog Box Area.
1 In the Dialog Box List Display Area, select a dialog box that is of the normal dialog box type.
2 Click the [Edit normal dialog] button ( ).
The [Edit Dialog] area is displayed.
• Edit and Control Buttons for the Edit Normal Dialog Box Window.
Setting item
Setting value
[Factory default]
Description
Binary upper's data
No.
−1 to 999999999
[−1]
Specifies the upper data number for the unit to use for
binary filtering.
Binary lower's data No. −1 to 999999999
[−1]
Specifies the lower data number for the unit to use for
binary filtering.
Binary reverse's data
No.
−1 to 999999999
[−1]
Specifies the reverse data number for the unit to use for
binary filtering.
[Data reference] button
---
You can select the data number directly to enter it, or you
can enter it with the [Data reference] button.
Click the [Data reference] button to select the target data
in the [Data reference] dialog box.

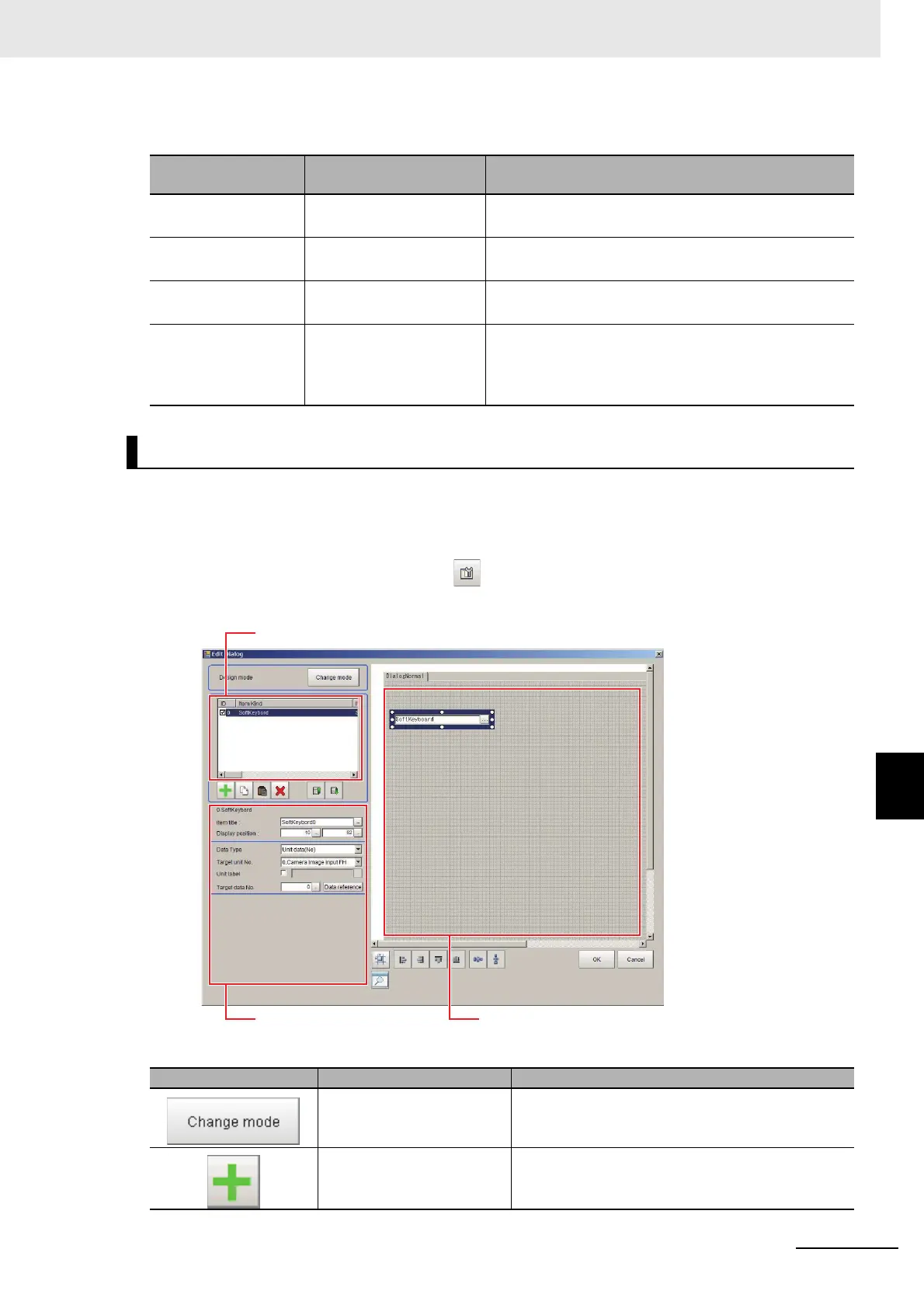

Editing a Normal Dialog Box
Icon button Function Description
Change mode Switches between the Design Pane and the List
Pane.
Add item Adds an item. The [Select item] dialog box is dis-
played. Click the [OK] button to add the selected item
to the end of the list.
Item List Display Area
Item Properties Display Area Design Pane (in Design Mode)
