9 Saving/Loading Data
9 - 40
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)

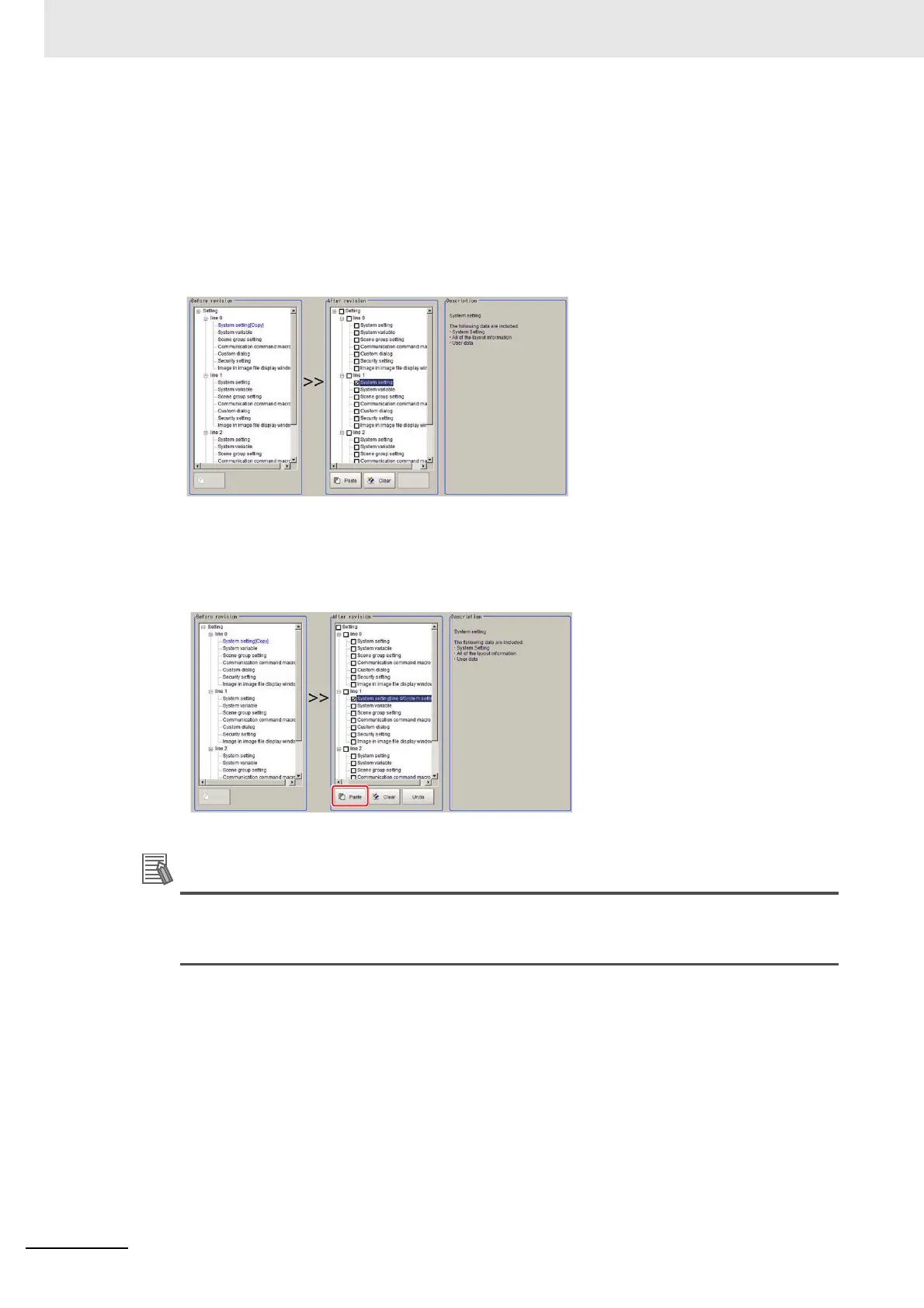

3 In the After revision area, the setting data to be pasted will have its check box checked.
In the following situations, the [Paste] button will be grayed out and a paste operation will not be
possible. Verify the setting data in the After revision area.
• If the setting data for the same line as the copy setting data is checked.
• If the checked setting data differs from the setting data selected for copy.
The check boxes for the selected setting data in the After revision area will be cleared.
Refer to Clearing setting data on page 9-41.
4 Click [Paste].
The font color of the checked setting data will change to blue.
If the paste operation was done by mistake, click [Undo].
The setting data will revert to the status described in Step 3.
5 To copy other setting data, repeat Step 1-4.
Additional Information
If there is insufficient memory in the sensor controller, the tool will be launched with [Apply
immediately] checked.
Refer to Launching the Line Maintenance tool on page 9-36.
