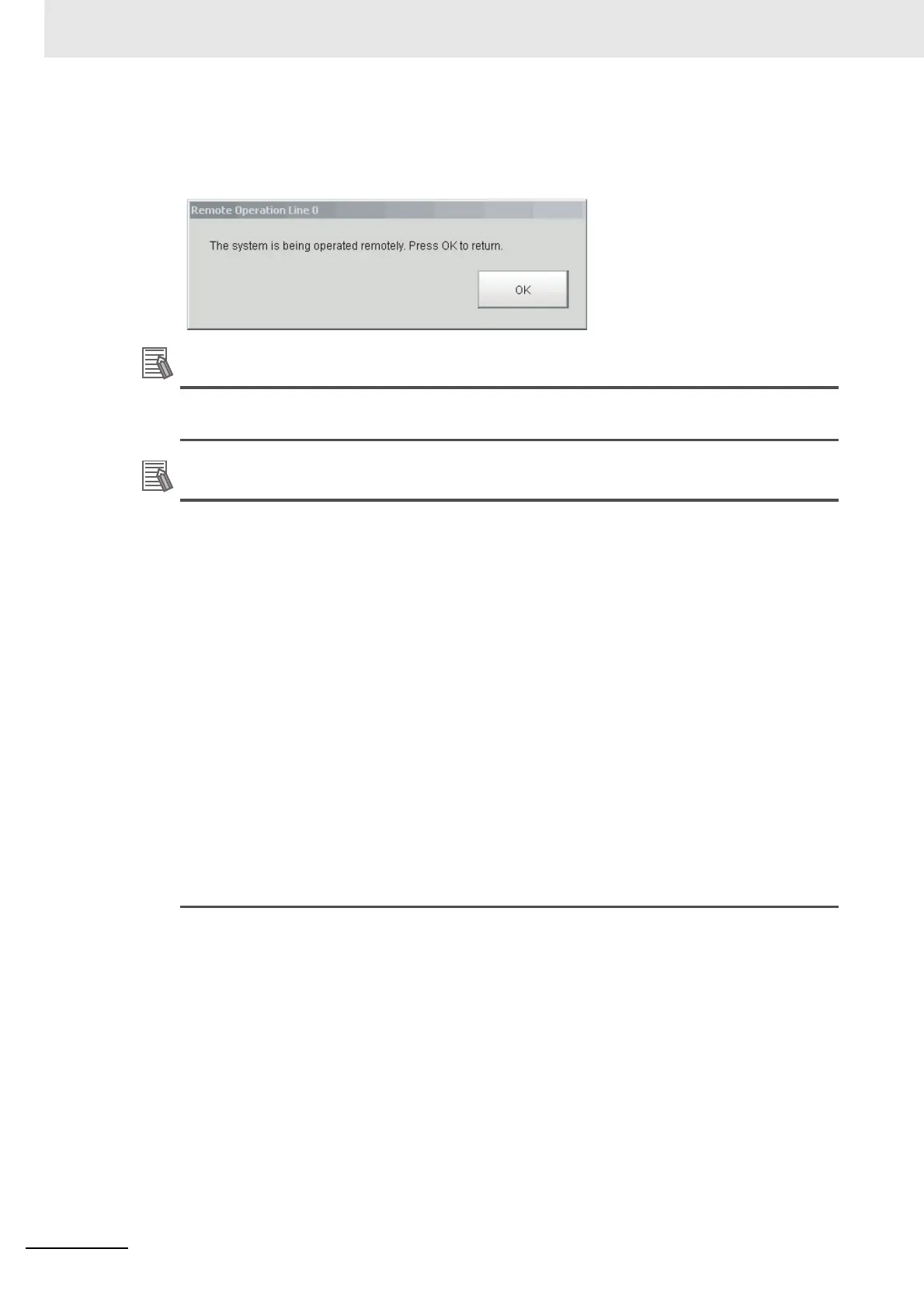

7 Click [Start]. In the FH/FZ5 series, A "Remote operation time" message is displayed on the sen-
sor controller when remote operation is established.
In the above state, you can not operate the Sensor Controller.
When the security setting has been set on a Sensor Controller to connect, inputting the pass-
word for a security setting item is requested on the Remote operation window.
When either the remote operation PC or the Sensor Controller is switched to Layout 8 by the
layout switching, the operation on the Sensor Controller is also enabled during the remote
operation. Note the followings when using this feature:
• In the layout switching, switch either the remote operation PC or the Sensor Controller to
Layout 8, not both. If both of them are switched to Layout 8, only the remote operation PC
can operate the Sensor Controller during the remote operation.
• A layout can be switched to Layout 8 even during the remote operation. After switching the
current layout to Layout 8 with the remote operation PC, close the remote operation dialog
with the Sensor Controller. This allows you to operate the Sensor Controller directly while to
continue the remote operation. To exit the remote operation in this state, terminate the
Remote Operation Tool.
• In Layout 8, an error dialog will not be displayed even if an error occurred. Instead, an error
string is displayed on the Error Pane. When an error occurred, check it on the Error Pane.
• In Layout 8, The Layout Modification Mode can handle the following panes only. When using
panes other than them, use a layout other than Layout 8 for the normal remote operation.
• Flow Display Pane
• Image Pange
• Judgement Pane
• Error Pane
