Omron fh-1 series User Manual

10 Advanced Usage
10 - 58
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
• Easy Mode
The Calibration Execution Flag and movement in actual coordinates must be set in advance in the
PLC Master Calibration settings dialog box.

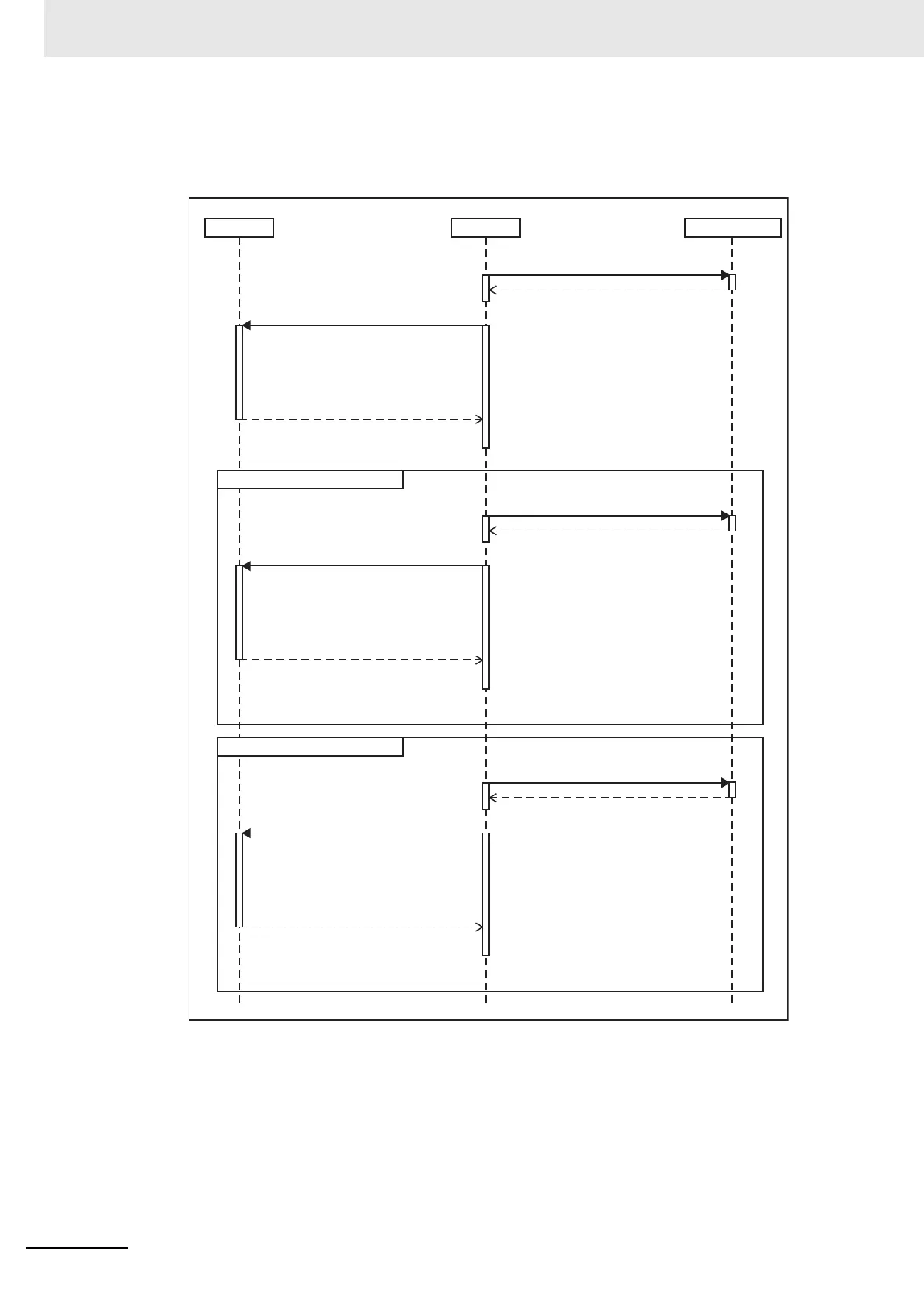

FH/FZ5 PLC External device
2: Execution of the measurement command
Loop (Iterations ≤ Number of parallel movements)
4: Execution of the measurement command
Loop (Iterations ≤ Number of rotations)
6: Execution of the measurement command
1: An origin return is performed, and the calibration
workpiece is moved to the reference position.
3: Perform a parallel move of the calibra-
tion workpiece by the required amount.
5: Rotate calibration workpiece the
required amount.
