3 Basic Operations
3 - 16
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
(b) [Edit]

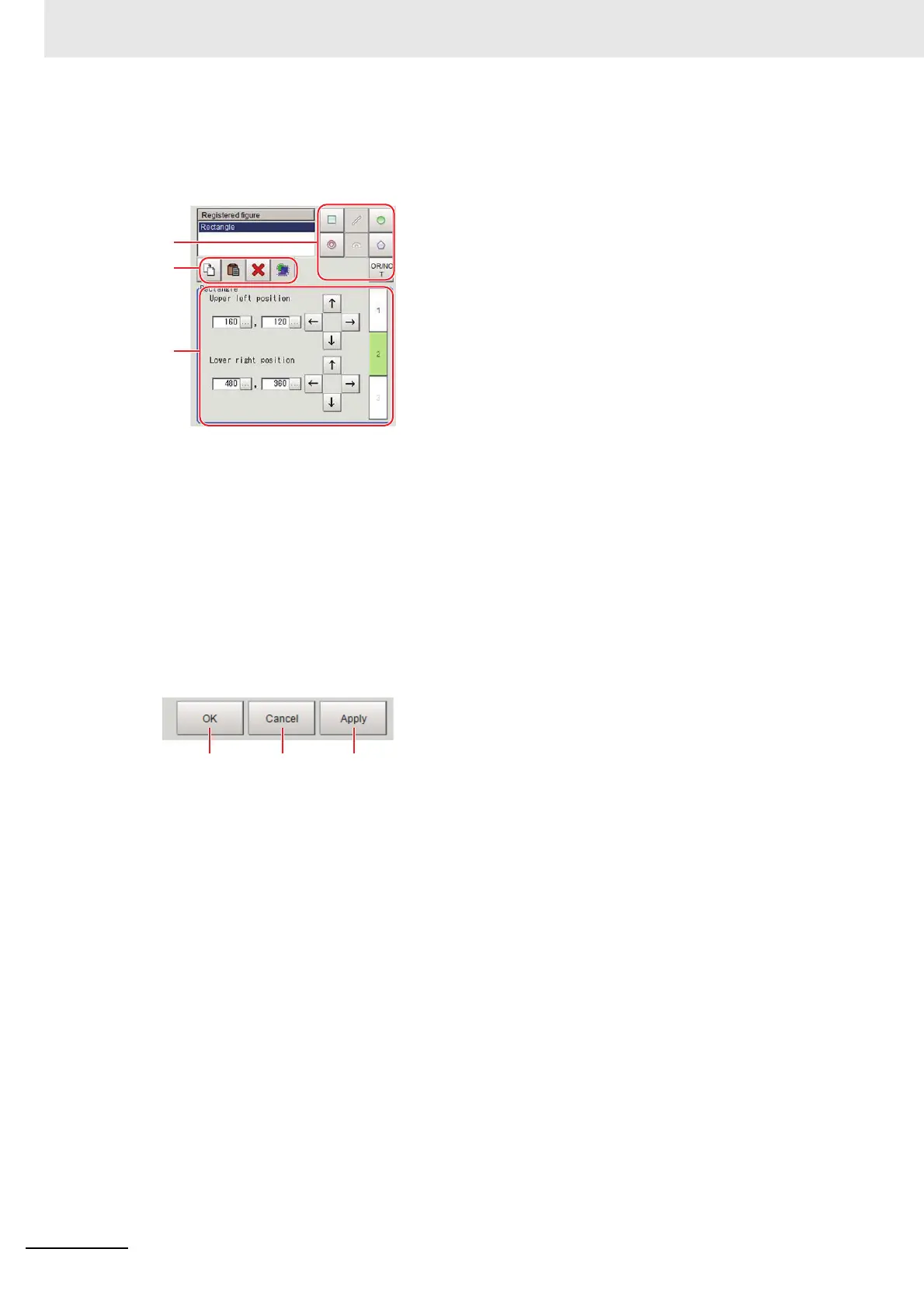

You can edit on the Properties Dialog Box when related figures are set. By clicking [Edit] button, the
following figure editing tool will be displayed.
(1) Drawing tool buttons
Sets up objects, such as figures and text. The number and type of objects available is differ-
ent depending on the applicable setting (ex. "Result display", "Model", "Region setting").
(2) Object editing buttons
Buttons for editing objects
(3) Details
Shows the details of the selected figure. Specify the object coordinates or radius. Tapping
[] or [] will display the items currently not displayed.
(c) Each buttons
These button are displayed under the figure editing tools.
(1) [OK]
The Model is registered. Returns to the previous menu.
(2) [Cancel]
Changes are discarded. Returns to the previous menu.
(3) [Apply]
Updates the figure without leaving edit window.
(d) Zoom Browser Area
Magnifies the Image Display area by the selected magnification factor.
Refer to 3-2-5 Using the Zoom Function on page 3-14.
3
2
1
321
