3 - 23
3 Basic Operations
Vision System FH/FHV/FZ5 Series User’s Manual (Z365)
3-2 Basic Knowledge about Operations
3

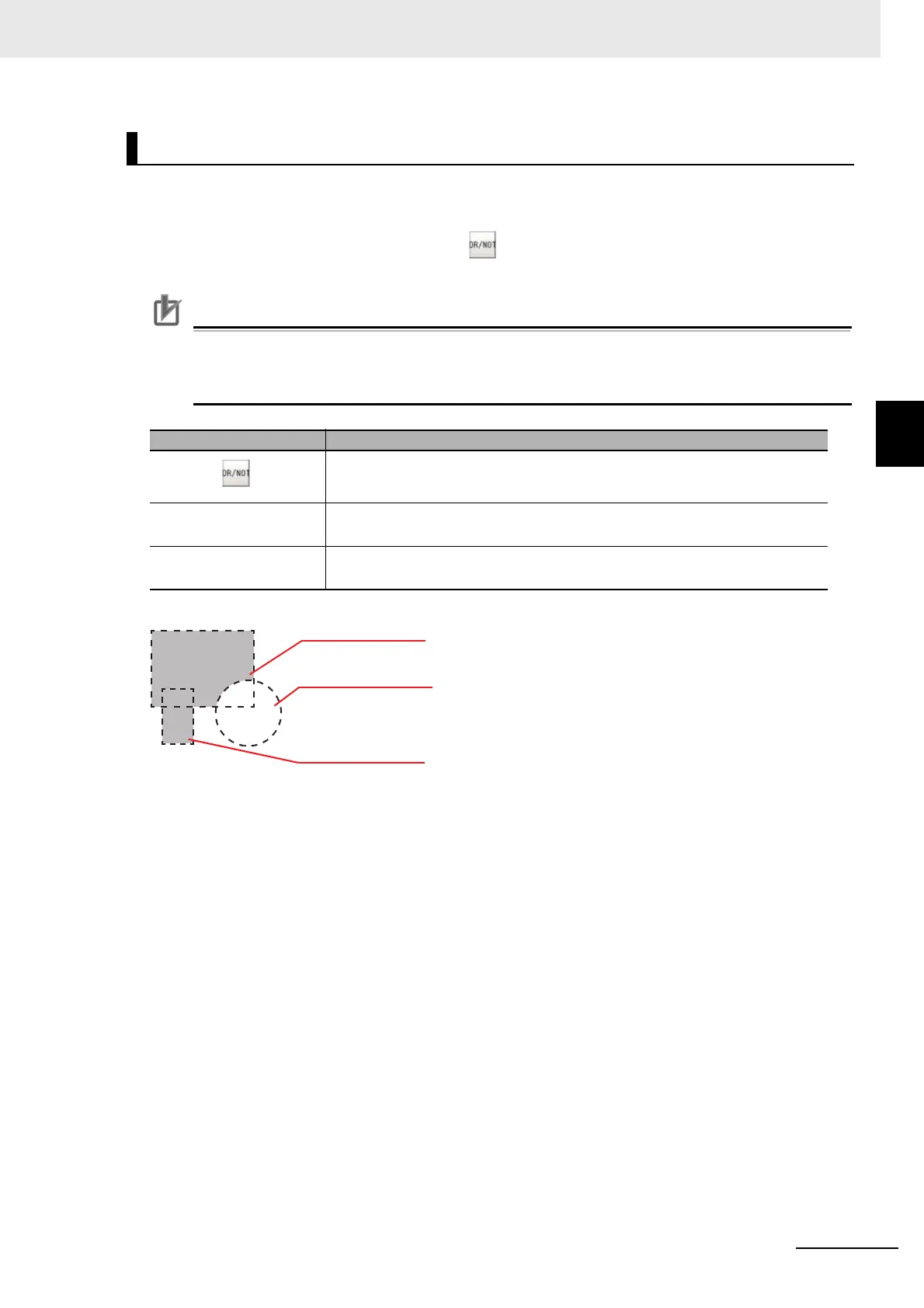

3-2-6 Setting Figures
The OR setting/NOT setting is used when multiple images are combined.
Areas with complex shapes can be drawn through combining figures, and unnecessary parts can be
excluded form the area. Each time [OR/NOT] ( ) is tapped, the setting of the selected figure toggles
between OR and NOT.
Important
• Images with only the NOT setting cannot be drawn.
• For regions where two or more graphics are overlapped, the latest NOT/OR setting overrides
the earlier settings.
(Example) The grey parts are measurement regions.
About OR Setting/NOT Setting
Item Description
OR/NOT ( )
Used when drawing a model or a region
Switching between OR and NOT occurs each time the button is tapped.
OR The selected figure is displayed with a dotted line in an OK color.
When drawing multiple figures, the entire area is registered as one region.
NOT The selected figure is displayed with a dotted line in an NG color.
The area outside of the NOT image is registered as a region.
Image 1 (drawn by OR)
Image 2 (drawn by NOT)
Image 3 (drawn by OR)
