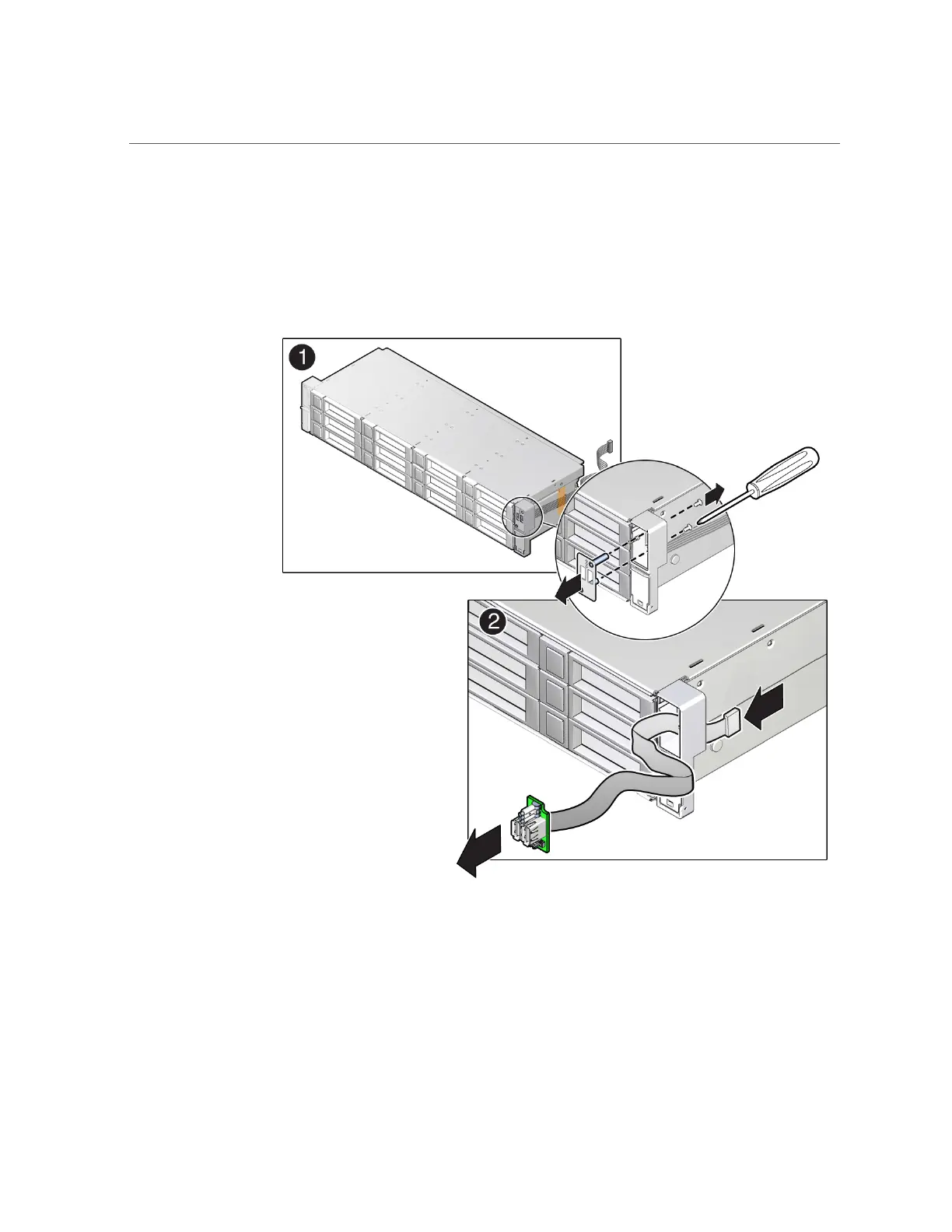

Remove the Right LED/USB Indicator Module
a.
Remove the two No. 2 Phillips screws that secure the LED/USB indicator
module to the server front panel [1].
If present, remove the capping tape that secures the cable to the side of the disk cage
assembly.
b.
Remove the LED/USB indicator module from the server front panel [2].
