Install the Right LED/USB Indicator Module
6.

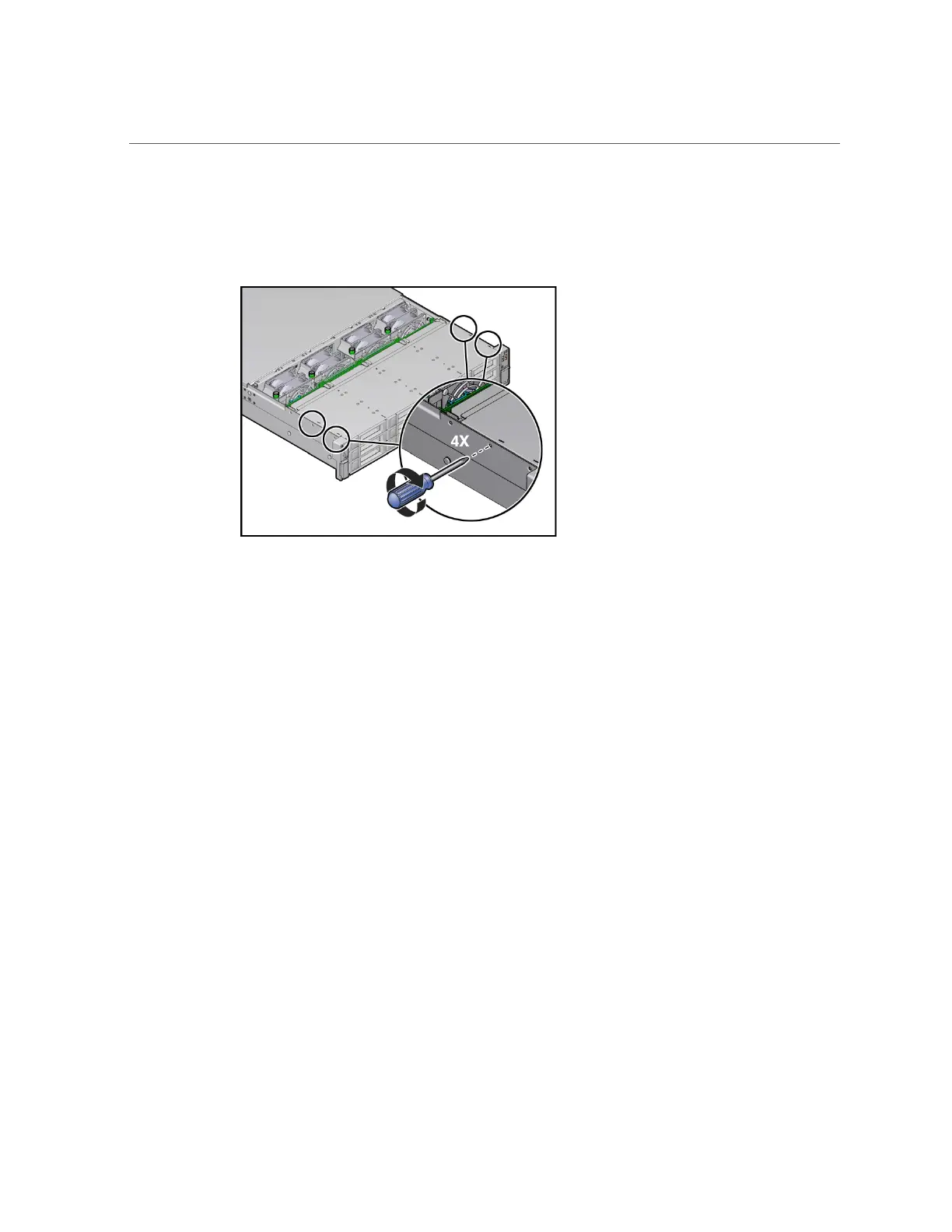

Install the four No. 2 Phillips screws (two on each side of the chassis) that
secure the disk cage assembly to the server chassis.
7.
Install the server front fan assembly door.
See “Install the Fan Assembly Door” on page 163.
8.
Return the server to operation.
a.
Install the server top cover.
See “Install the Server Top Cover” on page 161.
b.
Return the server to the normal rack position.
See “Return the Server to the Normal Rack Position” on page 165.
c.
Reconnect the power cords to the power supplies, and power on the server.
See “Reconnect Power and Data Cables” on page 167 and “Power On the
Server” on page 167. Verify that the power supply AC OK LED is lit.
Related Information
■
“Server System-Level Status Indicators” on page 27
■
“Remove the Right LED/USB Indicator Module” on page 138
144 Oracle Exadata Storage Server X5-2 High Capacity Service Manual • January 2018
